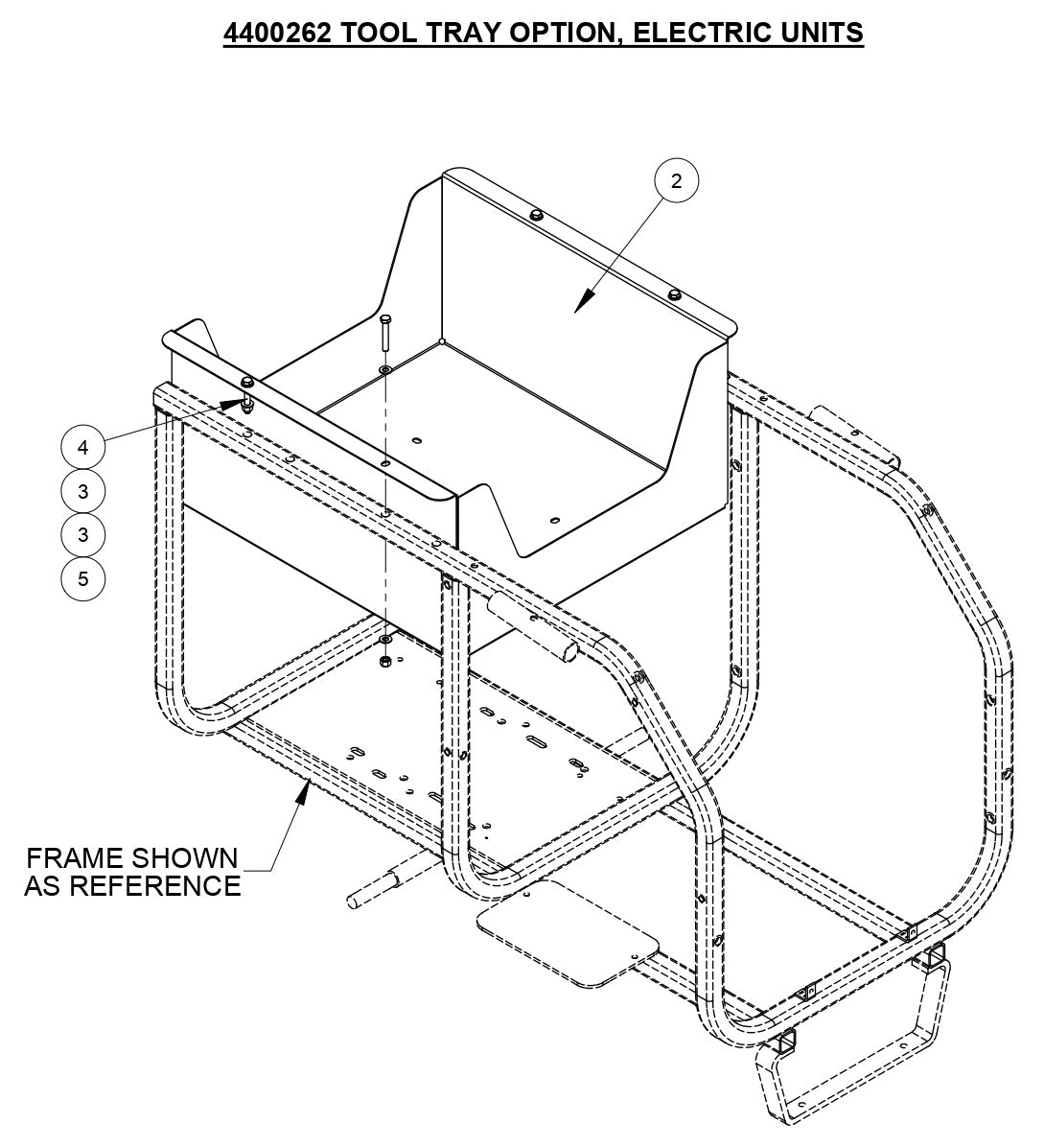

CB15EXL Tool Tray Option Electric Units Assembly Parts

CB15EXL Tool Tray Option Electric Units Assembly Parts

  • CB15 Tool Tray Option, Electric Units
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
4646156 CB-XL Frame Assembly for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$1,926.54
2
4400207 Tool Tray for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$298.98
3
2900022 Flat Washer, 5/16" SAE for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
4
2900494 Cap Screw, Hex Hd., 5/16-18 x 2" for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$3.99
5
2900039 Lock Nut, 5/16-18 Nylon for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.
