CB15EXL Panel Assembly Parts

CB15EXL Panel Assembly Parts

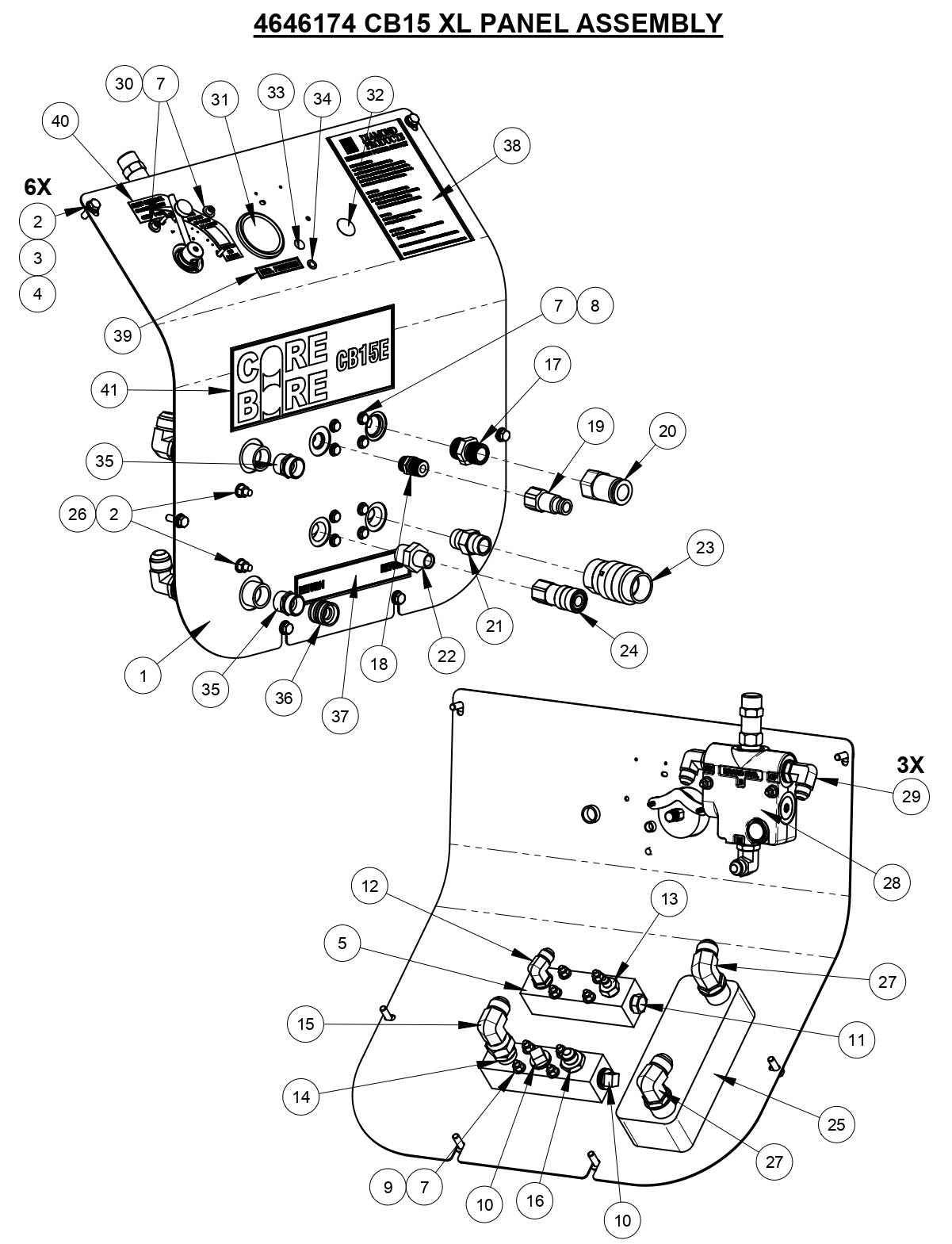

  • CB15 XL Panel Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
4646141 Instrument Panel for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$154.80
2
2900022 Flat Washer, 5/16" SAE for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
3
2900031 Lock Washer, 5/16" Split for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
4
2900138 Cap Screw, Hex Hd., 5/16-18 x 1" for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
5
4646102 Manifold, SAE O-Ring for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$74.56
6
4646101 Manifold, 3/4 NPT for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$76.64
7
2900009 Flat Washer, 1/4" SAE for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
8
2901001 Cap Screw, Hex Hd., 1/4-20 x 2-1/2" for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
9
2900010 Lock Nut, 1/4-20 Nylon for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
10
3200479 Plug, 3/4" NPT Square Head for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$10.63
11
3201434 Plug, 1/2" SAE O-Ring Hex for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$6.99
12
3200285 Elbow, 1/2" O-Ring to 1/2" M. JIC for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$11.84
13
3201291 Adapter, 1/2"M.O-Ring to 1/4" MJIC for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$7.07
14
3200097 Adapter, 3/4" M. JIC to 3/4" M. Pipe for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$10.76
15
3200417 Elbow, 3/4" F. JIC to 3/4" M. JIC for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$22.60
16
3201522 Adapter, 3/4" M. Pipe to 1/2" M. JIC for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$10.04
17
3200330 Adapter, 3/4" M. Pipe to 3/4" O-Ring for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$16.00
18
3200371 Adaptor, 1/2" MPT to 1/2" O-Ring for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$7.80
19
3200105 Nipple, 1/2" Q.D. for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$59.14
20
3200101 Nipple, 3/4" Quick Disconnect for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$129.69
21
3200137 Hex Nipple, 3/4" NPT for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$9.76
22
3200383 Nipple, Hex, 3/4" MPT TO 1/2" MPT for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$17.00
23
3200100 Coupler, 3/4" Quick Disconnect for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$324.72
24
3200104 Coupler, 1/2" Q.D. for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$102.89
25
2400256 Heat Exchanger for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$956.34
26
2900303 Lock Nut, M8-1.25 Nylon Insert for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
27
3200400 Elbow, 3/4" O-Ring to 3/4" Male JIC for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$19.37
28
3201654 Valve, Flow Control for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$479.16
29
3200366 Elbow, 5/8" O-Ring to 1/2" Male JIC, 90 Deg. for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$16.14
30
2900245 Cap Screw, Soc. Hd., 1/4-20 x 2-5/8" for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$3.99
31
3200250 Gauge, Hydraulic, 3000 PSI for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$111.00
32
2500549 Plug, 7/8" Hole for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
33
2500204 Plug, 1/2" Hole for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
34
2503749 Plug, 5/16" Hole (Tapered) for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
35
3201659 Fitting, 3/4" M. Pipe to 3/4" M. Garden for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$13.99
36
3200177 Fitting, 3/4" F. Garden Union Swivel for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
Call for Price call for price call for price
37
1800536 "Return" Decal for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$16.63
38
1800941 Decal, Hydraulic Power Supply for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
Call for Price call for price call for price
39
1800531 "Hyd. Pressure" Decal for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$6.99
40
1801847 Decal, CB15 Flow Control for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$21.54
41
1800616 "Core Bore CB15E" Decal for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$33.38
