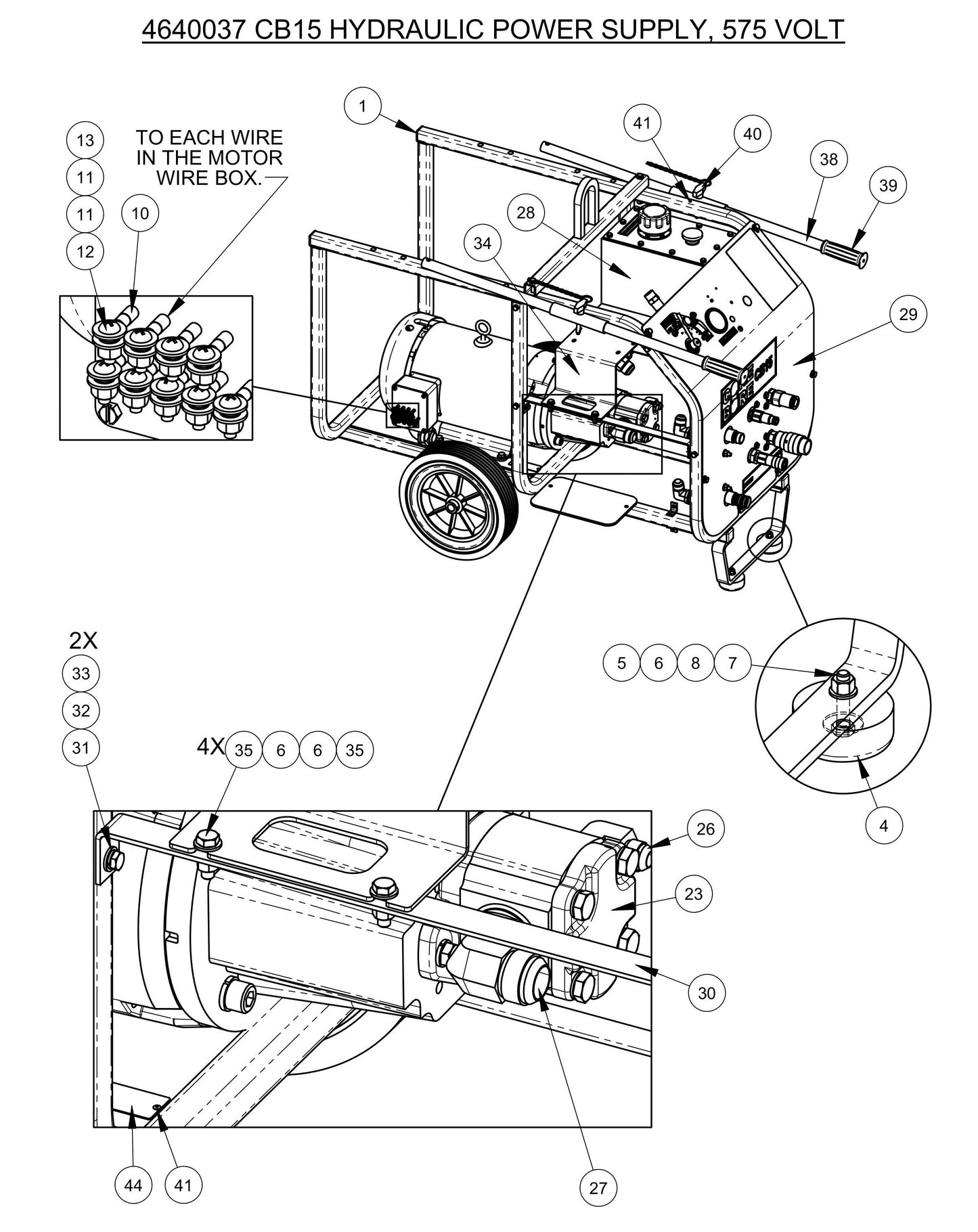

CB15EXL Hydraulic Power Supply, 575 Volt Fig 2 Assembly Parts

CB15EXL Hydraulic Power Supply, 575 Volt Fig 2 Assembly Parts

  • CB15EXL Hydraulic Power Supply, 575 Volt Fig 2 Assembly Parts
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
4646156 CB-XL Frame Assembly for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$1,926.54
2
2400643 Wheel, 12 x 2-5/8 x 3/4" for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$69.66
3
2400615 Set Collar, 3/4" for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$8.56
4
2501767 Rubber Bumper for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$9.32
5
2901103 Fender Washer, 5/16" x 1" for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
6
2900022 Flat Washer 5/16" SAE for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
7
2900508 Cap Screw, Hex Hd., 5/16-18 x 1-1/2" for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
8
2900039 Lock Nut, 5/16-18 Nylon for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
9
4600080 Electric Motor, 15HP, 3 PH., 575V. for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
Call for Price call for price call for price
10
2800083 Terminal, #10 Ring (16-14 AWG) Blue for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
11
2900016 Flat Washer #10 USS for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
12
2900159 Machine Screw, Rd. Hd., #10-24 x 5/8" for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
13
2900017 Lock Nut #10-24 Nylon for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
14
2800193 Lock Nut, 1" for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$3.99
15
2800312 Connector, 1" Sealtite Elbow for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$59.24
16
2900014 Flat Washer 3/8" SAE for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
17
2900013 Cap Screw, Hex Hd., 3/8-16 x 1-1/4" for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
18
2900018 Lock Nut 3/8-16 Nylon for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
19
2701801 Coupling Assembly, 1-3/8 - 3/4" Shafts for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$322.74
20
2400309 Pump Mount for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$255.42
21
2900084 Lock Washer 1/2" Split for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
22
2900511 Cap Screw,Soc. Hd., 1/2-13 x 1-1/4" for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$7.88
23
2600490 Hydraulic Pump, .85 CI for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$1,059.30
24
2900006 Lock Washer 3/8" Split for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
25
2900005 Cap Screw, Hex Hd., 3/8-16 x 1" for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
26
3200298 Elbow, 3/4" O-Ring to 1/2" M. JIC for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$29.05
27
3200297 Elbow, 1" O-Ring to 1" M. JIC for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$32.28
28
4646173 Hydraulic Tank Assembly for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$1,479.06
29
4646174 Panel Assembly, CB15 for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
Call for Price call for price call for price
30
4646035 Fuel Tank Support for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$47.80
31
2900009 Flat Washer 1/4" SAE for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
32
2900024 Lock Washer 1/4" Split for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
33
2900008 Cap Screw, Hex Hd., 1/4-20 x 1" for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
34
4641098 Starter Box Platform for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
Call for Price call for price call for price
35
2900138 Cap Screw, Hex Hd., 5/16-18 x 1" for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
36
4646049 Side Panel for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$78.56
37
2900144 Cap Screw, Hex Hd., 1/4-20 x 3/4" for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
38
4646006 Handle for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$54.00
39
2500636 Handle Grip for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$32.64
40
2900257 Lock Pin, T Handle, 3/8" for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$21.52
41
2900053 Rivet, 3/32" Dia. for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
42
4646003 Lifting Bar for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$77.51
43
2900248 Cap Screw, Hex Hd., 5/16-18 x 3" for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$3.99
44
1800169 Serial Number Plate, US for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$21.24
45
4646143 Hose Kit for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
Call for Price call for price call for price
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.
