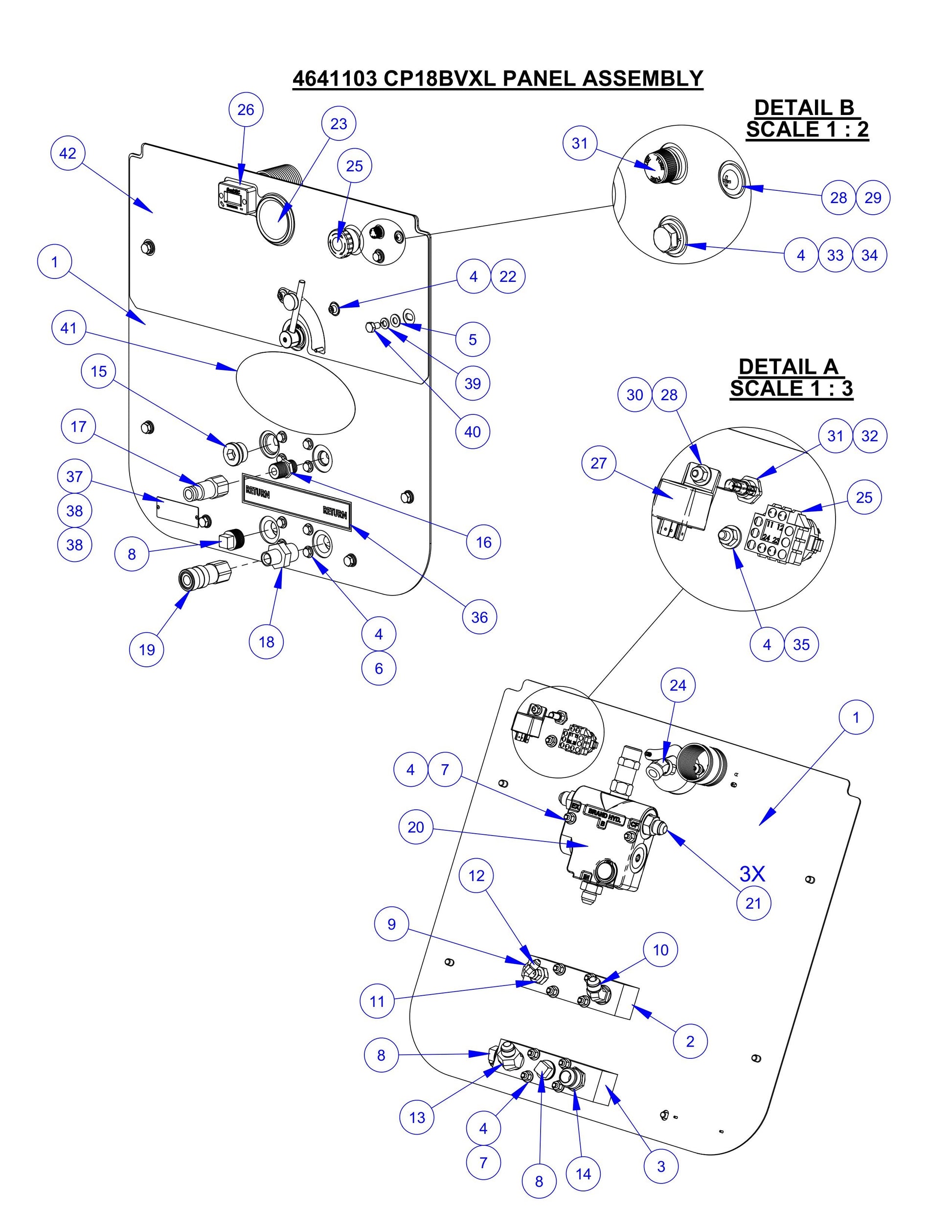

CP18BVXL Panel Assembly Parts

CP18BVXL Panel Assembly Parts

  • CP18BVXL Panel Assembly Parts
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
4641062 Instrument Panel for CB18BV-XL Hydraulic Power Unit Core Cut by Diamond Products
Call for Price call for price call for price
2
4646102 Manifold, SAE O-Ring for CB18BV-XL Hydraulic Power Unit Core Cut by Diamond Products
$74.56
3
4646101 Manifold, 3/4 NPT for CB18BV-XL Hydraulic Power Unit Core Cut by Diamond Products
$76.64
4
2900009 Flat Washer, 1/4" SAE for CB18BV-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
6
2901001 Cap Screw, Hex Hd., 1/4-20 x 2-1/2" for CB18BV-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
7
2900010 Lock Nut, 1/4-20 Nylon for CB18BV-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
8
3200479 Plug, 3/4" NPT Square Head for CB18BV-XL Hydraulic Power Unit Core Cut by Diamond Products
$10.63
9
3201434 Plug, 1/2" SAE O-Ring Hex for CB18BV-XL Hydraulic Power Unit Core Cut by Diamond Products
$6.99
10
3200367 Elbow, 1/2" O-Ring to 1/2" Male JIC 45 Deg. for CB18BV-XL Hydraulic Power Unit Core Cut by Diamond Products
$15.07
11
3201291 Adapter, 1/2"M.O-Ring to 1/4" MJIC for CB18BV-XL Hydraulic Power Unit Core Cut by Diamond Products
$7.07
12
3201241 Elbow, 1/4" M. JIC to 1/4" F. JIC for CB18BV-XL Hydraulic Power Unit Core Cut by Diamond Products
$8.72
13
3200444 3/4" MPT to 1/2" MJIC, 45 Deg. for CB18BV-XL Hydraulic Power Unit Core Cut by Diamond Products
Call for Price call for price call for price
14
3200097 Adapter, 3/4" M. JIC to 3/4" M. Pipe for CB18BV-XL Hydraulic Power Unit Core Cut by Diamond Products
$10.76
15
3201306 #12 MOR PLug (3/4" O-Ring) for CB18BV-XL Hydraulic Power Unit Core Cut by Diamond Products
$11.82
16
3200371 Adaptor, 1/2" MPT to 1/2" O-Ring for CB18BV-XL Hydraulic Power Unit Core Cut by Diamond Products
$7.80
17
3200105 Nipple, 1/2" Q.D. for CB18BV-XL Hydraulic Power Unit Core Cut by Diamond Products
$59.14
18
3200383 Nipple, Hex, 3/4" MPT TO 1/2" MPT for CB18BV-XL Hydraulic Power Unit Core Cut by Diamond Products
$17.00
19
3200104 Coupler, 1/2" Q.D. for CB18BV-XL Hydraulic Power Unit Core Cut by Diamond Products
$102.89
20
3201654 Valve, Flow Control for CB18BV-XL Hydraulic Power Unit Core Cut by Diamond Products
$479.16
21
3200287 Adapter, 5/8" O-Ring to 1/2" M. JIC for CB18BV-XL Hydraulic Power Unit Core Cut by Diamond Products
$7.93
22
2900245 Cap Screw, Soc. Hd., 1/4-20 x 2-5/8" for CB18BV-XL Hydraulic Power Unit Core Cut by Diamond Products
$3.99
23
3200250 Gauge, Hydraulic, 3000 PSI for CB18BV-XL Hydraulic Power Unit Core Cut by Diamond Products
$111.00
24
3200131 1/4" FPT, 45 Deg. for CB18BV-XL Hydraulic Power Unit Core Cut by Diamond Products
Call for Price call for price call for price
25
2801367 E-Stop Switch for CB18BV-XL Hydraulic Power Unit Core Cut by Diamond Products
$81.10
26
2801502 Tach/Hour Meter, W/#6 Screws for CB18BV-XL Hydraulic Power Unit Core Cut by Diamond Products
$155.43
27
2800144 Relay, 50 Amp, 12 V, SPDT for CB18BV-XL Hydraulic Power Unit Core Cut by Diamond Products
$27.64
28
2900016 Flat Washer, #10 USS for CB18BV-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
29
2900159 Machine Screw, Rd. Hd., #10-24 x 5/8" for CB18BV-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
30
2900017 Lock Nut, #10-24 Nylon for CB18BV-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
31
2800481 Fuse Holder for CB18BV-XL Hydraulic Power Unit Core Cut by Diamond Products
$15.62
32
2803014 Fuse, 15 Amp, Slo Blow for CB18BV-XL Hydraulic Power Unit Core Cut by Diamond Products
$7.96
33
2900024 Lock Washer, 1/4" Split for CB18BV-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
34
2900008 Cap Screw, Hex Hd., 1/4-20 x 1" for CB18BV-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
35
2900125 Hex Nut, 1/4"-20 for CB18BV-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
36
1800536 "Return" Decal for CB18BV-XL Hydraulic Power Unit Core Cut by Diamond Products
$16.63
5
2900022 Flat Washer, 5/16" SAE for CB18BV-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
37
1800169 Serial Number Plate, US for CB18BV-XL Hydraulic Power Unit Core Cut by Diamond Products
$21.24
38
2900053 Rivet, 3/32" Dia. for CB18BV-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
39
2900031 Lock Washer, 5/16" Split for CB18BV-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
40
2900958 Cap Screw, Hex Hd., 5/16-18 x 1/2" for CB18BV-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
41
Diamond Products DP OVAL LOGO DECAL 1802620
$31.13
42
Call for Price call for price call for price
