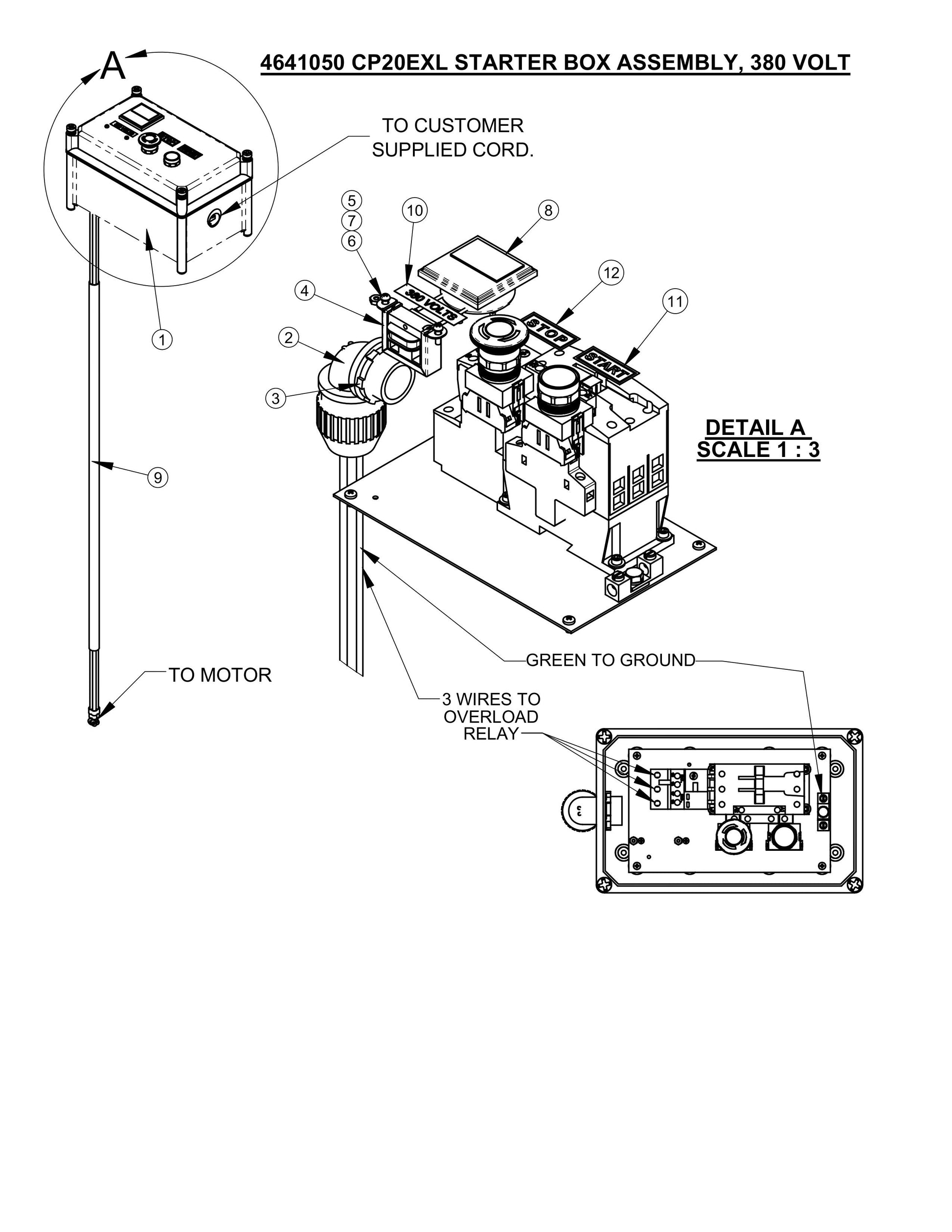

CP20EXL Starter Box Assembly, 380 Volt Parts

CP20EXL Starter Box Assembly, 380 Volt Parts

  • CP20EXL Starter Box Assembly, 380 Volt Parts
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
4646222 Starter Box, 380-440 Volt for CB20E-XL Hydraulic Power Unit Core Cut by Diamond Products
Call for Price call for price call for price
2
2800897 Cord Connector, 1"Thd., .77-.895" Cord, 90 Deg. for CB20E-XL Hydraulic Power Unit Core Cut by Diamond Products
$104.38
3
2800193 Lock Nut, 1" for CB20E-XL Hydraulic Power Unit Core Cut by Diamond Products
$3.99
4
2800085 AC Current Transformer for CB20E-XL Hydraulic Power Unit Core Cut by Diamond Products
$65.32
5
2900092 Lock Washer, #6 Split for CB20E-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
6
2900090 Machine Screw, Rd. Hd., #6-32 x 1/2" for M-1 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$2.99
7
2900091 Hex Nut, #6-32 for CB20E-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
8
2800253 Amp Meter w/ Bracket, 0-40 AC for CB20E-XL Hydraulic Power Unit Core Cut by Diamond Products
$93.62
9
4645035 Cable Assy., 8 Ga., 4 Wire x 50" for CB20E-XL Hydraulic Power Unit Core Cut by Diamond Products
$64.57
10
1801067 Voltage Label, 380V for CB20E-XL Hydraulic Power Unit Core Cut by Diamond Products
Call for Price call for price call for price
11
1801638 Decal, Start for CB20E-XL Hydraulic Power Unit Core Cut by Diamond Products
$6.99
12
1801639 Decal, Stop for CB20E-XL Hydraulic Power Unit Core Cut by Diamond Products
$6.99
