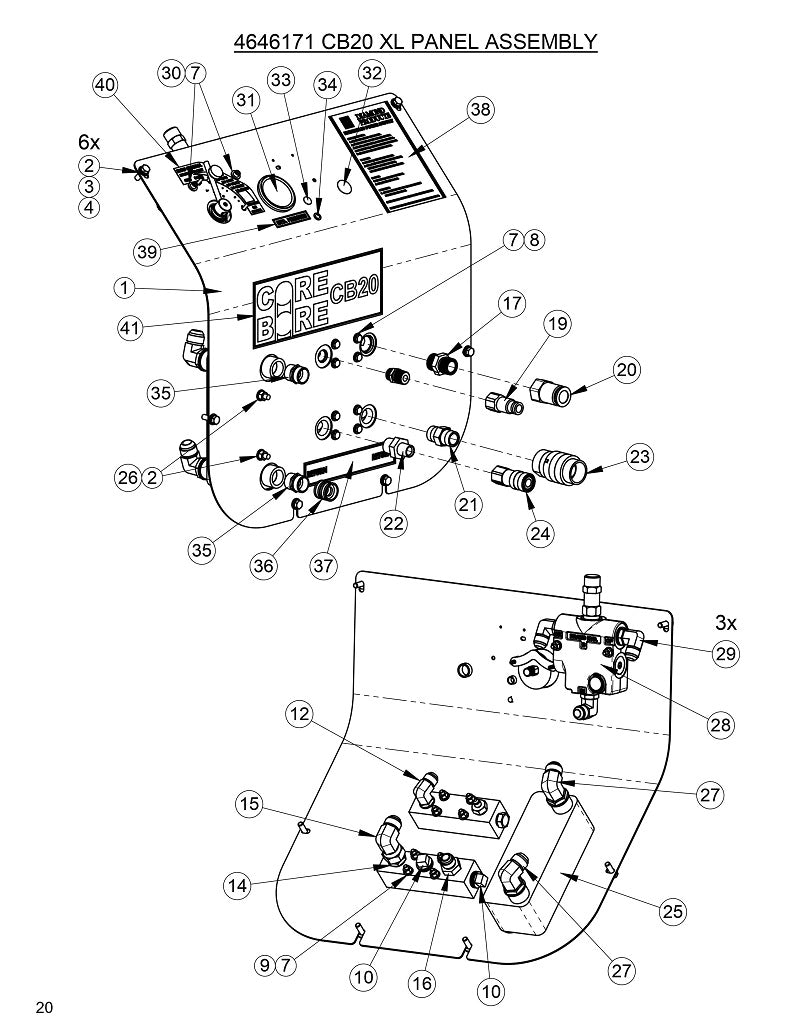

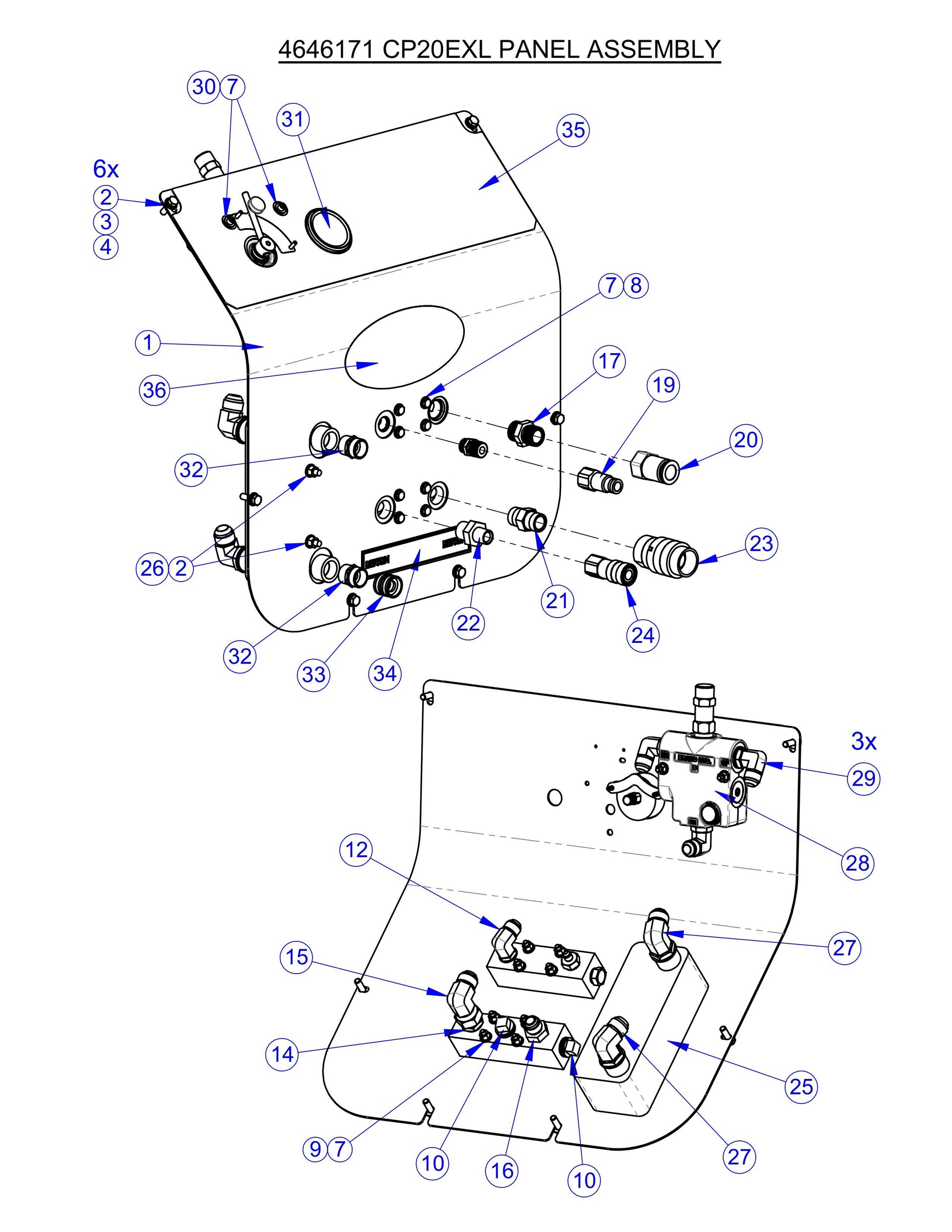

CP20EXL Panel Assembly Parts

CP20EXL Panel Assembly Parts

  • CP20EXL Panel Assembly Parts
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
4646141 Instrument Panel for CB20E-XL Hydraulic Power Unit Core Cut by Diamond Products
$154.80
2
2900022 Flat Washer 5/16" SAE for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
3
2900031 Lock Washer 5/16" Split for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
4
2900138 Cap Screw Hex Hd. for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
5
4646102 Manifold, SAE O-Ring for CB20E-XL Hydraulic Power Unit Core Cut by Diamond Products
$74.56
6
4646101 Manifold, 3/4 NPT for CB20E-XL Hydraulic Power Unit Core Cut by Diamond Products
$76.64
7
2900009 Flat Washer 1/4" SAE for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
8
2901001 Cap Screw, Hex Hd., 1/4-20 x 2-1/2" for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
9
2900010 Lock Nut 1/4-20 Nylon for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
10
3200479 Plug, 3/4" NPT Square Head for CB20E-XL Hydraulic Power Unit Core Cut by Diamond Products
$10.63
11
3201434 Plug, 1/2" SAE O-Ring Hex for CB20E-XL Hydraulic Power Unit Core Cut by Diamond Products
$6.99
12
3205671 1/2" O-Ring - 5/8" MJIC, 90 Deg. for CB20E-XL Hydraulic Power Unit Core Cut by Diamond Products
Call for Price call for price call for price
13
3201291 Adapter, 1/2"M.O-Ring to 1/4" MJIC for CB20E-XL Hydraulic Power Unit Core Cut by Diamond Products
$7.07
14
3200097 Adapter, 3/4" M. JIC to 3/4" M. Pipe for CB20E-XL Hydraulic Power Unit Core Cut by Diamond Products
$10.76
15
3200417 Elbow, 3/4" F. JIC to 3/4" M. JIC for CB20E-XL Hydraulic Power Unit Core Cut by Diamond Products
$22.60
16
3200082 5/8" MJIC TO 3/4" MPT for CB20E-XL Hydraulic Power Unit Core Cut by Diamond Products
$14.39
17
3200330 Adapter, 3/4" M. Pipe to 3/4" O-Ring for CB20E-XL Hydraulic Power Unit Core Cut by Diamond Products
$16.00
18
3200371 Adaptor, 1/2" MPT to 1/2" O-Ring for CB20E-XL Hydraulic Power Unit Core Cut by Diamond Products
$7.80
19
3200105 Nipple, 1/2" Q.D. for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$59.14
20
3200101 Nipple, 3/4" Quick Disconnect for CB20E-XL Hydraulic Power Unit Core Cut by Diamond Products
$129.69
21
3200137 Hex Nipple, 3/4" NPT for CB20E-XL Hydraulic Power Unit Core Cut by Diamond Products
$9.76
22
3200383 Nipple, Hex, 3/4" MPT TO 1/2" MPT for CB20E-XL Hydraulic Power Unit Core Cut by Diamond Products
$17.00
23
3200100 Coupler, 3/4" Quick Disconnect for CB20E-XL Hydraulic Power Unit Core Cut by Diamond Products
$324.72
24
3200104 Coupler, 1/2" Q.D. for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$102.89
25
2400307 Heat Exchanger for CB20E-XL Hydraulic Power Unit Core Cut by Diamond Products
$1,131.57
26
2900303 Lock Nut, M8-1.25 Nylon Insert for CB20E-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
27
3200400 Elbow, 3/4" O-Ring to 3/4" Male JIC for CB20E-XL Hydraulic Power Unit Core Cut by Diamond Products
$19.37
28
3201654 Valve, Flow Control for CB20E-XL Hydraulic Power Unit Core Cut by Diamond Products
$479.16
29
3202061 Fitting, 5/8" MORB x 5/8" MJIC x 90 DEG for CB20E-XL Hydraulic Power Unit Core Cut by Diamond Products
$16.14
30
2900245 Cap Screw, Soc. Hd., 1/4-20 x 2-5/8" for CB20E-XL Hydraulic Power Unit Core Cut by Diamond Products
$3.99
31
3200250 Gauge, Hydraulic, 3000 PSI for CB20E-XL Hydraulic Power Unit Core Cut by Diamond Products
$111.00
32
3201659 Fitting, 3/4" M. Pipe to 3/4" M. Garden for CB20E-XL Hydraulic Power Unit Core Cut by Diamond Products
$13.99
33
3200177 Fitting, 3/4" F. Garden Union Swivel for CB20E-XL Hydraulic Power Unit Core Cut by Diamond Products
Call for Price call for price call for price
34
1800536 Return Decal for CB20E-XL Hydraulic Power Unit Core Cut by Diamond Products
$16.63
36
Diamond Products DP OVAL LOGO DECAL 1802620
$31.13
35
Call for Price call for price call for price
