CB21XL Panel Assembly Parts

CB21XL Panel Assembly Parts

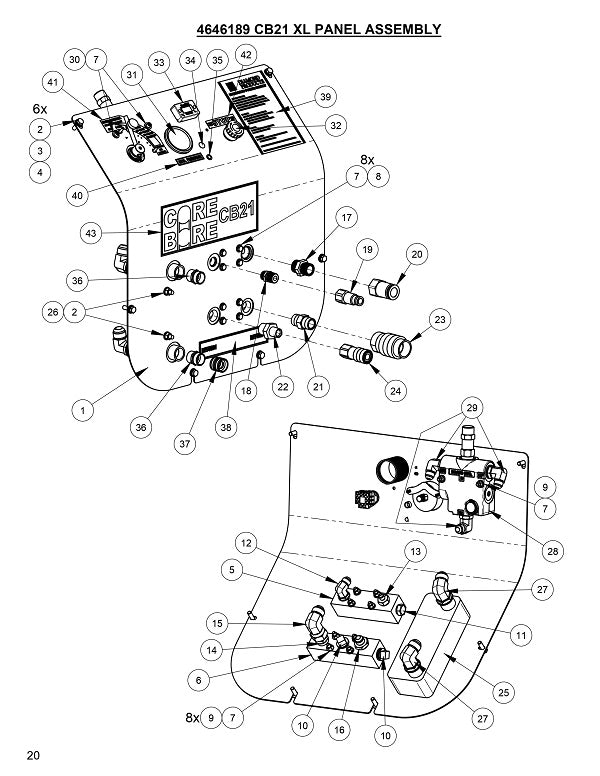

  • CB21XL Panel Assembly
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
4646141 Instrument Panel for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$154.80
2
2900022 Flat Washer 5/16" SAE for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
3
2900031 Lock Washer 5/16" Split for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
4
2900138 Cap Screw Hex Hd. for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
5
4646102 Manifold, SAE O-Ring for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$74.56
6
4646101 Manifold, 3/4 NPT for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$76.64
7
2900009 Flat Washer 1/4" SAE for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
8
2901001 Cap Screw, Hex Hd., 1/4-20 x 2-1/2" for CB20E-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
9
2900010 Lock Nut 1/4-20 Nylon for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
10
3200479 Plug, 3/4" NPT Square Head for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$10.63
11
3201434 Plug, 1/2" SAE O-Ring Hex for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$6.99
12
3200285 Elbow, 1/2" O-Ring to 1/2" M. JIC for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$11.84
13
3201291 Adapter, 1/2"M.O-Ring to 1/4" MJIC for CB18BV-XL Hydraulic Power Unit Core Cut by Diamond Products
$7.07
14
3200097 Adapter, 3/4" M. JIC to 3/4" M. Pipe for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$10.76
15
3200417 Elbow, 3/4" F. JIC to 3/4" M. JIC for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$22.60
16
3201522 Adapter, 3/4" M. Pipe to 1/2" M. JIC for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$10.04
17
3200330 Adapter, 3/4" M. Pipe to 3/4" O-Ring for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$16.00
18
3200371 Adaptor, 1/2" MPT to 1/2" O-Ring for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$7.80
19
3200105 1/2 QD Nipple - 1/2 NPSF (Flat Face Style) for CW Hand Saw by Diamond Products
$57.87
20
3200101 Nipple, 3/4" Quick Disconnect for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$129.69
21
3200137 Hex Nipple, 3/4" NPT for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$9.76
22
3200383 Nipple, Hex, 3/4" MPT TO 1/2" MPT for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$17.00
23
3200100 Coupler, 3/4" Quick Disconnect for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$324.72
24
3200104 Coupler, 1/2" Q.D. for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$102.89
25
2400256 Heat Exchanger for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$956.34
26
2900303 Lock Nut, M8-1.25 Nylon Insert for CB20E-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
27
3200400 Elbow, 3/4" O-Ring to 3/4" Male JIC for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$19.37
28
3201654 Valve, Flow Control for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$479.16
29
3200366 Elbow, 5/8" O-Ring to 1/2" Male JIC, 90 Deg. for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$16.14
30
2900245 Cap Screw, Soc. Hd., 1/4-20 x 2-5/8" for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$3.99
31
3200250 Gauge, Hydraulic, 3000 PSI for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$111.00
32
2800893 E-Stop Switch, DPST for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$111.97
33
2801502 Tach/Hour Meter, W/#6 Screws for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$155.43
34
2500204 Plug, 1/2" Hole for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$2.99
35
2503749 Plug, 5/16" Hole (Tapered) for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$2.99
36
3201659 Fitting, 3/4" M. Pipe to 3/4" M. Garden for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$13.99
37
3200177 Fitting, 3/4" F. Garden Union Swivel for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
Call for Price call for price call for price
38
1800536 Return Decal for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$16.63
39
1800941 Decal, Hydraulic Power Supply for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
Call for Price call for price call for price
40
1800531 Hyd. Pressure Decal for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$6.99
41
1801850 Decal, CB21 Flow Control for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$21.54
42
1801907 Decal, Stop for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$4.99
43
1801613 Decal, Core Bore CB21 for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$30.68
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.
