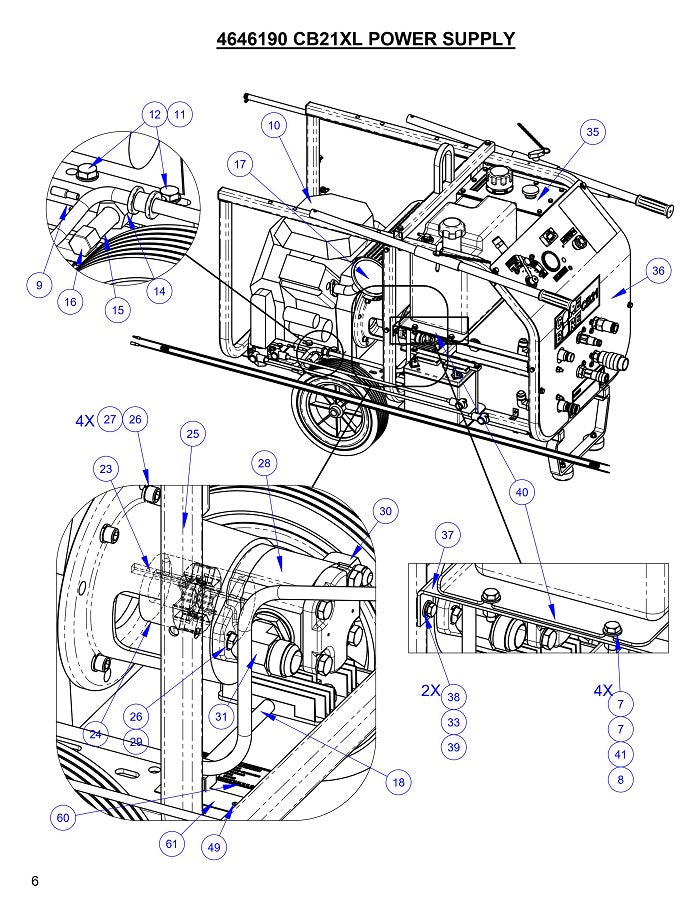

CB21XL Power Supply Assembly fig 1 Parts

CB21XL Power Supply Assembly fig 1 Parts

  • CB21XL Power Supply
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
4646156 CB-XL Frame Assembly for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$1,926.54
2
2400643 Wheel, 12 x 2-5/8 x 3/4" for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$69.66
3
2400615 Set Collar, 3/4" fits Core Cut CC1300XL Concrete Floor Saw by Diamond Products
$8.56
4
2501767 Rubber Bumper for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$9.32
5
2901103 Fender Washer, 5/16" x 1" for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$2.99
6
2900508 Cap Screw, Hex Hd., 5/16-18 x 1-1/2" for CB20E-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
7
2900022 Flat Washer 5/16" SAE for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
8
2900039 Lock Nut 5/16-18 Nylon for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
9
4646235 Engine Shim Plate for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$25.53
10
4600072 Honda Engine, GX690, Short Shaft for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$4,198.59
11
2900014 Flat Washer 3/8" SAE for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
12
2900318 Cap Screw, Hex Hd., M10-1.5 x 50mm for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$3.99
13
2900304 Lock Nut, M10 Nylon for CC1113-XL Concrete Saw Core Cut by Diamond Products
$2.99
14
3201968 Adapter, M20x1.5 M. to 3/8" F. Pipe for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$49.58
15
3201969 Nipple, 3/8 MPT x 2-1/2", Sched. 40, Galv. for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$15.20
16
3202315 3/8 NPT Hex Cap for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$9.00
17
2708046 Honda Muffler, R Side Exhaust for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$511.83
18
2701670 Rectifier Assembly for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$401.94
19
2900009 Flat Washer 1/4" SAE for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
38
2900009 Flat Washer 1/4" SAE for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
20
2900052 Cap Screw Hex Hd. for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
21
2900010 Lock Nut 1/4-20 Nylon for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
22
4646018 Wire Assembly, 12 Gage for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
Call for Price call for price call for price
23
6048134 Key, 1/4" Sq. x 2-1/4" for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$3.99
24
2702225 Coupling Assembly, 3/4 - 1-1/8" for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$322.74
25
4646010 Pump Mount, SAE 2 Bolt for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$184.14
26
2900006 Lock Washer 3/8" Split for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
28
2600490 Hydraulic Pump, .85 CI for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$1,059.30
29
2900005 Cap Screw Hex Hd. for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
30
3200298 Elbow, 3/4" O-Ring to 1/2"M. JIC for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$29.05
31
3200297 Elbow, 1" O-Ring to 1" M.JIC for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$32.28
32
4646011 Heat Shield for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$79.45
33
2900024 Lock Washer 1/4" Split for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
34
2900144 Cap Screw Hex Hd. for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
35
4646173 Hydraulic Tank Assembly for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$1,479.06
36
4646189 Panel Assembly, CB21 XL for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$2,642.31
37
4646035 Fuel Tank Support for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$47.80
39
2900008 Cap Screw Hex Hd. for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
40
4641099 Gas Tank Mounting Plate for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$64.57
41
2900138 Cap Screw Hex Hd. for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
42
2500584 Battery, 12 Volt Group SizeU1 for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$165.60
43
4646122 Battery Support for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$30.43
44
2901405 Cap Screw, Hex Hd., 1/4-20 x 7-1/2" for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$4.99
45
4646049 Side Panel for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$78.56
46
4646006 Handle for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$54.00
47
2500636 Handle Grip for CC5555-3 Concrete Saw Core Cut by Diamond Products
$32.64
48
2900257 Lock Pin, T Handle, 3/8" for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$21.52
49
2900053 Rivet, 3/32" Dia. for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$2.99
50
4646003 Lifting Bar for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$77.51
52
2501434 Hose Clamp 5/8" x 3/4" Wide for CC5555-3 Concrete Saw Core Cut by Diamond Products
$4.99
53
4641105 Vent Hose Assembly for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
Call for Price call for price call for price
54
4645036 Wire Assy., Emergency Off, 65-1/2" for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$26.05
55
4646015 Battery Cable Assy., Red for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$54.95
56
4646016 Battery Cable Assy., Black for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$52.96
57
2800068 Wire Tie, 7-1/2" for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$2.99
58
4646165 Hose Kit for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
Call for Price call for price call for price
59
1800537 Label, HOT for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$10.08
60
1801716 Decal, EPA EVAP Standard for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$6.99
61
1800169 Serial Number Plate US US for CC5555-3 Concrete Saw Core Cut by Diamond Products
$21.24
62
4600203 Gas Tank Assembly, 4.4 Gallon for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$400.95
63
4646244 Solenoid Valve Assembly,CB21XL for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
Call for Price call for price call for price
27
2900183 Capscrew, Soc Hd., 3/8"-16 X 1-3/8" for M-3 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$7.90
51
2900248 Cap Screw, Hex Hd., 5/16- 18 x 3" for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$4.99
