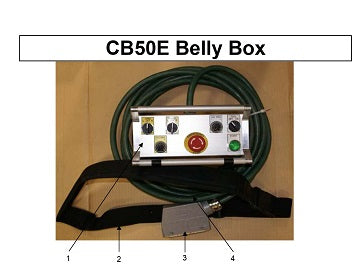

CB50E Fig-1 Belly Box Assembly Parts

CB50E Fig-1 Belly Box Assembly Parts

  • CB50E Belly Box
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
6011315 Complete Box Assembly, Strap, Cord, Connector for CB50E Hydraulic Power Unit Core Cut by Diamond Products
$2,682.00
2
2704153 Strap for CB50E Hydraulic Power Unit Core Cut by Diamond Products
$213.60
3A
2802991 Connector Housing, Side Entry for CB50E Hydraulic Power Unit Core Cut by Diamond Products
Call for Price call for price call for price
3B
2802937 Connector, Internal Parts male for CB50E Hydraulic Power Unit Core Cut by Diamond Products
$131.67
3C
2802992 Connector Cable Gland (max cable OD 12-20mm) for CB50E Hydraulic Power Unit Core Cut by Diamond Products
Call for Price call for price call for price
4
2800685 Cable(Specify Footage) for CB50E Hydraulic Power Unit Core Cut by Diamond Products
Call for Price call for price call for price
