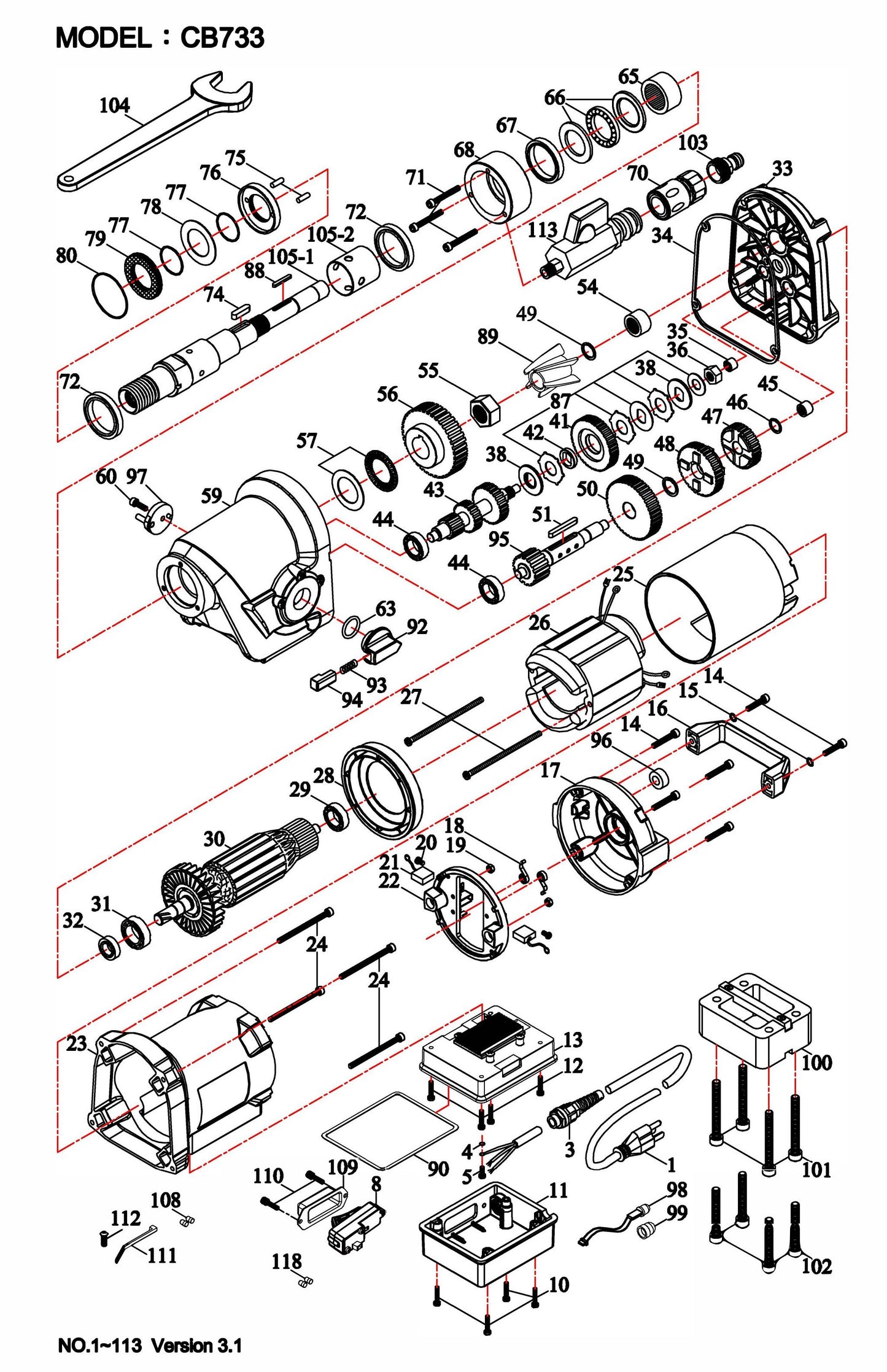

CB733 Complete Drill Motor Parts by Core Bore Diamond Products

CB733 Complete Drill Motor Parts by Core Bore Diamond Products

  • CB733 Complete Drill Motor Parts by Core Bore Diamond Products
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
2709083 Power Cable 14AWG for CB733 Core Drill by Core Bore Diamond Products
$97.40
3
2700000 CORD ARMOR for CB733 and CB744 Concrete Drill Core Cut by Diamond Products
$27.98
4
6078432 External Start Washer M4 for CB733 and CB744 Concrete Core Drill by Core Cut Diamond Products
$2.99
5
2709001 Panhead Machine Screw M4 x 10 for CB744 and CB733 Concrete Drill Core Cut by Diamond Products
$3.99
10
2709004 Panhead Tapping Screw M4 x 25 for CB733 and CB744 Concrete Drill Core Cut by Diamond Products
$3.99
12
2709006 Panhead Machine Screw with Washer M4 x 12 for CB744 Core Drill by Core Cut Diamond Products
$3.99
13
2709084 Electronic Unit 115V for CB733 Core Drill by Core Cut Diamond Products
$212.85
14
2709008 Socket Cap Screw M5 x 25 for CB733 and CB744 Drill by Core Cut Diamond Products
$3.99
15
2709009 Flat Washer Ø5 x Ø12 x 1 for CB733 and CB744 Drill by Core Cut Diamond Products
$3.99
16
2709010 Top Handle for CB733 and CB744 Drill by Core Cut Diamond Products
$8.77
10
6078411 Brush Spring 0.4 x 4 x 3T for CB733 and CB744 Drill by Core Cut Diamond Products
$19.18
19
2709012 Nylon Nut M5 for CB733 and CB744 Drill by Core Cut Diamond Products
$3.99
20
2709013 Panhead Machine Screw M4 x 6 for CB733 and CB744 Drill by Core Cut Diamond Products
$3.99
21
6078414 Carbon Brush fits CB515 CB733 and CB744 Drill by Core Cut Diamond Products
$12.91
22
2709014 Brush Holder Plate Assembly for CB733 and CB744 Drill by Core Cut Diamond Products
$46.27
23
2709015 Motor Housing for CB733 and CB744 Drill by Core Cut Diamond Products
$113.35
24
2709016 SOCKET CAP SCREW M6 x 75 for CB744 Concrete Drill Core Cut by Diamond Products
$6.99
25
2709017 MOTOR INSULATION SLEEVE for CB744 Concrete Drill Core Cut by Diamond Products
$32.28
27
2709019 PANHEAD MACHINE SCREW M5 x 110 for CB744 Concrete Drill Core Cut by Diamond Products
$4.99
28
2709020 FAN SHROUD for CB744 Concrete Drill Core Cut by Diamond Products
$11.78
29
6078427 Ball Bearing fits CB744 Core Drill by Core Cut Diamond Products
$35.50
30
2709021 ARMATURE 110V-100 x 54.1 x 75 for CB744 Concrete Drill Core Cut by Diamond Products
$211.20
31
6078430 BALL BEARING 6202 for CB744 Concrete Drill Core Cut by Diamond Products
$33.31
32
2709022 OIL SEAL Ø14 x Ø25 x 7 for CB744 Concrete Drill Core Cut by Diamond Products
$40.05
33
2709023 GEAR PLATE for CB744 Concrete Drill Core Cut by Diamond Products
$85.01
34
2709024 GASKET for CB744 Concrete Drill Core Cut by Diamond Products
$11.13
35
2709025 NEEDLE BEARING HK 0810 for CB744 Concrete Drill Core Cut by Diamond Products
$17.22
36
2709026 CLUTCH NUT M12 x P1.75 x 9T for CB744 Concrete Drill Core Cut by Diamond Products
$8.32
38
2709027 PRESSURE DISC Ø34.8 x Ø16 x 2.5 for CB744 Concrete Drill Core Cut by Diamond Products
$11.80
41
2709028 INPUT GEAR M1.25 x 44T for CB744 Concrete Drill Core Cut by Diamond Products
$94.43
42
2709029 BUSHING Ø15.9 x Ø22 x 4.7 for CB744 Concrete Drill Core Cut by Diamond Products
$6.99
43
2709085 Input Shaft for CB733 Drill by Core Bore Diamond Products
$224.73
44
2709031 BALL BEARING 6200 for CB744 Concrete Drill Core Cut by Diamond Products
$20.45
45
2709032 NEEDLE BEARING HK 1010 for CB744 Concrete Drill Core Cut by Diamond Products
$12.40
46
2709086 Internal Circlip for CB733 Core Drill for Core Bore Diamond Products
$3.99
47
2709087 Countershaft Set for CB733 Core Drill by Core Bore Diamond Products
$88.24
48
Diamond Products SPINDLE GEAR M1.5 x 38T 2709088
$118.00
49
2709033 INTERNAL CIRCLIP IS18 for CB744 Concrete Drill Core Cut by Diamond Products
$3.99
50
2709089 Lay Gear for CB733 Core Drill by Core Bore Diamond Products
$88.24
51
2709090 Parallel Key for CB733 Core Drill by Core Bore Diamond Products
$6.99
54
2709039 NEEDLE BEARING TA1815 for CB744 Concrete Drill Core Cut by Diamond Products
$36.59
55
2709091 Lock Nut M20 for CB733 CB744 Core Drill by Core Cut Diamond Products
$9.95
56
2709092 Output Gear Parts for CB733 Core Drill by Core Cut Diamond Products
$170.28
57
2709044 Thrust Bearing NTB3047 for CB733 and CB744 Core Drill by Core Cut Diamond Products
$53.20
59
2709093 Gear Housing for CB733 Core Drill by Core Bore Diamond Products
$225.72
60
2709094 Screw M5 X 12 SHCS for CB733 Core Drill by Core Bore Diamond Products
$3.99
63
2709047 O-RING Ø20 x 3 for CB744 Concrete Drill Core Cut by Diamond Products
$11.84
65
2709048 NEEDLE BEARING TA3020 for CB744 Concrete Drill Core Cut by Diamond Products
$60.26
66
2709049 THRUST BEARING 51106 for CB744 Concrete Drill Core Cut by Diamond Products
$43.04
67
2709050 OIL SEAL Ø40 x Ø50 x 7 for CB744 Concrete Drill Core Cut by Diamond Products
$12.76
68
2709051 WATER FEED COLLAR for CB744 Concrete Drill Core Cut by Diamond Products
$97.93
70
6078471 WATER COUPLING for CB744 Concrete Drill Core Cut by Diamond Products
$11.86
71
2709054 SOCKET CAP SCREW M5 x 40 for CB744 Concrete Drill Core Cut by Diamond Products
$3.99
72
2709055 OIL SEAL Ø40 x Ø52 x 7 for CB744 Concrete Drill Core Cut by Diamond Products
$12.84
74
2709096 Parallel Key for CB733 Core Drill Motor by Core Cut Diamond Products
$4.99
75
2709056 DOWEL PIN Ø4 x 11.8 for CB744 Concrete Drill Core Cut by Diamond Products
$7.46
76
2709057 ANTI-SEIZE CUP for CB744 Concrete Drill Core Cut by Diamond Products
$39.71
77
2709058 O-RING Ø32 x 1.5 for CB744 Concrete Drill Core Cut by Diamond Products
$3.99
78
2709059 THRUST RING 3252 for CB744 Concrete Drill Core Cut by Diamond Products
$12.18
79
2709060 ANTI-SEIZE RING for CB744 Concrete Drill Core Cut by Diamond Products
$50.24
80
2709061 O-RING Ø49 x 1.5 for CB744 Concrete Drill Core Cut by Diamond Products
$10.14
87
2709063 CLUTCH DISC SET for CB744 Concrete Drill Core Cut by Diamond Products
$32.28
88
2709097 Parallel Key for CB733 Core Drill by Core Bore Diamond Products
$4.99
89
Diamond Products IMPELLER, OIL 2709098
$6.99
90
2709064 GASKET for CB744 Concrete Drill Core Cut by Diamond Products
$6.99
92
2709065 GEAR SELECTOR for CB744 Concrete Drill Core Cut by Diamond Products
$31.21
93
2709066 SPRING Ø0.6 x Ø3.8 x Ø5 x 11T x 35L for CB744 Concrete Drill Core Cut by Diamond Products
$3.99
94
2709067 RELEASE PIN for CB744 Concrete Drill Core Cut by Diamond Products
$12.91
95
2709100 Countershaft Set for CB733 Core Drill by Core Bore Diamond Products
$135.00
96
2709070 BULLS-EYE LEVEL for CB744 Concrete Drill Core Cut by Diamond Products
$10.38
97
2709101 Selector Disc for CB733 Core Drill by Core Bore Diamond Products
$20.50
100
2709075 EXTENSION SPACER for CB744 Concrete Drill Core Cut by Diamond Products
$105.96
101
2903249 SOCKET CAP SCREW M8 x 80 for CB744 Concrete Drill Core Cut by Diamond Products
$6.99
108
2903249 SOCKET CAP SCREW M8 x 80 for CB744 Concrete Drill Core Cut by Diamond Products
$6.99
103
6078472 FITTING for CB744 Concrete Drill Core Cut by Diamond Products
$3.99
104
2709103 WRENCH M32 for CB744 Concrete Drill Core Cut by Diamond Products
$48.46
105
2709095 Spindle 1.250-7 for CB733 Core Drill by Core Cut Diamond Products
$244.50
110
2709727 PANHEAD TAPPING SCREW M4x12 for CB744 Concrete Drill Core Cut by Diamond Products
$2.99
113
2709052 WATER FEED CONNECTOR KIT 1/2" for CB744 Concrete Drill Core Cut by Diamond Products
$62.93
115
2709107 Cover 110V/220V for CB733 and CB744 Core Drill by Core Cut Diamond Products
$15.66
118
2709018 STATOR 110V-100 x 54.1 x 75 for CB744 Concrete Drill Core Cut by Diamond Products
$154.44
8
Call for Price call for price call for price
17
Call for Price call for price call for price
26
Call for Price call for price call for price
102
Call for Price call for price call for price
109
Call for Price call for price call for price
111
Call for Price call for price call for price
112
Call for Price call for price call for price
114
Call for Price call for price call for price
116
Call for Price call for price call for price
117
Call for Price call for price call for price
119
Call for Price call for price call for price
120
Call for Price call for price call for price
