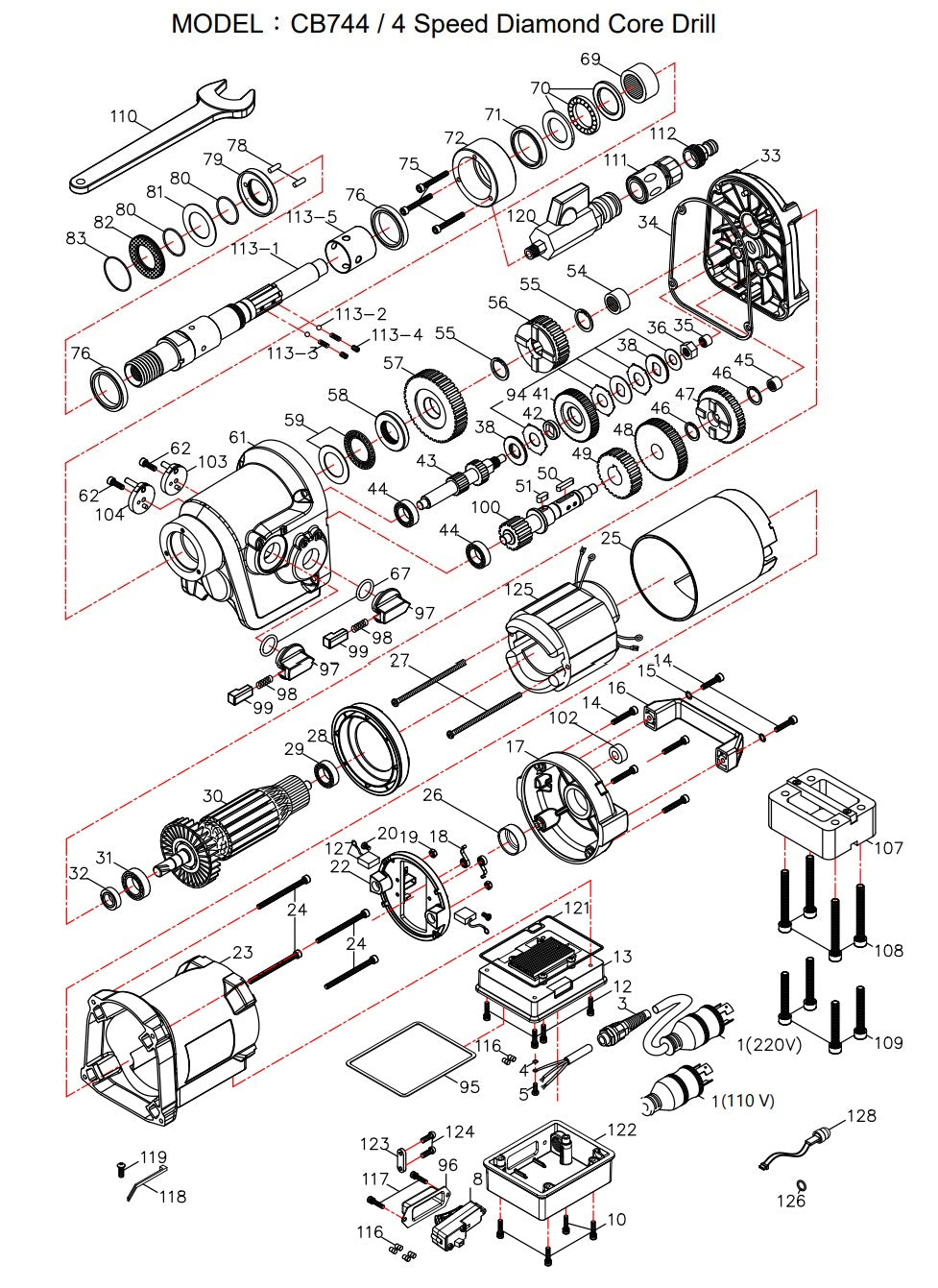

CB744 Drill Motor Parts by Core Bore Diamond Products

CB744 Drill Motor Parts by Core Bore Diamond Products

  • CB744 Drill Motor Parts by Core Bore Diamond Products
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
2709077 POWER SUPPLY CABLE UL-12AWG x 3C x 3.5M-SJTW (115V) for CB744 Concrete Drill Core Cut by Diamond Products
$126.00
1
2709104 POWER SUPPLY CABLE UL-14A x 3C x 3.5M-SJTW (230V) for CB744 Concrete Drill Core Cut by Diamond Products
$98.86
3
2700000 CORD ARMOR for CB733 and CB744 Concrete Drill Core Cut by Diamond Products
$27.98
4
6078432 External Start Washer M4 for CB733 and CB744 Concrete Core Drill by Core Cut Diamond Products
$2.99
5
2709001 Panhead Machine Screw M4 x 10 for CB744 and CB733 Concrete Drill Core Cut by Diamond Products
$3.99
8
2709106 SWITCH 220V for CB744 Concrete Drill Core Cut by Diamond Products
$246.51
8
2709725 Switch 110V for CB733 and CB744 Concrete Drill by Core Cut Diamond Products
$65.91
10
2709004 Panhead Tapping Screw M4 x 25 for CB733 and CB744 Concrete Drill Core Cut by Diamond Products
$3.99
12
2709006 Panhead Machine Screw with Washer M4 x 12 for CB744 Core Drill by Core Cut Diamond Products
$3.99
13
2709007 ELECTRONICS UNIT 110V for CB744 Concrete Drill Core Cut by Diamond Products
$206.40
13
2709108 ELECTRONICS UNIT 220V for CB744 Concrete Drill Core Cut by Diamond Products
$219.78
14
2709008 Socket Cap Screw M5 x 25 for CB733 and CB744 Drill by Core Cut Diamond Products
$3.99
15
2709009 Flat Washer Ø5 x Ø12 x 1 for CB733 and CB744 Drill by Core Cut Diamond Products
$3.99
16
2709010 Top Handle for CB733 and CB744 Drill by Core Cut Diamond Products
$8.77
18
6078411 Brush Spring 0.4 x 4 x 3T for CB733 and CB744 Drill by Core Cut Diamond Products
$19.18
19
2709012 Nylon Nut M5 for CB733 and CB744 Drill by Core Cut Diamond Products
$3.99
20
2709013 Panhead Machine Screw M4 x 6 for CB733 and CB744 Drill by Core Cut Diamond Products
$3.99
22
2709014 Brush Holder Plate Assembly for CB733 and CB744 Drill by Core Cut Diamond Products
$46.27
23
2709015 Motor Housing for CB733 and CB744 Drill by Core Cut Diamond Products
$113.35
24
2709016 SOCKET CAP SCREW M6 x 75 for CB744 Concrete Drill Core Cut by Diamond Products
$6.99
25
2709017 MOTOR INSULATION SLEEVE for CB744 Concrete Drill Core Cut by Diamond Products
$32.28
27
2709019 PANHEAD MACHINE SCREW M5 x 110 for CB744 Concrete Drill Core Cut by Diamond Products
$4.99
28
2709020 FAN SHROUD for CB744 Concrete Drill Core Cut by Diamond Products
$11.78
29
6078427 Ball Bearing fits CB744 Core Drill by Core Cut Diamond Products
$35.50
30
2709021 ARMATURE 110V-100 x 54.1 x 75 for CB744 Concrete Drill Core Cut by Diamond Products
$211.20
30
2709110 ARMATURE 220V-100 x 54.1 x 75 for CB744 Concrete Drill Core Cut by Diamond Products
$246.51
31
6078430 BALL BEARING 6202 for CB744 Concrete Drill Core Cut by Diamond Products
$33.31
32
2709022 OIL SEAL Ø14 x Ø25 x 7 for CB744 Concrete Drill Core Cut by Diamond Products
$40.05
33
2709023 GEAR PLATE for CB744 Concrete Drill Core Cut by Diamond Products
$85.01
34
2709024 GASKET for CB744 Concrete Drill Core Cut by Diamond Products
$11.13
35
2709025 NEEDLE BEARING HK 0810 for CB744 Concrete Drill Core Cut by Diamond Products
$17.22
36
2709026 CLUTCH NUT M12 x P1.75 x 9T for CB744 Concrete Drill Core Cut by Diamond Products
$8.32
38
2709027 PRESSURE DISC Ø34.8 x Ø16 x 2.5 for CB744 Concrete Drill Core Cut by Diamond Products
$11.80
41
2709028 INPUT GEAR M1.25 x 44T for CB744 Concrete Drill Core Cut by Diamond Products
$94.43
42
2709029 BUSHING Ø15.9 x Ø22 x 4.7 for CB744 Concrete Drill Core Cut by Diamond Products
$6.99
43
2709030 INPUT SHAFT M1.75 x 13T x M1.5 x 12T for CB744 Concrete Drill Core Cut by Diamond Products
$124.74
44
2709031 BALL BEARING 6200 for CB744 Concrete Drill Core Cut by Diamond Products
$20.45
45
2709032 NEEDLE BEARING HK 1010 for CB744 Concrete Drill Core Cut by Diamond Products
$12.40
46
2709033 INTERNAL CIRCLIP IS18 for CB744 Concrete Drill Core Cut by Diamond Products
$3.99
47
2709034 SLIDER GEAR-CD M1.75 x 36T for CB744 Concrete Drill Core Cut by Diamond Products
$128.70
48
2709035 LAY GEAR M1.5 x 46T for CB744 Concrete Drill Core Cut by Diamond Products
$102.23
49
2709036 COUNTERSHAFT GEAR M2.0 x2 6T for CB744 Concrete Drill Core Cut by Diamond Products
$81.78
50
2709037 PARALLEL KEY 5 x 5 x 25 for CB744 Concrete Drill Core Cut by Diamond Products
$6.99
51
2709038 PARALLEL KEY 6 x 6 x 15 for CB744 Concrete Drill Core Cut by Diamond Products
Call for Price call for price call for price
54
2709039 NEEDLE BEARING TA1815 for CB744 Concrete Drill Core Cut by Diamond Products
$36.59
55
2709040 INTERNAL CIRCLIP IS25 for CB744 Concrete Drill Core Cut by Diamond Products
$3.99
56
2709041 SLIDER GEAR-AB M2.0 x 28T for CB744 Concrete Drill Core Cut by Diamond Products
$157.41
57
2709042 OUTPUT GEAR M2.0 x 40T for CB744 Concrete Drill Core Cut by Diamond Products
$103.17
58
2709043 CLUTCH NUT M27 x P1.0 x 7.8T for CB744 Concrete Drill Core Cut by Diamond Products
$27.98
59
2709044 THRUST BEARING NTB3047 + AS3047 for CB744 Concrete Drill Core Cut by Diamond Products
$53.20
61
2709045 GEAR HOUSING for CB744 Concrete Drill Core Cut by Diamond Products
$225.72
62
2709046 SOCKET CAP SCREW M5 x 12 for CB744 Concrete Drill Core Cut by Diamond Products
$3.99
67
2709047 O-RING Ø20 x 3 for CB744 Concrete Drill Core Cut by Diamond Products
$11.84
69
2709048 NEEDLE BEARING TA3020 for CB744 Concrete Drill Core Cut by Diamond Products
$60.26
70
2709049 THRUST BEARING 51106 for CB744 Concrete Drill Core Cut by Diamond Products
$43.04
71
2709050 OIL SEAL Ø40 x Ø50 x 7 for CB744 Concrete Drill Core Cut by Diamond Products
$12.76
72
2709051 WATER FEED COLLAR for CB744 Concrete Drill Core Cut by Diamond Products
$97.93
75
2709054 SOCKET CAP SCREW M5 x 40 for CB744 Concrete Drill Core Cut by Diamond Products
$3.99
76
2709055 OIL SEAL Ø40 x Ø52 x 7 for CB744 Concrete Drill Core Cut by Diamond Products
$12.84
78
2709056 DOWEL PIN Ø4 x 11.8 for CB744 Concrete Drill Core Cut by Diamond Products
$7.46
79
2709057 ANTI-SEIZE CUP for CB744 Concrete Drill Core Cut by Diamond Products
$39.71
80
2709058 O-RING Ø32 x 1.5 for CB744 Concrete Drill Core Cut by Diamond Products
$3.99
81
2709059 THRUST RING 3252 for CB744 Concrete Drill Core Cut by Diamond Products
$12.18
82
2709060 ANTI-SEIZE RING for CB744 Concrete Drill Core Cut by Diamond Products
$50.24
83
2709061 O-RING Ø49 x 1.5 for CB744 Concrete Drill Core Cut by Diamond Products
$10.14
94
2709063 CLUTCH DISC SET for CB744 Concrete Drill Core Cut by Diamond Products
$32.28
95
2709064 GASKET for CB744 Concrete Drill Core Cut by Diamond Products
$6.99
96
2709099 SWITCH BOOT for CB744 Concrete Drill Core Cut by Diamond Products
$15.04
97
2709065 GEAR SELECTOR for CB744 Concrete Drill Core Cut by Diamond Products
$31.21
98
2709066 SPRING Ø0.6 x Ø3.8 x Ø5 x 11T x 35L for CB744 Concrete Drill Core Cut by Diamond Products
$3.99
99
2709067 RELEASE PIN for CB744 Concrete Drill Core Cut by Diamond Products
$12.91
100
2709068 COUNTERSHAFT SET for CB744 Concrete Drill Core Cut by Diamond Products
$154.44
102
2709070 BULLS-EYE LEVEL for CB744 Concrete Drill Core Cut by Diamond Products
$10.38
103
2709071 SELECTOR DISC for CB744 Concrete Drill Core Cut by Diamond Products
$21.53
104
2709072 SELECTOR DISC for CB744 Concrete Drill Core Cut by Diamond Products
$21.53
107
2709075 EXTENSION SPACER for CB744 Concrete Drill Core Cut by Diamond Products
$105.96
108
2903249 SOCKET CAP SCREW M8 x 80 for CB744 Concrete Drill Core Cut by Diamond Products
$6.99
109
2902221 SOCKET CAP SCREW M8 x 65 for CB744 Concrete Drill Core Cut by Diamond Products
$6.99
110
2709103 WRENCH M32 for CB744 Concrete Drill Core Cut by Diamond Products
$48.46
111
6078471 WATER COUPLING for CB744 Concrete Drill Core Cut by Diamond Products
$11.86
112
6078472 FITTING for CB744 Concrete Drill Core Cut by Diamond Products
$3.99
116
2800029 BUTT CONECTORS for CB744 Concrete Drill Core Cut by Diamond Products
$5.99
117
2709727 PANHEAD TAPPING SCREW M4x12 for CB744 Concrete Drill Core Cut by Diamond Products
$2.99
119
2709728 PANHEAD TAPPING SCREW M4x16 for CB744 Concrete Drill Core Cut by Diamond Products
$2.99
120
2709052 WATER FEED CONNECTOR KIT 1/2" for CB744 Concrete Drill Core Cut by Diamond Products
$62.93
122
2709107 Cover 110V/220V for CB733 and CB744 Core Drill by Core Cut Diamond Products
$15.66
125
2709018 STATOR 110V-100 x 54.1 x 75 for CB744 Concrete Drill Core Cut by Diamond Products
$154.44
125
2709109 STATOR 220V-100 x 54.1 x 75 for CB744 Concrete Drill Core Cut by Diamond Products
$130.80
127
6078414 Carbon Brush 7 x 17 x 19 for CB515, CB733 and CB744 Drill by Core Cut Diamond Products
$12.91
127
Diamond Products CARBON BRUSH 220V 6078621
$10.76
17
Call for Price call for price call for price
26
Call for Price call for price call for price
113
Call for Price call for price call for price
118
Call for Price call for price call for price
121
Call for Price call for price call for price
123
Call for Price call for price call for price
124
Call for Price call for price call for price
126
Call for Price call for price call for price
128
Call for Price call for price call for price
