CBA-2504, CBA-3003, CBA-3004, CBA-3504, CW-2504, CW-2504, CW-3004, CW-3004, JCW-3003 Pump Assembly Parts By Mi-T-M

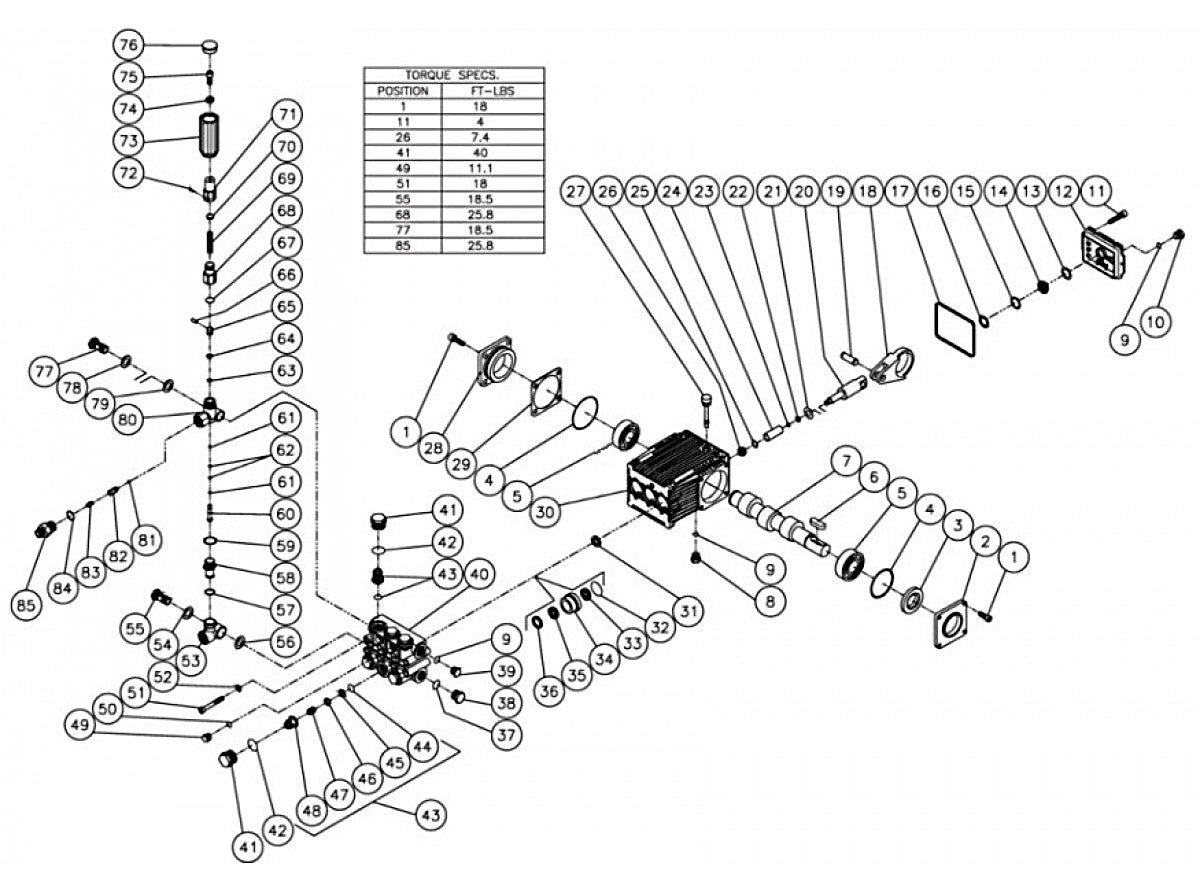

CBA-2504, CBA-3003, CBA-3004, CBA-3504, CW-2504, CW-2504, CW-3004, CW-3004, JCW-3003 Pump Assembly Parts By Mi-T-M

  • CBA-2504, CBA-3003, CBA-3004, CBA-3504, CW-2504, CW-2504, CW-3004, CW-3004, JCW-3003 Pump Assembly Parts By Mi-T-M
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
27-8884 Screw for MiTM Air Compressors by MiTM 278884
$4.43
2
46-0691 Pump Shaft for MiTM Air Compressors by MiTM 460691
$102.89
3
26-0188 Seal Oil for AC2-SH11-30M Air Compressor by Mi-T-M 260188
$52.14
4
25-0380 O-Ring 60 X 2.62Mm for AC2-PE05-30M Air Compressor by Mi-T-M 250380
$19.59
5
48-0072 Non Driven Tap Roller Bearing for AC2-PE05-30M Air Compressor by Mi-T-M 480072
$129.35
5
48-0061 Drive Side Tap Roller Bearing for AC2-PE05-30M Air Compressor by Mi-T-M 480061
$164.78
7
46-1103 Crankshaft for MiTM Air Compressors by MiTM 461103
$368.54
7
46-0692 Crankshaft (Xrca Series) for MiTM Pressure Washers 460692
$605.84
10
39-0086 Plug Brass for MiTM Air Compressors by MiTM 390086
$10.77
39
39-0086 Plug Brass for MiTM Air Compressors by MiTM 390086
$10.77
11
27-8885 Bolt for MiTM Pressure Washers by MiTM 278885
$7.65
18
46-0896 Pump-Connecting Rod-Aluminum for AC2-SH11-30M Air Compressor by Mi-T-M 460896
$60.66
18
46-0696 Pump-Connecting Rod Aluminum for AC2-SH11-30M Air Compressor by Mi-T-M 460696
$126.26
19
46-0698 Pump Piston Pin for AC2-PE05-30M Air Compressor by Mi-T-M 460698
$17.36
20
46-0699 Pump Plunger Rod for AC2-PE05-30M Air Compressor by Mi-T-M 460699
$133.70
21
46-0700 Pump-Slinger Washer for AC2-PE05-30M Air Compressor by Mi-T-M 460700
$5.99
22
25-0404 Backup Ring 8 X 1Mm for AC2-PE05-30M Air Compressor by Mi-T-M 250404
$7.28
23
25-0382 O-Ring for MiTM Air Compressors by MiTM 250382
Call for Price call for price call for price
24
46-0701 Pump Piston Ceramic for AC2-PE05-30M Air Compressor by Mi-T-M 460701
$168.63
25
26-0191 Seal-Washer/Gasket for AC2-PE05-30M Air Compressor by Mi-T-M 260191
$5.99
26
30-6020 Nut for MiTM Air Compressors by MiTM 306020
$19.71
28
46-0703 Pump-Bearing Cap/Support for AC2-PE05-30M Air Compressor by Mi-T-M 460703
$88.83
29
46-0704 Pump Shim .1Mm for AC2-PE05-30M Air Compressor by Mi-T-M 460704
$7.28
29
46-0705 Pump Shim .2Mm for AC2-PE05-30M Air Compressor by Mi-T-M 460705
$7.28
30
46-0811 Pump-Crankcase Xr New Style for AC2-PE05-30M Air Compressor by Mi-T-M 460811
$578.33
31
46-0931 Oil Seal-20 X 28 X 5.5Mm for AC2-PE05-30M Air Compressor by Mi-T-M 460931
$57.15
32
25-0384 O-Ring 31.47 X 1.78Mm for AC2-PE05-30M Air Compressor by Mi-T-M 250384
$8.99
34
46-0708 Pump Packing Retainer for AC2-PE05-30M Air Compressor by Mi-T-M 460708
$58.77
40
46-0711 Pump Manifold Brass for AC2-PE05-30M Air Compressor by Mi-T-M 460711
$862.85
41
39-0095 Cap Valve Brass for AC2-PE05-30M Air Compressor by Mi-T-M 390095
$38.81
49
39-0096 Plug Brass for AC2-PE05-30M Air Compressor by Mi-T-M 390096
$21.80
50
25-0387 O-Ring 10.82 X 1.78Mm for AC2-PE05-30M Air Compressor by Mi-T-M 250387
$4.28
51
27-8440 Screw for MiTM Air Compressors by MiTM 278440
$10.38
52
29-0154 Lockwasher for MiTM Air Compressors by MiTM 290154
$4.43
53
8-0437 Unloader-Inlet Bypass Adaptor for AC2-PR09-30M Air Compressor by Mi-T-M 80437
$141.54
54
8-0440 Unloader Washer W/Seal for AC2-PR09-30M Air Compressor by Mi-T-M 80440
$29.57
55
8-0438 Unloader-Adaptor-Steel for AC2-PR09-30M Air Compressor by Mi-T-M 80438
$67.94
56
8-0439 Unloader Washer W/Seal for AC2-PR09-30M Air Compressor by Mi-T-M 80439
$19.31
58
8-0441 Unloader-Nipple-Bypass Seat for AC2-PR09-30M Air Compressor by Mi-T-M 80441
$109.91
60
8-0442 Unloader Piston for AC2-PR09-30M Air Compressor by Mi-T-M 80442
$126.87
65
8-0443 Unloader-Poppet-Stainless for AC2-PR09-30M Air Compressor by Mi-T-M 80443
$90.33
66
8-0444 Unloader-Pin-Stainless for AC2-PR09-30M Air Compressor by Mi-T-M 80444
$14.42
67
8-0445 Unloader-Spring Button for AC2-PR09-30M Air Compressor by Mi-T-M 80445
$21.80
68
8-0474 Unloader Spring Guide for AC2-PR09-30M Air Compressor by Mi-T-M 80474
$168.63
69
49-0132 Spring Unloader for AC2-PR09-30M Air Compressor by Mi-T-M 490132
$23.24
70
8-0475 Unloader Spring Button for AC2-PR09-30M Air Compressor by Mi-T-M 80475
$67.05
71
8-0476 Unloader Adjustment Barrel for AC2-PR09-30M Air Compressor by Mi-T-M 80476
$169.01
72
8-0477 Unloader Pin Stainless for AC2-PR09-30M Air Compressor by Mi-T-M 80477
$13.20
73
7-0141 Unloader Knob for MiTM Air Compressors by MiTM 70141
$16.95
74
30-3025 Nut for MiTM Air Compressors by MiTM 303025
$7.43
75
27-8433 Bolt for MiTM Air Compressors by MiTM 278433
$12.12
76
7-0142 Unloader Cap for MiTM Air Compressors by MiTM 70142
$7.43
77
8-0448 Adapter for MiTM Air Compressors by MiTM 80448
Call for Price call for price call for price
78
8-0449 Unloader-Washer W/Seal for AC2-PR09-30M Air Compressor by Mi-T-M 80449
$16.64
79
8-0450 Unloader-Washer W/Seal for AC2-PR09-30M Air Compressor by Mi-T-M 80450
$27.72
80
8-0451 Unloader-Body Brass for AC2-PR09-30M Air Compressor by Mi-T-M 80451
$182.00
81
25-0391 O-Ring 4 X 2.5Mm for AC2-SH08-20M Air Compressor by Mi-T-M 250391
$11.93
82
8-0454 Unloader-Check Valve for AC2-PR09-30M Air Compressor by Mi-T-M 80454
$48.74
83
49-0123 Spring Unloader Check Valve for AC2-PR09-30M Air Compressor by Mi-T-M 490123
$11.82
85
24-0159 Adaptor Nipple 1/2Bsp X 3/8Npt for AC2-PR09-30M Air Compressor by Mi-T-M 240159
$68.88
85
70-0177 Kit High Pressure Seal 18Mm for AC2-PE05-30M Air Compressor by Mi-T-M 700177
$243.29
85
70-0178 Kit Support Ring 18Mm for AC2-PE05-30M Air Compressor by Mi-T-M 700178
$48.98
85
70-0319 Kit-Valves (1750 Rpm Pumps) for AC2-SH11-30M Air Compressor by Mi-T-M 700319
$158.85
85
8-0456 Unloader for AC2-PR09-30M Air Compressor by Mi-T-M 80456
$315.63
85
70-0180 Kit Unloader Repair for AC2-PR09-30M Air Compressor by Mi-T-M 700180
$79.82
85
70-0352 Kit-Piston 18Mm for AC2-PE05-30M Air Compressor by Mi-T-M 700352
$374.64
85
70-0321 Kit-Oil Seals for AC2-SH11-30M Air Compressor by Mi-T-M 700321
$168.63
8
39-0102 Plug Brass for AC1-HE02-05M by Mi-T-M 390102
$7.14
9
25-0325 O-Ring 1,78 X 14Mm for AC1-HE02-05M by Mi-T-M 250325
$3.99
12
46-0719 Pump Cover Crankcase for AC1-HE02-05M by Mi-T-M 460719
$75.45
13
25-0370 O-Ring 20.24 X 2.62Mm for AC1-HE02-05M by Mi-T-M 250370
$4.85
14
46-0670 Oil Sight Glass for AC1-HE02-05M by Mi-T-M 460670
$7.76
15
46-0824 Pump Reflector Oil for AC1-HE02-05M by Mi-T-M 460824
$4.85
16
46-0671 Spring Retainer-Oil Sight Glas for AC1-HE02-05M by Mi-T-M 460671
$5.99
17
25-0398 O-Ring 107.62 X 2.62Mm for AC1-HE02-05M by Mi-T-M 250398
$5.99
27
39-0090 Oil Dipstick for AC1-HE02-05M by Mi-T-M 390090
$27.14
37
25-0372 O-Ring 17.5 X 2Mm for AC1-HE02-05M by Mi-T-M 250372
$4.85
84
25-0372 O-Ring 17.5 X 2Mm for AC1-HE02-05M by Mi-T-M 250372
$4.85
38
39-0088 Plug Steel 1/2-14Bspp for AC1-HE02-05M by Mi-T-M 390088
$20.25
42
25-0160 O-Ring 17.86 X 2.62Mm for AC1-HE02-05M by Mi-T-M 250160
$5.99
44
25-0386 O-Ring 15.54 X 2.62Mm for AC1-HE02-05M by Mi-T-M 250386
$4.85
62
25-0371 O-Ring 4.48 X 1.78Mm for AC1-HE02-05M by Mi-T-M 250371
$3.99
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.
