CBA-3003, CBA-3504, CBA-4004, JCW-3003, JCW-3504, JCW-4004, CMB-4004-0MLB Pump Assembly Parts by Mi-T-M

CBA-3003, CBA-3504, CBA-4004, JCW-3003, JCW-3504, JCW-4004, CMB-4004-0MLB Pump Assembly Parts by Mi-T-M

  • CBA-3003, CBA-3504, CBA-4004, JCW-3003, JCW-3504, JCW-4004, CMB-4004-0MLB Pump Assembly Parts by Mi-T-M
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
27-8884 Screw for MiTM Air Compressors by MiTM 278884
$4.43
2
46-0691 Pump Shaft for MiTM Air Compressors by MiTM 460691
$102.89
3
26-0188 Seal Oil for AC2-SH11-30M Air Compressor by Mi-T-M 260188
$52.14
4
25-0380 O-Ring 60 X 2.62Mm for AC2-PE05-30M Air Compressor by Mi-T-M 250380
$19.59
5
48-0061 Drive Side Tap Roller Bearing for AC2-PE05-30M Air Compressor by Mi-T-M 480061
$164.78
6
46-1103 Crankshaft for MiTM Air Compressors by MiTM 461103
$368.54
8
39-0086 Plug Brass for MiTM Air Compressors by MiTM 390086
$10.77
10
27-8885 Bolt for MiTM Pressure Washers by MiTM 278885
$7.65
17
46-0896 Pump-Connecting Rod-Aluminum for AC2-SH11-30M Air Compressor by Mi-T-M 460896
$60.66
18
46-0698 Pump Piston Pin for AC2-PE05-30M Air Compressor by Mi-T-M 460698
$17.36
19
46-0699 Pump Plunger Rod for AC2-PE05-30M Air Compressor by Mi-T-M 460699
$133.70
20
46-0700 Pump-Slinger Washer for AC2-PE05-30M Air Compressor by Mi-T-M 460700
$5.99
21
25-0404 Backup Ring 8 X 1Mm for AC2-PE05-30M Air Compressor by Mi-T-M 250404
$7.28
22
25-0415 O-Ring 7.66 X 1.78Mm for AC2-PE05-30M Air Compressor by Mi-T-M 250415
$4.28
23
46-0701 Pump Piston Ceramic for AC2-PE05-30M Air Compressor by Mi-T-M 460701
$168.63
24
26-0191 Seal-Washer/Gasket for AC2-PE05-30M Air Compressor by Mi-T-M 260191
$5.99
25
30-6020 Nut for MiTM Air Compressors by MiTM 306020
$19.71
27
46-1198 Pump Crankcase for AC2-SH11-30M Air Compressor by Mi-T-M 461198
$246.23
28
48-0072 Non Driven Tap Roller Bearing for AC2-PE05-30M Air Compressor by Mi-T-M 480072
$129.35
29
46-0705 Pump Shim .2Mm for AC2-PE05-30M Air Compressor by Mi-T-M 460705
$7.28
30
46-0704 Pump Shim .1Mm for AC2-PE05-30M Air Compressor by Mi-T-M 460704
$7.28
31
46-0703 Pump-Bearing Cap/Support for AC2-PE05-30M Air Compressor by Mi-T-M 460703
$88.83
32
39-0095 Cap Valve Brass for AC2-PE05-30M Air Compressor by Mi-T-M 390095
$38.81
34
46-0937 Complete Valve (See 70-0319) for MiTM Pressure Washers 460937
$83.10
36
29-0154 Lockwasher for MiTM Air Compressors by MiTM 290154
$4.43
37
27-8440 Screw for MiTM Air Compressors by MiTM 278440
$10.38
38
46-1186 Pump Manifold Brass for AC2-SH11-30M Air Compressor by Mi-T-M 461186
$535.01
39
46-0710 Support Ring (See Kit 70-0178) for MiTM Pressure Washers by MiTM 460710
$21.14
40
46-0709 V Packing (See Kit 70-0177) for MiTM Pressure Washers by MiTM 460709
$102.14
41
46-0708 Pump Packing Retainer for AC2-PE05-30M Air Compressor by Mi-T-M 460708
$58.77
42
46-0707 Low Pressure Seal (See Kit 70-0177) for MiTM Pressure Washers by MiTM 460707
$72.24
43
25-0384 O-Ring 31.47 X 1.78Mm for AC2-PE05-30M Air Compressor by Mi-T-M 250384
$8.99
44
46-0931 Oil Seal-20 X 28 X 5.5Mm for AC2-PE05-30M Air Compressor by Mi-T-M 460931
$57.15
44
70-0321 Kit-Oil Seals for AC2-SH11-30M Air Compressor by Mi-T-M 700321
$168.63
44
70-0352 Kit-Piston 18Mm for AC2-PE05-30M Air Compressor by Mi-T-M 700352
$374.64
44
70-0177 Kit High Pressure Seal 18Mm for AC2-PE05-30M Air Compressor by Mi-T-M 700177
$243.29
44
70-0178 Kit Support Ring 18Mm for AC2-PE05-30M Air Compressor by Mi-T-M 700178
$48.98
44
70-0319 Kit-Valves (1750 Rpm Pumps) for AC2-SH11-30M Air Compressor by Mi-T-M 700319
$158.85
7
43-0091 Key 8 X 7 X 40Mm for AC1-HE02-05M by Mi-T-M 430091
$12.87
9
25-0325 O-Ring 1,78 X 14Mm for AC1-HE02-05M by Mi-T-M 250325
$3.99
11
46-0719 Pump Cover Crankcase for AC1-HE02-05M by Mi-T-M 460719
$75.45
12
25-0370 O-Ring 20.24 X 2.62Mm for AC1-HE02-05M by Mi-T-M 250370
$4.85
13
46-0670 Oil Sight Glass for AC1-HE02-05M by Mi-T-M 460670
$7.76
14
46-0824 Pump Reflector Oil for AC1-HE02-05M by Mi-T-M 460824
$4.85
15
46-0671 Spring Retainer-Oil Sight Glas for AC1-HE02-05M by Mi-T-M 460671
$5.99
16
25-0398 O-Ring 107.62 X 2.62Mm for AC1-HE02-05M by Mi-T-M 250398
$5.99
26
39-0090 Oil Dipstick for AC1-HE02-05M by Mi-T-M 390090
$27.14
33
25-0160 O-Ring 17.86 X 2.62Mm for AC1-HE02-05M by Mi-T-M 250160
$5.99
35
25-0386 O-Ring 15.54 X 2.62Mm for AC1-HE02-05M by Mi-T-M 250386
$4.85
View full details

Frequently asked questions

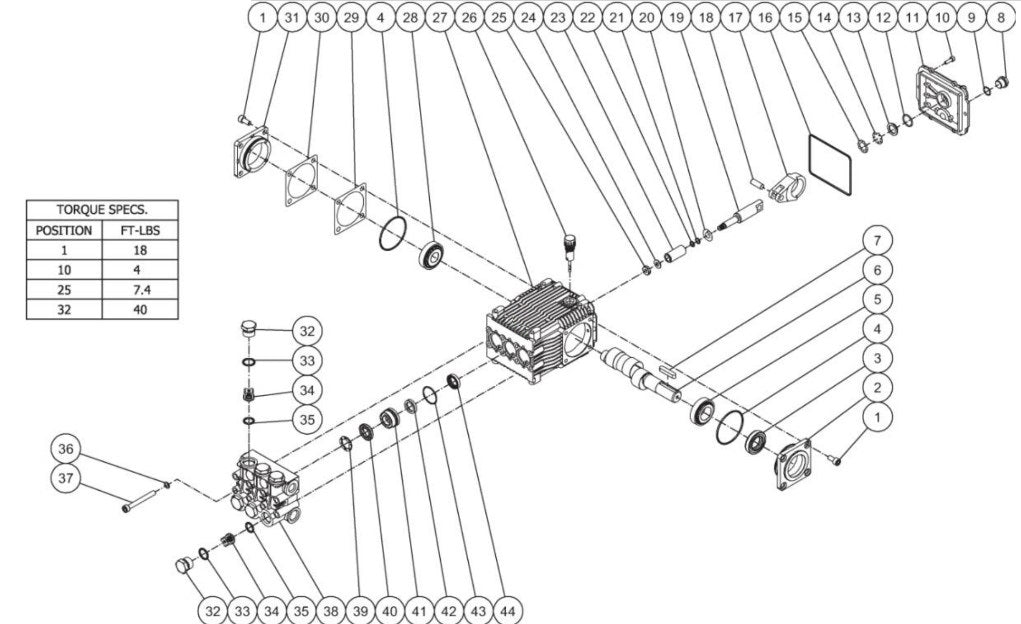

How do I use this diagram?
