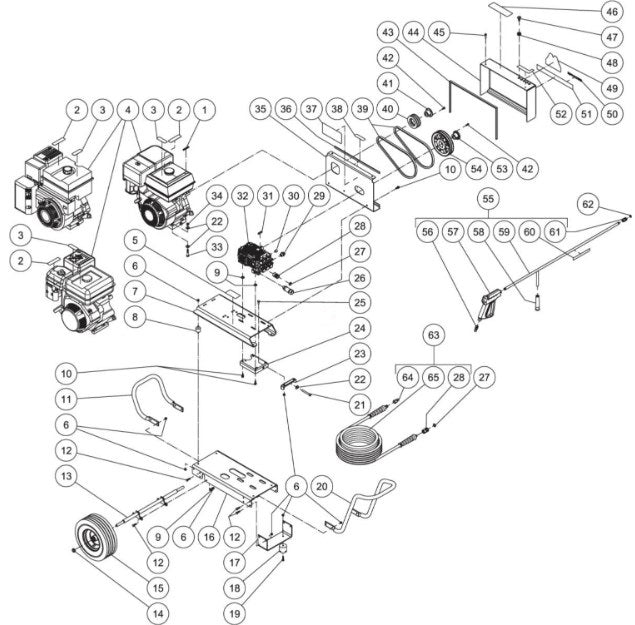

CBA-3504-0MHB (sn:10239172-10734403), CBA-3504-0MVB (sn:10239172-99999999) Frame Assembly Parts by Mi-T-M

CBA-3504-0MHB (sn:10239172-10734403), CBA-3504-0MVB (sn:10239172-99999999) Frame Assembly Parts by Mi-T-M

  • CBA-3504-0MHB (sn:10239172-10734403), CBA-3504-0MVB (sn:10239172-99999999) Frame Assembly Parts by Mi-T-M
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
43-0078 Key 1/4 Sq X 2-1/8 for MiTM Air Compressors by MiTM 430078
$17.49
4
1-0086 Engine Honda 13Hp Recoil for AC2-PH08-30M Air Compressor by Mi-T-M 10086
$1,902.75
4
1-0090 Engine Vanguard 13 Hp Recoil for AC2-PH08-20M  Air Compressor by Mi-T-M 10090
$1,990.04
4
1-0156 Engine (Subaru) for MiTM Air Compressors by MiTM 10156
Call for Price call for price call for price
6
30-0157 Locknut for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 300157
$2.85
7
5-0223 Isolation Plate for MiTM Air Compressors by MiTM 50223
$201.00
8
14-0097 Vibration Isolator 1-1/4 Dia X 1 Height for MiTM Air Compressors by MiTM 140097
$9.50
9
28-0022 Flatwasher for MiTM Air Compressors by MiTM 280022
$5.18
11
7-0183 Rear Handle for MiTM Air Compressors by MiTM 70183
$113.01
13
20-0864 Axle for MiTM Air Compressors by MiTM 200864
Call for Price call for price call for price
14
30-0117 Nut for MiTM Air Compressors by MiTM 300117
$4.43
15
14-0006 Wheel-13 White-Super Duty for MiTM Air Compressors by MiTM 140006
$128.67
16
5-0222 Baseplate for MiTM Air Compressors by MiTM 50222
$178.47
17
56-0054 Support Bracket for MiTM Air Compressors by MiTM 560054
$60.90
18
14-0008 Isolator 2" Od X 1.75 for AC2-PR09-30M Air Compressor by Mi-T-M 140008
$11.49
19
27-0068 Bolt for MiTM Air Compressors by MiTM 270068
$4.43
20
7-018201 Front Handle for MiTM Air Compressors by MiTM 7018201
$177.44
23
21-0218 Tension Bracket for MiTM Air Compressors by MiTM 210218
$38.52
24
21-0220 Tension Bracket for MiTM Air Compressors by MiTM 210220
$95.03
26
19-0206 Filter-Inlet 1/2Mx3/4F Garden for AC1-PH55-08M (After S/N 20000951) Air Compressor by Mi-T-M 190206
$45.71
27
25-0123 O-Ring 1/2 X 11/16 for AC1-HE15-05M Air Compressor by Mi-T-M 250123
$1.99
28
17-0004 Qc 3/8F X 3/8 Socket Brass for AC1-HE15-05M Air Compressor by Mi-T-M 170004
$16.25
30
23-0244 Plug 3/8 Hex Socket Head Brass for AC1-PR07-20M Air Compressor by Mi-T-M 230244
$19.70
32
3-0268 Obsolete See 3-0308 & 8-0631 for AC2-SH11-30M Air Compressor by Mi-T-M 30268
Call for Price call for price call for price
35
6-0106 Beltguard Back for MiTM Air Compressors by MiTM 60106
$112.95
36
33-0433 Edging *(Two Feet Required) for MiTM Air Compressors by MiTM 330433
$8.93
43
33-0433 Edging *(Two Feet Required) for MiTM Air Compressors by MiTM 330433
$8.93
39
11-0031 Cog Belt Ax35 for AC2-SV11-30M Air Compressor by Mi-T-M 110031
$37.11
40
10-0074 Sheave 2Ak39H for AC2-SH11-30M Air Compressor by Mi-T-M 100074
$73.82
44
6-0107 Beltguard Cover for MiTM Air Compressors by MiTM 60107
Call for Price call for price call for price
45
27-8898 Bolt for MiTM Air Compressors by MiTM 278898
$4.43
47
18-0028 Nozzle- 0004 for MiTM Air Compressors by MiTM 180028
$10.85
47
18-0029 Nozzle- 1504 for MiTM Air Compressors by MiTM 180029
$10.85
47
18-0030 Nozzle- 2504 for MiTM Air Compressors by MiTM 180030
$10.85
47
18-0031 - Nozzle- 4004 for MiTM Air Compressors by MiTM 180031
$10.85
50
34-2215 Decal - Die Cut for MiTM Pressure Washers by MiTM 342215
Call for Price call for price call for price
51
34-2187 Decal - 17” Stripe for MiTM Air Compressors by MiTM 342187
$21.06
52
34-0500 Decal- Nozzles 0, 15, 25, 40 for MiTM Air Compressors by MiTM 340500
Call for Price call for price call for price
54
10-0035 Sheave 2Ak74H for AC2-PR09-08AB Air Compressor by Mi-T-M 100035
$119.25
55
851-0371 Gun/Black Wand Grip W/Qc for AM1-PH65-20M Air Compressor by Mi-T-M 8510371
$196.02
56
17-0005 Qc 3/8M X 3/8 Plug Ss for AC1-HE15-05M Air Compressor by Mi-T-M 170005
$16.25
58
7-0002 Handle Grip For Wand for MiTM Air Compressors by MiTM 70002
$8.67
59
16-0439 Wand-45" W/Handle Chrome for AM1-PH65-20M Air Compressor by Mi-T-M 160439
$44.61
61
17-0001 Qc 1/4F X 1/4 Socket Brass for AC2-PR09-30M Air Compressor by Mi-T-M 170001
$19.94
62
25-0122 O-Ring 3/8 X 9/16 for AC2-PR09-30M Air Compressor by Mi-T-M 250122
$2.99
63
851-0338 Hose 3/8"X50' 4000Psi R1 Gray for AC1-HE15-05M Air Compressor by Mi-T-M 8510338
Call for Price call for price call for price
65
15-0209 Hose 3/8X50' 4000Psi R1 Gray for AC1-HE15-05M Air Compressor by Mi-T-M 150209
$151.52
65
34-9017 Safety Decal Kit (Inc. 2-3, 40-41, 49, 63) for MiTM Air Compressors by MiTM 349017
Call for Price call for price call for price
10
27-9524 Bolt for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 279524
$1.99
12
27-0067 Bolt for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 270067
$1.99
21
27-0576 Bolt for ABS Air Compressor by Mi-T-M 270576
Call for Price call for price call for price
22
28-0023 Washer for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 280023
$1.99
25
27-0066 Bolt for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 270066
$1.99
29
22-0005 Valve-Thermal Relief 1/2M 145F for AC1-HE02-05M by Mi-T-M 220005
$20.68
31
43-0091 Key 8 X 7 X 40Mm for AC1-HE02-05M by Mi-T-M 430091
$12.87
33
27-0121 Bolt for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 270121
$1.99
34
30-0159 Locknut for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 300159
$2.85
41
9-0005 Bushing for ABS Air Compressor by Mi-T-M 90005
$21.01
42
27-0015 Bolt for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 270015
$1.99
48
33-0001 Grommet 1/2Id X 3/4Gd-1/8Gw for AC1-HE02-05M by Mi-T-M 330001
$1.99
49
34-2169 Decal - Mi-T-M for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 342169
$1.99
53
9-0017 Pump Bushing H24Mm Spc for AC1-HE02-05M by Mi-T-M 90017
$21.01
57
16-0001 Trigger Gun 5000 Psi for AC1-HE02-05M by Mi-T-M 160001
$63.36
64
17-0006 Qc 3/8F X 3/8 Plug Ss for AC1-HE02-05M by Mi-T-M 170006
$22.62
