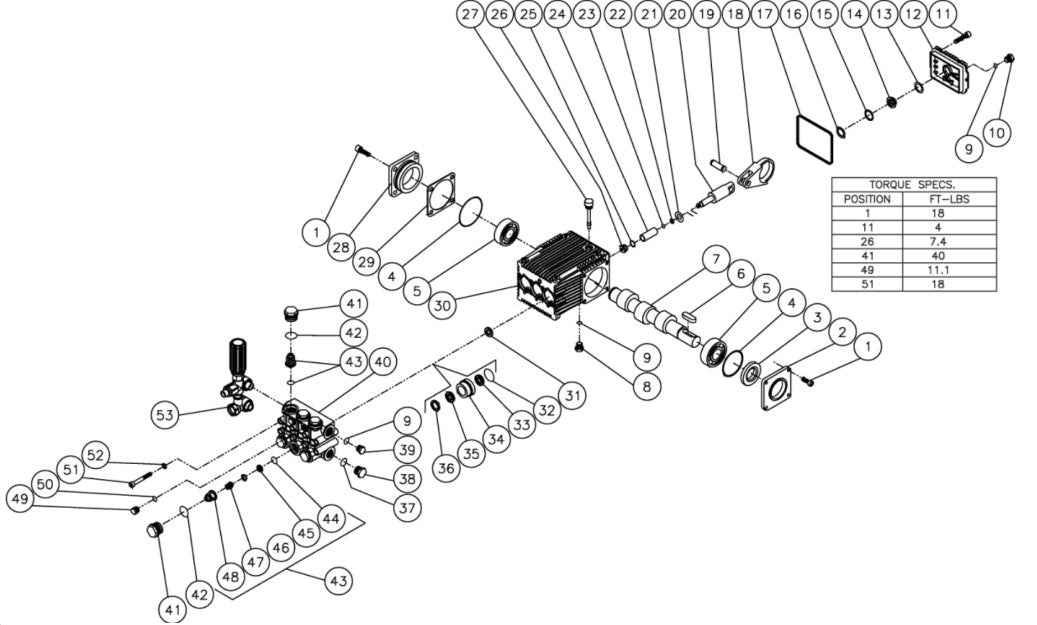

CBA-4004-0MHB, CBA-4004-0MRB, JCW-4003-0MHB, JCW-4004-0MVB, JCW-4004-1MHB Pump Assembly Parts by Mi-T-M

CBA-4004-0MHB, CBA-4004-0MRB, JCW-4003-0MHB, JCW-4004-0MVB, JCW-4004-1MHB Pump Assembly Parts by Mi-T-M

  • CBA-4004-0MHB, CBA-4004-0MRB, JCW-4003-0MHB, JCW-4004-0MVB, JCW-4004-1MHB Pump Assembly Parts by Mi-T-M
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
27-8884 Screw for MiTM Air Compressors by MiTM 278884
$4.43
2
46-0691 Pump Shaft for MiTM Air Compressors by MiTM 460691
$102.89
3
26-0188 Seal Oil for AC2-SH11-30M Air Compressor by Mi-T-M 260188
$52.14
4
25-0380 O-Ring 60 X 2.62Mm for AC2-PE05-30M Air Compressor by Mi-T-M 250380
$19.59
5
48-0072 Non Driven Tap Roller Bearing for AC2-PE05-30M Air Compressor by Mi-T-M 480072
$129.35
7
46-1103 Crankshaft for MiTM Air Compressors by MiTM 461103
$368.54
10
39-0086 Plug Brass for MiTM Air Compressors by MiTM 390086
$10.77
18
46-0922 Connecting Rod Bronze for AC2-PH08-08M Air Compressor by Mi-T-M 460922
$146.01
19
46-0698 Pump Piston Pin for AC2-PE05-30M Air Compressor by Mi-T-M 460698
$17.36
20
46-0699 Pump Plunger Rod for AC2-PE05-30M Air Compressor by Mi-T-M 460699
$133.70
21
46-0700 Pump-Slinger Washer for AC2-PE05-30M Air Compressor by Mi-T-M 460700
$5.99
22
25-0404 Backup Ring 8 X 1Mm for AC2-PE05-30M Air Compressor by Mi-T-M 250404
$7.28
23
25-0382 O-Ring for MiTM Air Compressors by MiTM 250382
Call for Price call for price call for price
24
46-0701 Pump Piston Ceramic for AC2-PE05-30M Air Compressor by Mi-T-M 460701
$168.63
25
26-0191 Seal-Washer/Gasket for AC2-PE05-30M Air Compressor by Mi-T-M 260191
$5.99
26
30-6020 Nut for MiTM Air Compressors by MiTM 306020
$19.71
28
46-0703 Pump-Bearing Cap/Support for AC2-PE05-30M Air Compressor by Mi-T-M 460703
$88.83
29
46-0704 Pump Shim .1Mm for AC2-PE05-30M Air Compressor by Mi-T-M 460704
$7.28
29
46-0705 Pump Shim .2Mm for AC2-PE05-30M Air Compressor by Mi-T-M 460705
$7.28
30
46-0811 Pump-Crankcase Xr New Style for AC2-PE05-30M Air Compressor by Mi-T-M 460811
$578.33
31
46-0931 Oil Seal-20 X 28 X 5.5Mm for AC2-PE05-30M Air Compressor by Mi-T-M 460931
$57.15
32
25-0384 O-Ring 31.47 X 1.78Mm for AC2-PE05-30M Air Compressor by Mi-T-M 250384
$8.99
34
46-0708 Pump Packing Retainer for AC2-PE05-30M Air Compressor by Mi-T-M 460708
$58.77
38
39-0103 Plug Nickel 1/2-14Bspp for AM2-HE15-120M Air Compressor by Mi-T-M 390103
$37.76
39
39-0104 Plug Nickel 3/8-19Bspp for AM2-HE15-120M Air Compressor by Mi-T-M 390104
$21.54
41
39-0105 Cap Valve Stainless Steel for AM2-HE15-120M Air Compressor by Mi-T-M 390105
$35.09
49
39-0096 Plug Brass for AC2-PE05-30M Air Compressor by Mi-T-M 390096
$21.80
50
25-0387 O-Ring 10.82 X 1.78Mm for AC2-PE05-30M Air Compressor by Mi-T-M 250387
$4.28
51
27-8440 Screw for MiTM Air Compressors by MiTM 278440
$10.38
52
29-0154 Lockwasher for MiTM Air Compressors by MiTM 290154
$4.43
53
8-0533 Unloader Assy W/ Qc & Banjo Bolts for MiTM Air Compressors by MiTM 80533
$135.08
-
70-0321 Kit-Oil Seals for AC2-SH11-30M Air Compressor by Mi-T-M 700321
$168.63
-
70-0352 Kit-Piston 18Mm for AC2-PE05-30M Air Compressor by Mi-T-M 700352
$374.64
-
70-0177 Kit High Pressure Seal 18Mm for AC2-PE05-30M Air Compressor by Mi-T-M 700177
$243.29
-
70-0178 Kit Support Ring 18Mm for AC2-PE05-30M Air Compressor by Mi-T-M 700178
$48.98
-
70-0319 Kit-Valves (1750 Rpm Pumps) for AC2-SH11-30M Air Compressor by Mi-T-M 700319
$158.85
6
43-0091 Key 8 X 7 X 40Mm for AC1-HE02-05M by Mi-T-M 430091
$12.87
8
39-0102 Plug Brass for AC1-HE02-05M by Mi-T-M 390102
$7.14
9
25-0325 O-Ring 1,78 X 14Mm for AC1-HE02-05M by Mi-T-M 250325
$3.99
12
46-0719 Pump Cover Crankcase for AC1-HE02-05M by Mi-T-M 460719
$75.45
13
25-0370 O-Ring 20.24 X 2.62Mm for AC1-HE02-05M by Mi-T-M 250370
$4.85
14
46-0670 Oil Sight Glass for AC1-HE02-05M by Mi-T-M 460670
$7.76
15
46-0824 Pump Reflector Oil for AC1-HE02-05M by Mi-T-M 460824
$4.85
16
46-0671 Spring Retainer-Oil Sight Glas for AC1-HE02-05M by Mi-T-M 460671
$5.99
17
25-0398 O-Ring 107.62 X 2.62Mm for AC1-HE02-05M by Mi-T-M 250398
$5.99
27
39-0090 Oil Dipstick for AC1-HE02-05M by Mi-T-M 390090
$27.14
37
25-0372 O-Ring 17.5 X 2Mm for AC1-HE02-05M by Mi-T-M 250372
$4.85
42
25-0160 O-Ring 17.86 X 2.62Mm for AC1-HE02-05M by Mi-T-M 250160
$5.99
44
25-0386 O-Ring 15.54 X 2.62Mm for AC1-HE02-05M by Mi-T-M 250386
$4.85
11
27-8885 Bolt for MiTM Pressure Washers by MiTM 278885
$7.65
40
46-0813 Manifold for MiTM Pressure Washers 460813
$1,345.13
