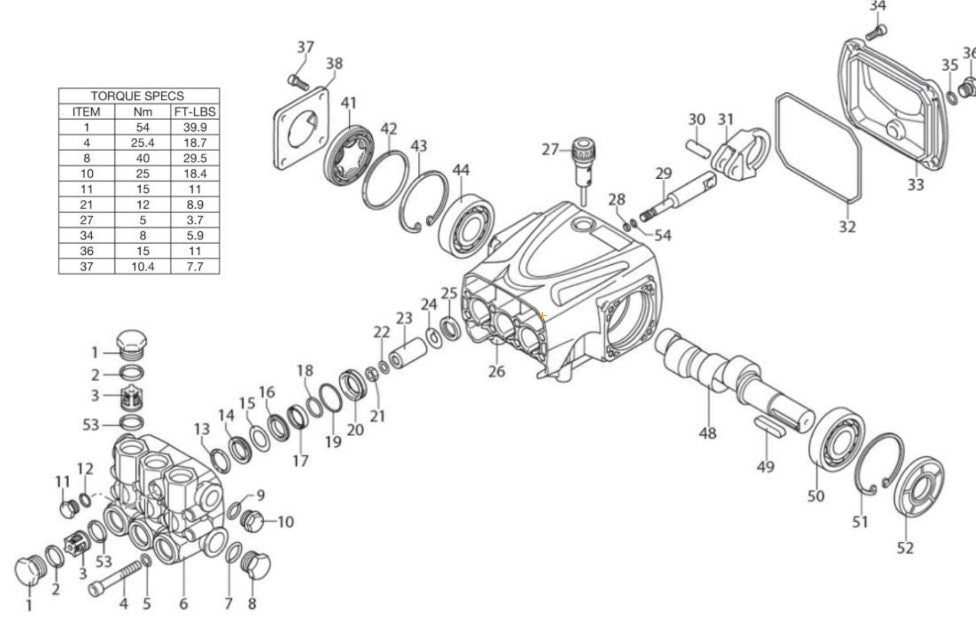

CBA-4004-1FHA (sn:10826178-99999999) Pump Assembly Parts by Mi-T-M

CBA-4004-1FHA (sn:10826178-99999999) Pump Assembly Parts by Mi-T-M

  • CBA-4004-1FHA (sn:10826178-99999999) Pump Assembly Parts by Mi-T-M
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
39-0251 Valve Cap-Stainless Steal for MiTM Pressure Washers by MiTM 390251
$83.60
3
46-0937 Complete Valve (See 70-0319) for MiTM Pressure Washers 460937
$83.10
4
27-0905 Head Bolt for MiTM Pressure Washers 270905
$19.98
5
29-0154 Lockwasher for MiTM Air Compressors by MiTM 290154
$4.43
8
39-0202 Plug for MiTM Pressure Washers by MiTM 390202
$28.80
9
25-0510 O-Ring I.D. 14X1.75Mm for AC2-SH11-30M Air Compressor by Mi-T-M 250510
$7.28
11
39-0096 Plug Brass for AC2-PE05-30M Air Compressor by Mi-T-M 390096
$21.80
36
39-0096 Plug Brass for AC2-PE05-30M Air Compressor by Mi-T-M 390096
$21.80
12
25-0387 O-Ring 10.82 X 1.78Mm for AC2-PE05-30M Air Compressor by Mi-T-M 250387
$4.28
35
25-0387 O-Ring 10.82 X 1.78Mm for AC2-PE05-30M Air Compressor by Mi-T-M 250387
$4.28
19
25-0149 O-Ring 23.52 X 1.78Mm for AP1-PI55-08M (AFTER S/N 20005741) Air Compressor by Mi-T-M 250149
$7.28
21
30-6016 Nut for MiTM Air Compressors by MiTM 306016
$8.75
23
46-0921 Piston for MiTM Pressure Washers 460921
$257.81
24
28-1027 Slinger Washer for MiTM Air Compressors by MiTM 281027
$8.93
33
46-1482 Rear Cover for MiTM Pressure Washers by MiTM 461482
$122.96
34
27-8408 Hhcs-Tcei M6 X 16Mm Tapping for MiTM Pressure Washers by MiTM 278408
$7.49
37
27-8888 Screw for MiTM Air Compressors by MiTM 278888
$8.93
38
46-1453 Crankcase Cover for MiTM Pressure Washers by MiTM 461453
$55.40
41
46-1686 Oil Level Indicator (See Kit 70-0690) for MiTM Pressure Washers by MiTM 461686
$59.97
43
46-1484 Snap Ring for MiTM Pressure Washers by MiTM 461484
$25.49
51
46-1484 Snap Ring for MiTM Pressure Washers by MiTM 461484
$25.49
44
48-0094 Ball Bearing for MiTM Pressure Washers by MiTM 480094
$78.78
50
48-0087 Ball Bearing (See Kit 70-0690) for MiTM Pressure Washers by MiTM 480087
$68.40
54
25-0395 Backup Ring 5 X 8 X 1Mm for AC2-SH08-20M Air Compressor by Mi-T-M 250395
$9.15
7
25-0372 O-Ring 17.5 X 2Mm for AC1-HE02-05M by Mi-T-M 250372
$4.85
10
39-0102 Plug Brass for AC1-HE02-05M by Mi-T-M 390102
$7.14
22
26-0187 Washer/Gasket for AC1-HE02-05M by Mi-T-M 260187
$3.99
25
26-0193 Seal Oil for AC1-HE02-05M by Mi-T-M 260193
$22.85
27
39-0090 Oil Dipstick for AC1-HE02-05M by Mi-T-M 390090
$27.14
28
25-0371 O-Ring 4.48 X 1.78Mm for AC1-HE02-05M by Mi-T-M 250371
$3.99
53
25-0386 O-Ring 15.54 X 2.62Mm for AC1-HE02-05M by Mi-T-M 250386
$4.85
-
70-0319 Kit-Valves (1750 Rpm Pumps) for AC2-SH11-30M Air Compressor by Mi-T-M 700319
$158.85
-
70-0620 Water Seals for MiTM Pressure Washers 700620
$248.43
-
70-0621 Oil Seals for MiTM Pressure Washers 700621
$98.13
-
70-0592 O-Rings for MiTM Pressure Washers 700592
Call for Price call for price call for price
-
70-0563 Support Ring for MiTM Pressure Washers 700563
$61.17
-
70-0623 Piston Guide for MiTM Pressure Washers 700623
$182.75
View full details
