CBA-4004-1FHC/1MHC/1MCK/1MCM (sn:0-99999999) Pump Assembly Parts by Mi-T-M

CBA-4004-1FHC/1MHC/1MCK/1MCM (sn:0-99999999) Pump Assembly Parts by Mi-T-M

  • CBA-4004-1FHC/1MHC/1MCK/1MCM (sn:0-99999999) Pump Assembly Parts by Mi-T-M
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
2
43-0027 Pump Key 6Sq X 3Dlg-St-Rd Ends for MiTM Pressure Washers 430027
$25.50
5
27-1407 Srew - Hhc, Sems (M6X16) for MiTM Pressure Washers 271407
$20.40
8
46-1801 Cover - Bearing for MiTM Pressure Washers 461801
$171.63
10
25-0718 O-Ring - Bearing Cover, 70D for MiTM Pressure Washers by MiTM 250718
$30.00
15
48-0110 Bearing - Ball, Outer for MiTM Pressure Washers by MiTM 480110
$131.49
20
46-1837 Rod - Connecting Assy for MiTM Pressure Washers 461837
$319.22
25
46-1836 Crankshaft (M20) for MiTM Pressure Washers 461836
$1,445.67
30
46-1802 Cover - Bearing for MiTM Pressure Washers 461802
$266.39
31
46-1803 Cap - Vented W/O-Ring ( Rain Cap) for MiTM Pressure Washers 461803
$109.86
33
25-0199 O-Ring Cap for AC1-PR07-20M Air Compressor by Mi-T-M 250199
$8.76
37
22-0123 Gauge Bubble Oil W/Gasket for AC1-PR07-20M Air Compressor by Mi-T-M 220123
$42.87
38
26-0139 Gasket Flat Flexible for AC1-PR07-20M Air Compressor by Mi-T-M 260139
$14.15
40
27-1406 Screw - Hhc (M6X16) for MiTM Pressure Washers by MiTM 271406
$7.71
48
39-0050 Plug - Drain (1/4”X19Bsp) for MiTM Pressure Washers by MiTM 390050
$12.75
49
25-0181 O-Ring - Drain Plug, 70D for MiTM Pressure Washers by MiTM 250181
$7.49
50
46-1806 Cover - Rear for MiTM Pressure Washers 461806
$270.80
51
25-0719 O-Ring - Rear Cover for MiTM Pressure Washers 250719
Call for Price call for price call for price
53
46-1807 Crankcase for MiTM Pressure Washers 461807
$621.39
64
43-0170 Pin - Crosshead for MiTM Pressure Washers 430170
$105.78
65
46-1808 Rod - Plunger for MiTM Pressure Washers 461808
$279.59
70
26-0425 Seal - Oil, Crankcase, 70D for MiTM Pressure Washers 260425
$85.29
75
46-1809 Slinger - Barrier for MiTM Pressure Washers 461809
$45.87
88
28-0139 Washer - Keyhole (M18X10) for MiTM Pressure Washers 280139
$7.49
98
28-0140 Washer Seal - Plunger Reatier, 90D (See 70-0733) for MiTM Pressure Washers by MiTM 280140
$32.31
99
27-1405 Retainer - Plunger W/Stud (M6) for MiTM Pressure Washers 271405
$56.07
100
46-1810 Retainer - Seal for MiTM Pressure Washers 461810
$45.87
106
26-0426 Seal - Lps W/Ss-Spg (See 70-0731) for MiTM Pressure Washers 260426
$138.33
120
46-1811 Case - Seal (Press-In-Style) for MiTM Pressure Washers 461811
$217.74
121
25-0720 O-Ring - Seal Case, 70D (See 70-0731) for MiTM Pressure Washers 250720
$61.17
122
46-1812 Ring - Support for MiTM Pressure Washers 461812
$50.97
125
26-0427 Seal - Hps (See 70-0731) for MiTM Pressure Washers 260427
$239.97
128
46-1813 Adapter - Male (See 70-0731) for MiTM Pressure Washers 461813
$50.97
160
25-0726 O-Ring - Inlet Seat, 70D (See 70-0734) for MiTM Pressure Washers 250726
$25.50
161
26-0428 Seat Inlet (See 70-0734) for MiTM Pressure Washers 260428
$120.63
162
46-1814 Back-Up-Ring - Discharge Seat (See 70-0734) for MiTM Pressure Washers 461814
$76.16
163
25-0721 O-Ring - Discharge Seat, 70D (See 70-0734) for MiTM Pressure Washers 250721
$30.60
164
46-1815 Seat - Discharge (See 70-0734) for MiTM Pressure Washers 461815
$148.58
166
46-1816 Valve (See 70-0732) for MiTM Pressure Washers by MiTM 461816
$55.40
167
46-1817 Spring (See 70-0734) for MiTM Pressure Washers 461817
$40.77
168
46-1818 Retainer - Spring, Inlet (See 70-0734) for MiTM Pressure Washers 461818
$50.97
169
46-0312 Retainer - Spring (See 70-0732) for MiTM Pressure Washers by MiTM 460312
$20.39
172
25-0722 O-Ring - Valve Plug, 80D (See 70-0734) for MiTM Pressure Washers 250722
$35.67
174
39-0403 Plug - Valve for MiTM Pressure Washers 390403
$251.04
185
46-1819 Manifold - Head for MiTM Pressure Washers 461819
$2,606.72
188
27-1410 Screw - Hsh (M8X107) for MiTM Pressure Washers 271410
$73.86
View full details

Frequently asked questions

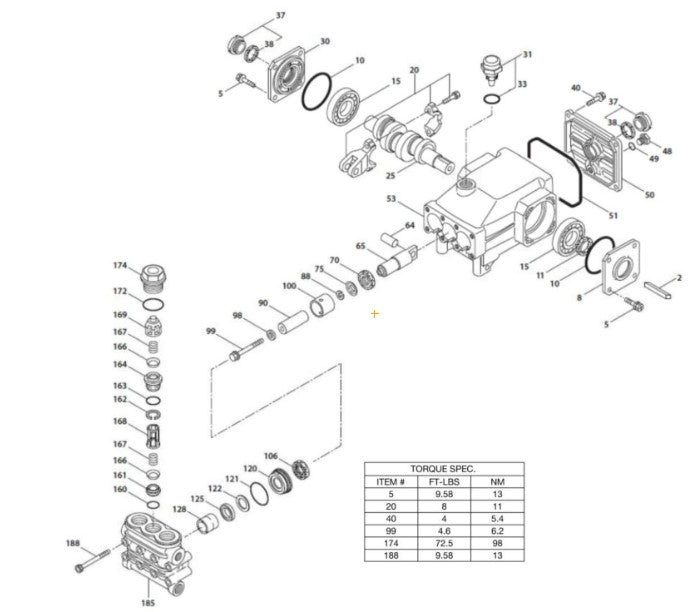

How do I use this diagram?
