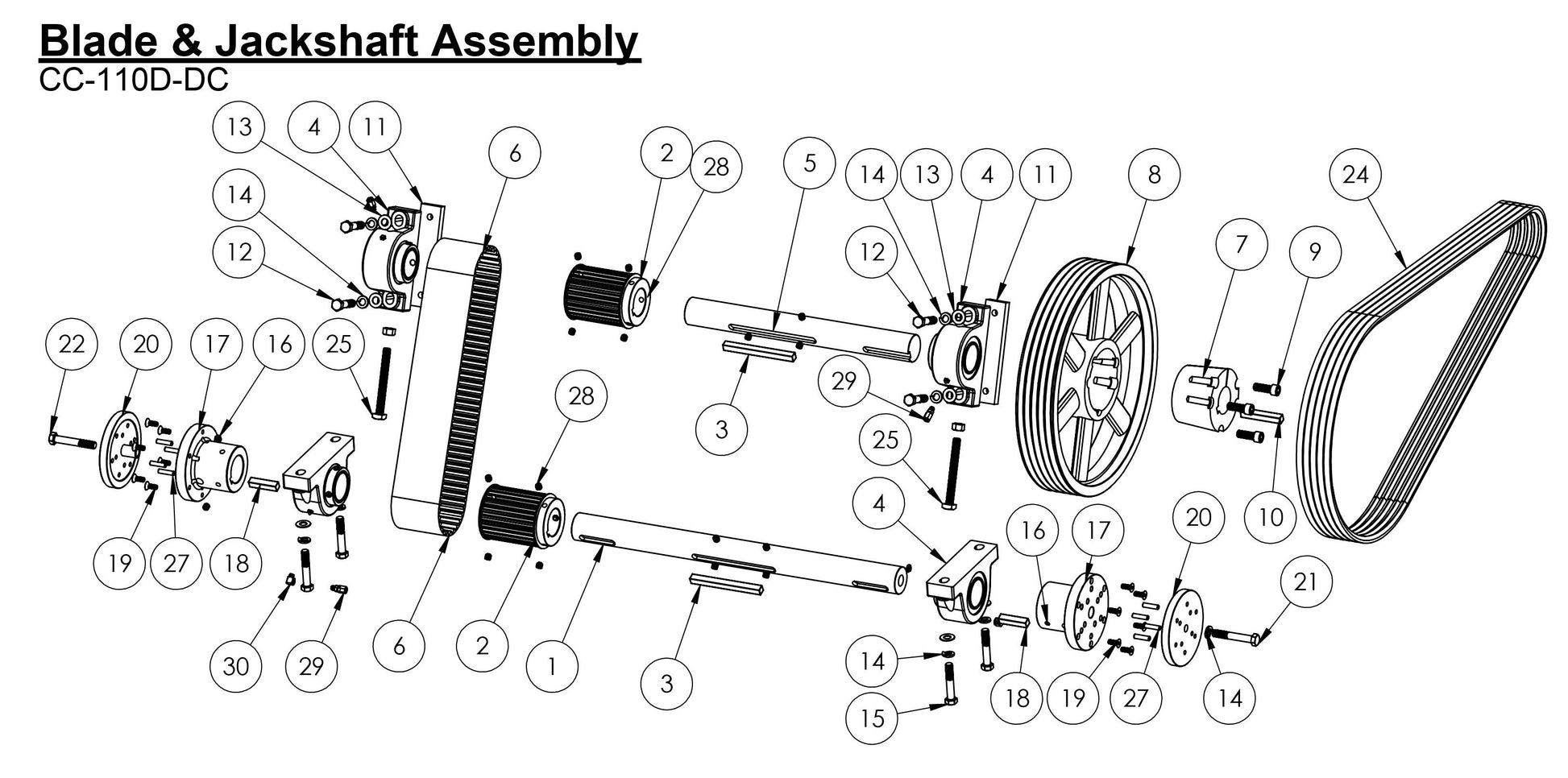

CC-110D-DC Blade & Jackshaft Assembly Parts

CC-110D-DC Blade & Jackshaft Assembly Parts

  • CC-110D-DC Blade & Jackshaft Assembly Parts
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
5
2503452 Jack Shaft 22 1/2" Long for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$577.17
6
2502776 Belt for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$2,239.38
7
2503332 Bushing for 21" Sheave for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$495.00
8
2503331 Sheave Jack Shaft 21" for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$1,935.45
10
2503466 Key for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$26.90
11
2503529 Bearing Spacer for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$111.00
13
2900202 5/8 SAE Flat Washer for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$3.99
14
2900113 5/8 SPLIT LOCK WASHER for CS-2000-100 CURB SAW Core Cut by Diamond Products
$2.99
18
2503470 Key for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$15.07
22
2900130 5/8" - 11 x 4" Left Hand for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$30.88
23
2900006 Lock Washer 3/8" Split for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
25
2903121 Set Screw, Sq. Hd., 5/8-11 x 6" for CG-1 MINI-GROOVER Core Cut by Diamond Products
$38.74
29
3201276 1/4" Compression Tube Fitting for CC3500J Concrete Saw Core Cut by Diamond Products
$12.00
30
3200156 Street Elbow, 1/8" NPT for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$8.18
1
2503451 Blade Shaft for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$757.35
2
2502886 2 1/2" Sheave for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$1,980.00
3
2503469 Key for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$19.37
4
2503329 Blade Shaft Bearings for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$1,450.35
15
Diamond Products 5/8-11 X 3-1/2 CAP SCREW 2903115
$10.26
16
Diamond Products 1/2-20X1/2 CP SET SCREW 2907086
$4.99
17
Diamond Products INNER BLADE FLANGE, COMBO CC-110D-DC COMBO PATTERN, 6017062
$1,070.19
19
2903052 Blade Mount Bolts for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$7.64
20
Diamond Products DC OUTER BLADE FLANGE COMBO 6017063
$795.96
21
2900146 Cap Screw, Hex Hd., 5/8-11 x 4" for CC3520E/CC3530E Concrete Saw Core Cut by Diamond Products
$15.86
24
Diamond Products BELT (5VX1000) 2506430
$196.02
27
Diamond Products 3/8 DIA X 1-1/2 DOWEL PIN 2903155
$10.44
9
Call for Price call for price call for price
12
Call for Price call for price call for price
26
Call for Price call for price call for price
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.
