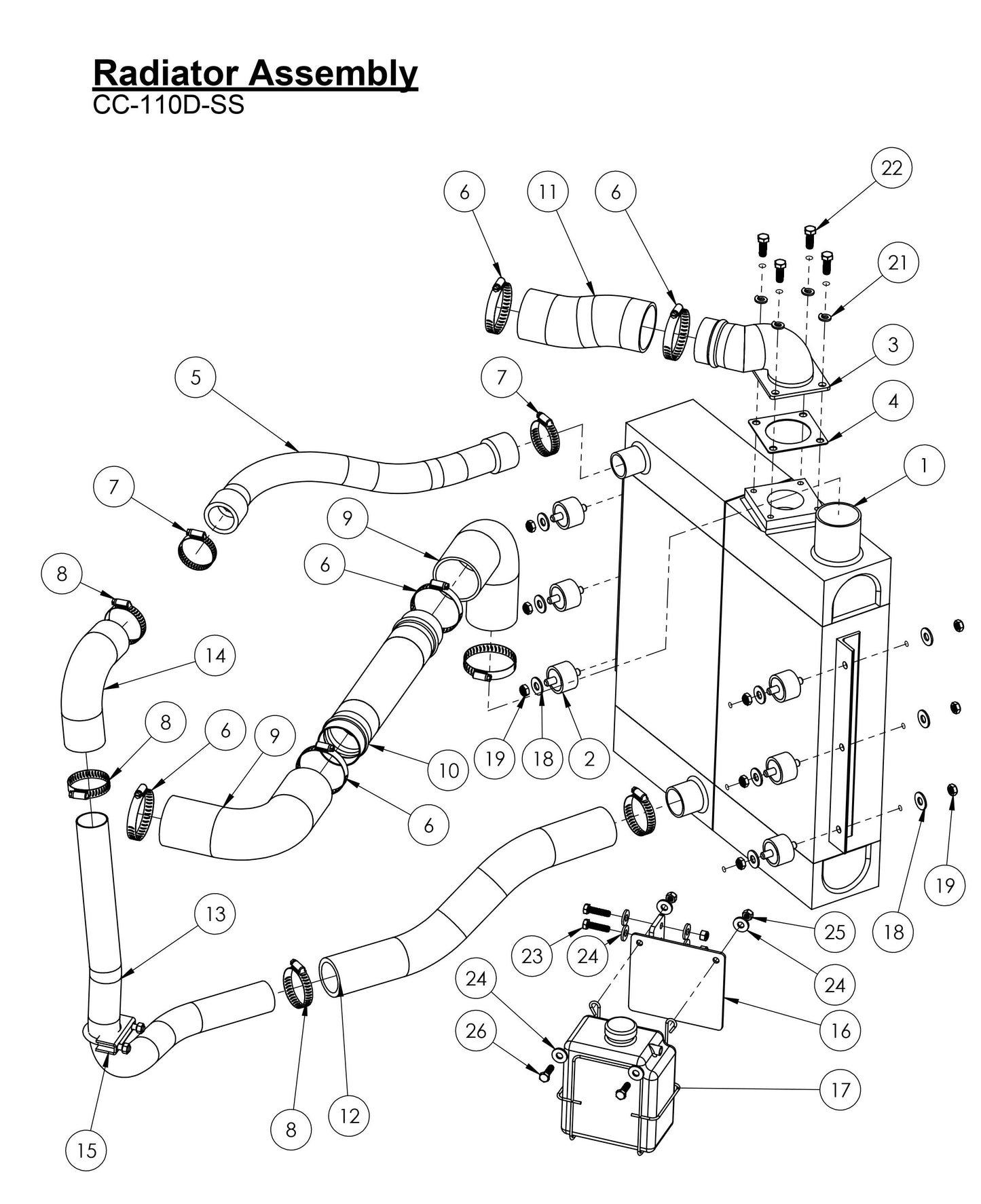

CC-110D-SS/CC-110D-DC Radiator Assembly Parts

CC-110D-SS/CC-110D-DC Radiator Assembly Parts

Skip to product information
1 of 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
7
2503263 2" Hose Clamps for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
Call for Price call for price call for price
8
2503263 2" Hose Clamps for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
Call for Price call for price call for price
17
2502624 Coolant Tank for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$112.00
18
2903018 3/8" Flat Washer for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$2.99
19
2901988 3/8-16 Nylon Insert Thin Nut for CS-2000-100 CURB SAW Core Cut by Diamond Products
$3.99
20
2900013 3/8-16 X 1.25" Hex Cap Screw for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$2.99
21
2900006 Lock Washer 3/8" Split for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
22
2900005 Cap Screw Hex Hd. for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
23
2900217 5/16"-18 x 1.25" Hex Cap Screw for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$2.99
24
2900567 5/16" Flat Washer for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$2.99
25
2900039 5/16"-18 Nylock Hex Nut for CC1000 Concrete Saw Core Cut by Diamond Products
$2.99
26
2900138 5/16-18x1.00 HEX CAP SCREW for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$2.99
1
Diamond Products RAD/CAL COOLER ASSEMBLY 2708009
$2,737.35
2
Diamond Products ISOLATOR/NEOPRENE 2802760
$31.21
4
Diamond Products GASKET/TOP BONNET 2502542
$126.72
5
Diamond Products UPPER RAD HOSE (CUMMINS) 2707318
$85.39
6
Diamond Products 2-1/4-3-1/8 CT CLAMP 3205560
$44.12
9
Diamond Products 2 1/2" CAC 90 HOSE 2506458
$342.54
10
Diamond Products AIR INTAKE PIPE CC110 6078042
$227.70
11
Diamond Products CHARGE AIR HOSE 2-1/2- STRAIGHT 2707325
$133.65
12
Diamond Products LOWER RAD HOSE (CUMMINS) 2707320
$74.40
14
Diamond Products UPPER 90 DEGREE HOSE (CUMMINS) F 2707319
$50.58
15
Diamond Products MUFFLER CLAMP 1-3/4" CC4144D 2503909
$10.76
16
Diamond Products CUMMINS110 COOLANT BTL MT 6075146
$149.49
3
Call for Price call for price call for price
13
Call for Price call for price call for price
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.
