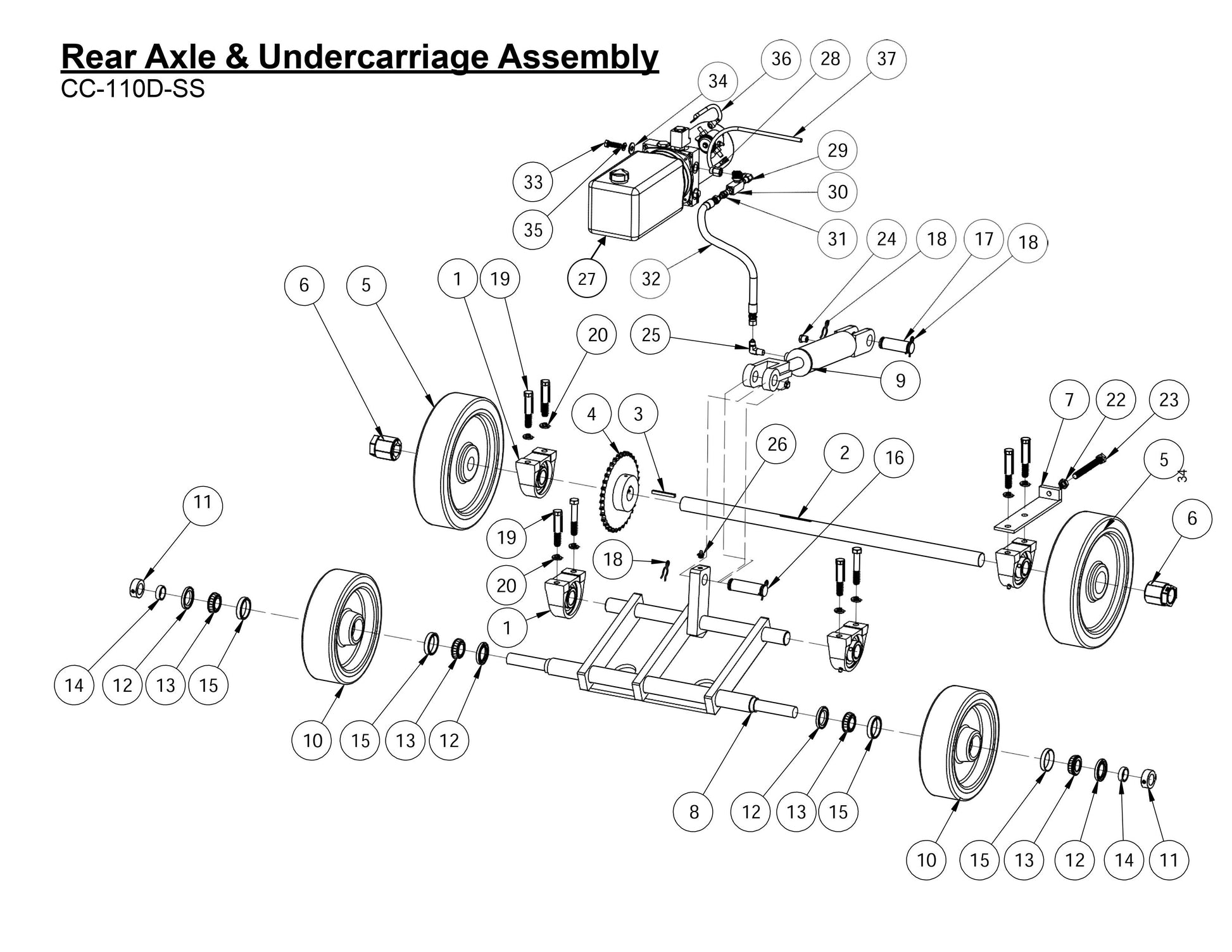

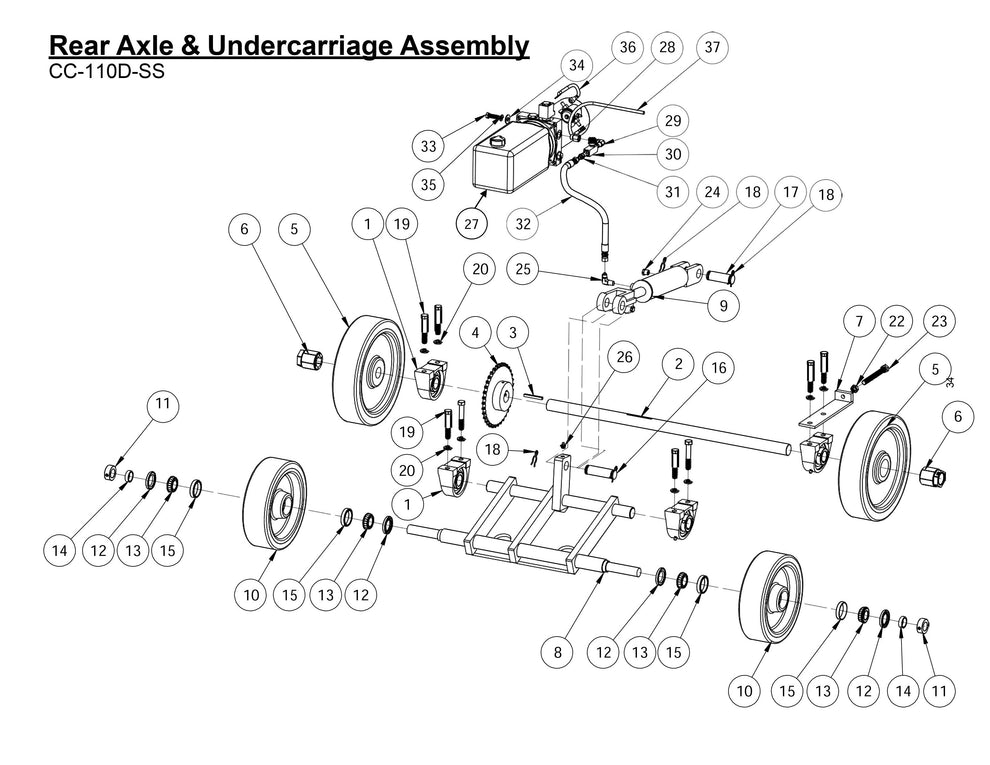

CC-110D-SS Rear Axle & Undercarriage Assembly Parts

CC-110D-SS Rear Axle & Undercarriage Assembly Parts

  • CC-110D-SS Rear Axle & Undercarriage Assembly Parts
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
2500158 Pillow Block Bearing 1-1/4" for CC1113-XL Concrete Saw Core Cut by Diamond Products
$47.11
5
2502644 12" Rear Wheels for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$810.81
6
2500874 Trantorque Bushing, 1-1/4" for CC6540E CONCRETE SAW Core Cut by Diamond Products
$155.43
7
2503383 Axle Adjuster for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$95.94
10
2502645 10" Front Wheel Seals & Bearings for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$538.56
11
2500009 Set Collar, 1" ID for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$15.00
13
2501628 Bearing L44643 for HS-16-12 HyDRAULic HAND SAW Core Cut by Diamond Products
$57.03
15
2501629 Bearing Race L44610 for HS-16-12 HyDRAULic HAND SAW Core Cut by Diamond Products
$27.98
16
6010119 Cylinder Pin, 1" Dia. x 3-1/2" Long for CC6561 Concrete Saw Core Cut by Diamond Products
$22.90
17
6010031 Cylinder Pin, 1" Dia. x 3" Long for CC6561 Concrete Saw Core Cut by Diamond Products
$21.64
18
2900064 Hair Pin Cotter, 3/4" for CC3535 Concrete Saw Core Cut by Diamond Products
$2.99
19
2900693 Cap Screw, Hex Hd., 1/2-13 x 3" for CC200 DUAL HEAD FLOOR GRINDER Core Cut by Diamond Products
$6.42
20
2900084 1/2 SPLIT LOCK WASHER for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$2.99
24
3200727 1/4" NPT Breather for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$20.45
25
3200057 Elbow, 1/4" M. Pipe to 1/4" M. JIC for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$9.37
26
2900062 Grease Fitting, 1/8" NPT for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$3.99
28
3200605 Fitting, 3/8" O-Ring - 1/4" F. Pipe for CC6160D Rear Pivot Saw Core Cut by Diamond Products
Call for Price call for price call for price
33
2900013 3/8-16 X 1.25" Hex Cap Screw for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$2.99
34
2903018 3/8" Flat Washer for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$2.99
35
2900006 Lock Washer 3/8" Split for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
2
Diamond Products AXLE SHAFT FOR 30" WIDE SAWS 2503514
$225.72
3
6048134 Key, 1/4" Sq. x 2-1/4" for CB18BV-XL Hydraulic Power Unit Core Cut by Diamond Products
$3.99
8
Diamond Products UNDERCARRIAGE, CC-110D-SS 2503387
$1,018.75
9
2500178 Hydraulic Cylinder for CC6540E CONCRETE SAW Core Cut by Diamond Products
$396.99
12
2501494 CR Seal for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$25.67
14
2702949 Front Wheel Spacers for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$2.99
22
2900026 Lock Nut 1/2-13 Nylon for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
27
Diamond Products LIFT PUMP ASSEMBLY 2502658
$2,520.54
30
Diamond Products FLOW CONTROL 2502657
$208.89
29
3200604 Fiting, 1/4" M. Pipe 90 Deg. Elbow fits CC6160D by Core Cut Diamond Products
$11.46
4
Call for Price call for price call for price
21
Call for Price call for price call for price
23
Call for Price call for price call for price
31
Call for Price call for price call for price
32
Call for Price call for price call for price
36
Call for Price call for price call for price
37
Call for Price call for price call for price
View full details
