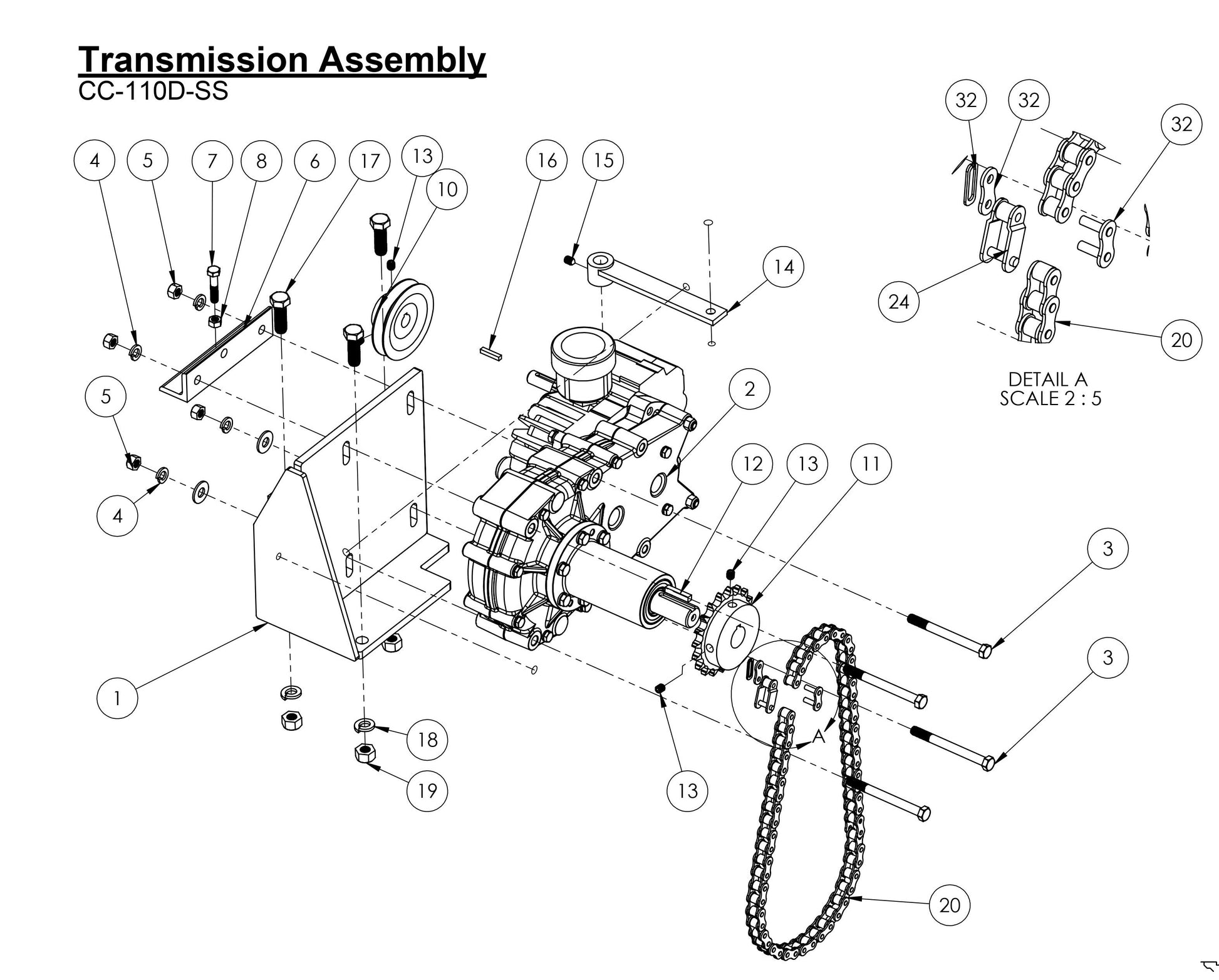

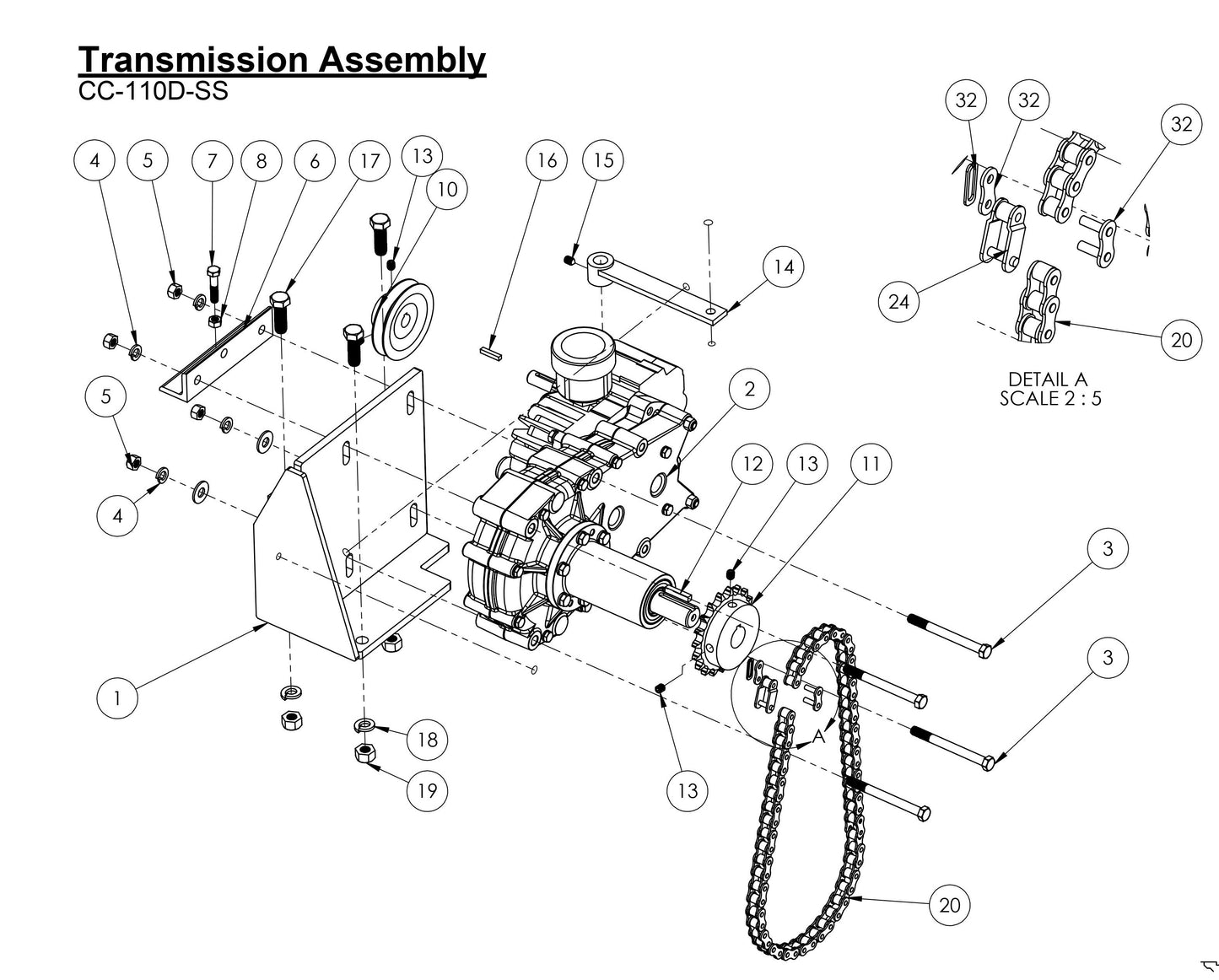

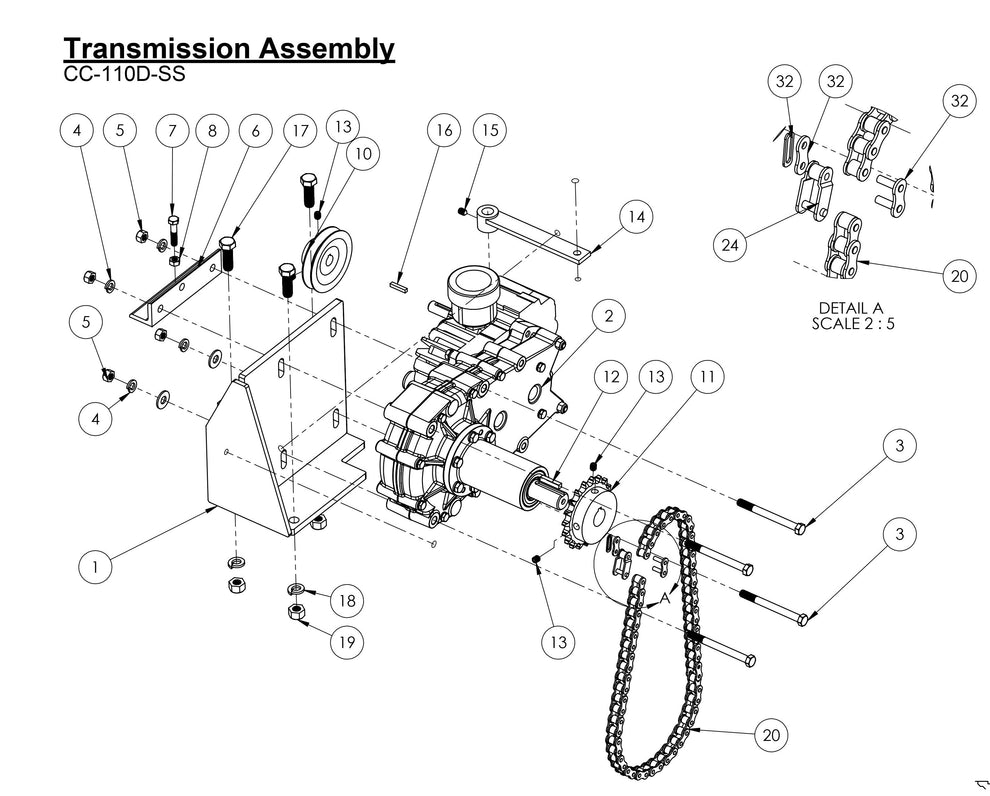

CC-110D-SS Transmission Assembly Parts

CC-110D-SS Transmission Assembly Parts

  • CC-110D-SS Transmission Assembly Parts
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
3
2900160 Cap Screw, Hex Hd., 3/8-16 x 4" for CC6540E CONCRETE SAW Core Cut by Diamond Products
$4.99
4
2900006 Lock Washer 3/8" Split for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
5
2900033 3/8-16 HEX NUT for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$2.99
6
6010120 Chain Tensioning Bracket for CC6540E CONCRETE SAW Core Cut by Diamond Products
$40.99
7
2900508 5/16-18 x 1.50" Hex Head Cap Screw for CG-2 Mini Groover (ELECTRIC) Core Cut by Diamond Products
$2.99
8
2900141 5/16-18 MEDIUM DUTY HEX NUT for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$2.99
9
2903018 3/8" Flat Washer for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$2.99
10
6011037 Transmission Pulley 3.5" for CC6540E CONCRETE SAW Core Cut by Diamond Products
$177.21
11
6010127 Transmission Sprocket 19 Tooth for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$113.18
12
6010169 Key, 1/4" Sq. x 1-1/4" for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$2.99
14
6010129 Shift Lever for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$70.52
16
6010170 Key, 3/16" Sq. x 1" for CG-1 MINI-GROOVER Core Cut by Diamond Products
$2.99
17
2900499 1/2-13x1.50 HEX CAP SCREW for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$3.99
18
2900084 1/2 SPLIT LOCK WASHER for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$2.99
19
2900037 Hex Nut, 1/2-13 for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$2.99
25
2502665 #50 Master Link for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$13.09
1
Diamond Products TRANNY MOUNT BRACKET 2503374
$381.25
2
Diamond Products DPI TRANSMISSION ASSEMBLY, INCLUDES PUMP(2708117) & TRANSAXLE(6018265) 6018235
$5,328.18
13
Diamond Products 5/16-18 X 3/8 SET SCREW 2907062
$2.99
20
Diamond Products SS #50 CHAIN X 34" 6078996
$119.79
15
2900429 Set Screw, Soc. Hd., 5/16-24 x 1/2" for CC6540E CONCRETE SAW Core Cut by Diamond Products
$6.99
24
Diamond Products HALF LINK/OFF SET LINK #50 CHAIN 2503357
$25.83
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.

Do you accept returns?

Yes, most new, uninstalled items can be returned under our standard policy. Please see our Returns & Refunds Policy for eligibility, timeframes, and any exceptions.
