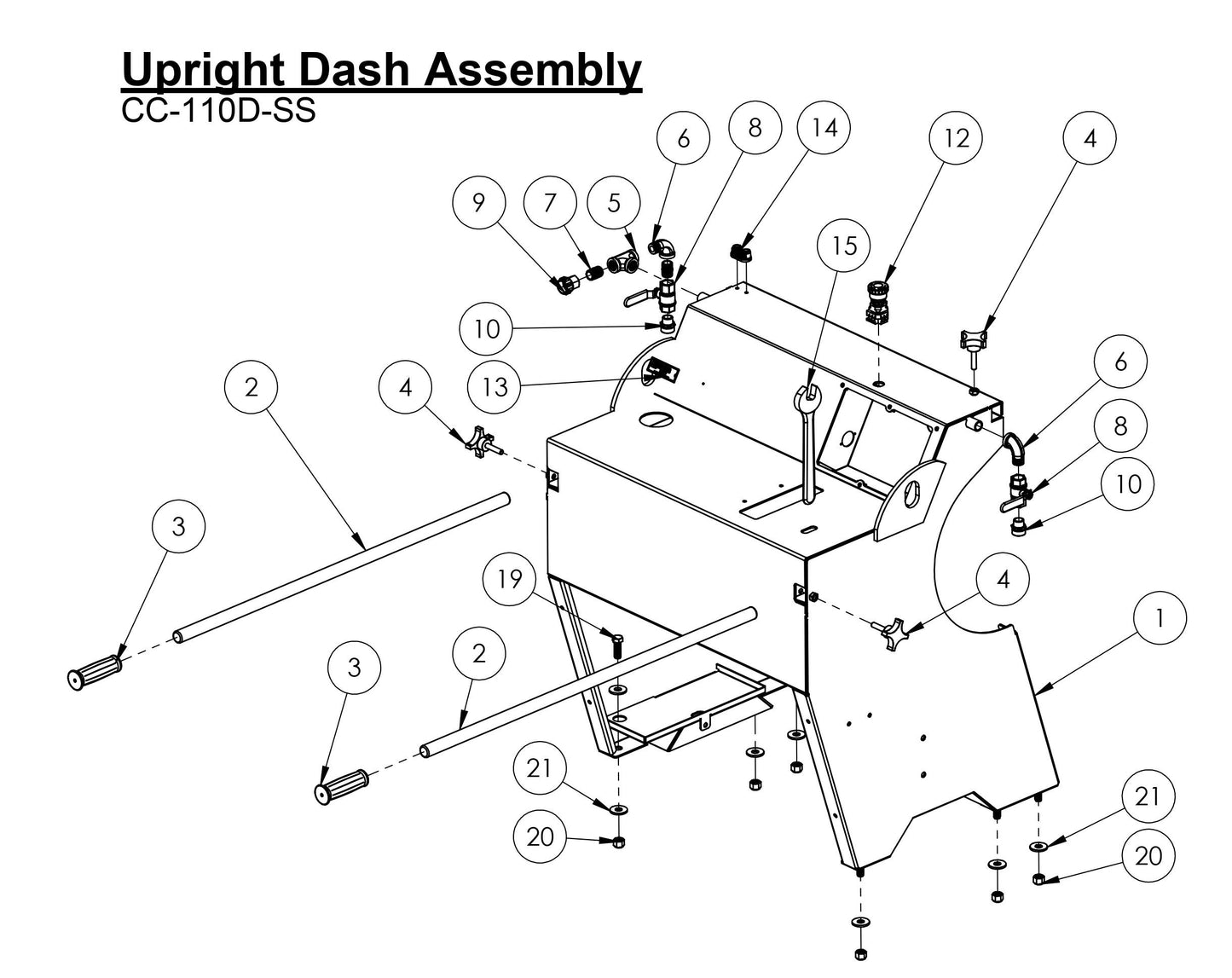

CC-110D-SS Upright Dash Assembly Parts

CC-110D-SS Upright Dash Assembly Parts

  • CC-110D-SS Upright Dash Assembly Parts
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
2
6010014 Handle Bar 36" Long 36" Long for CC5555-3 Concrete Saw Core Cut by Diamond Products
$60.60
3
2500636 Handle Grip for CC5555-3 Concrete Saw Core Cut by Diamond Products
$32.64
4
2900234 Hand Lock Knob, 3/8"-16 for CC1000 Concrete Saw Core Cut by Diamond Products
$10.49
5
3200045 Pipe Tee, 1/2" NPT for CC3500J Concrete Saw Core Cut by Diamond Products
$10.76
6
3200013 Street Elbow, 1/2" NPT for CC1100 Concrete Saw Core Cut by Diamond Products
$13.26
7
3200598 Close Nipple, 1/2" NPT, Brass for CG-1 MINI-GROOVER Core Cut by Diamond Products
$8.21
8
3200027 Water Valve fits Core Cut CC1300XL Concrete Floor Saw by Diamond Products
$55.99
9
3200595 Fitting, 1/2" F. Pipe to 3/4" F. Garden for CG-1 MINI-GROOVER Core Cut by Diamond Products
$22.60
10
3200155 Fitting, 1/2" M. Pipe to 3/4" M. Garden fits Core Cut CC1300XL Concrete Floor Saw by Diamond Products
$11.99
11
2702714 Cushion Clamp for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
Call for Price call for price call for price
12
2801367 E-Stop Switch for CC5555-3 Concrete Saw Core Cut by Diamond Products
$81.10
13
1800169 DP S/N Nameplate for HS-16-12 HyDRAULic HAND SAW Core Cut by Diamond Products
$21.24
14
2501427 Cable Cleat for CC3520E/CC3530E Concrete Saw Core Cut by Diamond Products
$100.02
15
2500211 Wrench, 15/16" Open End for WS25 Wire Saw Core Cut by Diamond Products
$111.00
16
2900138 5/16-18x1.00 HEX CAP SCREW for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$2.99
17
2900039 5/16"-18 Nylock Hex Nut for CC1000 Concrete Saw Core Cut by Diamond Products
$2.99
18
2900567 5/16 inch Flat Washer USS (7/8 inch OD) for CW Hand Saw by Diamond Products
$2.99
19
2900499 1/2-13x1.50 HEX CAP SCREW for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$3.99
20
2900026 1/2-13 Nylon-Insert Hex Locknut for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$2.99
21
2900127 1/2" USS Flat Washer for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$2.99
1
Diamond Products CC-110D-SS UPRIGHT FRAME 2503366
$3,195.00
View full details
