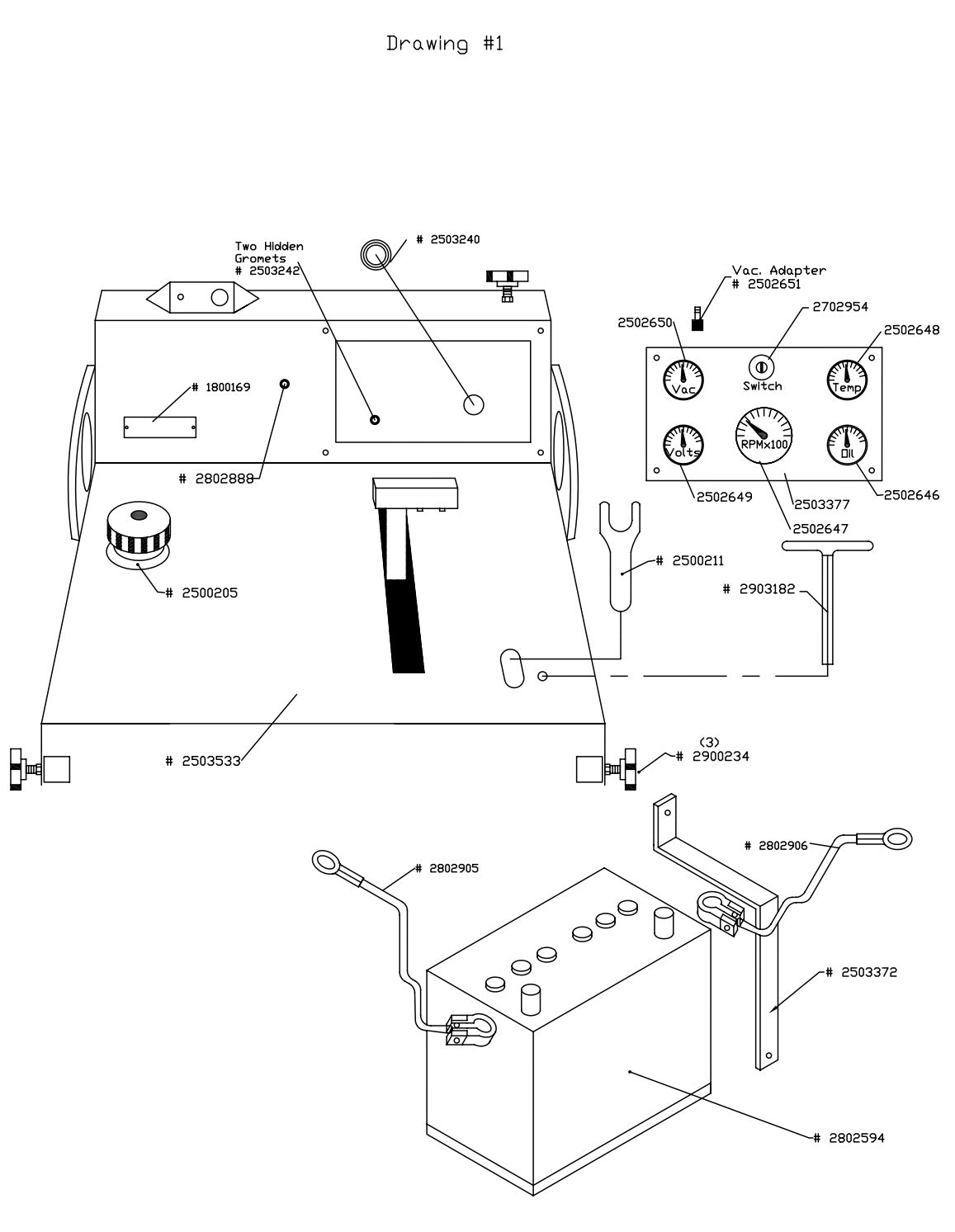

CC-DC-SS Parts List Drawing - 1

CC-DC-SS Parts List Drawing - 1

  • CC-DC-SS Parts List Drawing - 1
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
1800169 Serial Number Tag for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$21.24
2
2500205 Fuel Tank Grommet for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$6.91
3
2500211 Wrench for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$111.00
4
2502646 Oil Pressure Guage for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$185.13
5
2502647 Tach/Hour Meter for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$1,082.07
6
2502648 Temp Guage for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$113.00
7
2502649 Volt Meter for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$357.39
8
2502650 Vacuum Guage for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$203.94
9
2502651 Adapter for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$33.36
10
2503240 Grommet for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$6.99
11
2503242 Grommet for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
Call for Price call for price call for price
12
2503372 Battery Tie Down for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$83.81
13
2503377 Dash Panel for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
Call for Price call for price call for price
14
2503533 Upright Frame 30" for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$3,526.38
15
2702954 Ignition Switch for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$113.00
16
2802594 Battery for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
Call for Price call for price call for price
17
2802888 Switch for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$85.01
18
2802905 Positive Battery Cable for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
Call for Price call for price call for price
19
2802906 Negative Battery Cable for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
Call for Price call for price call for price
20
2900234 Handle Bar Locks for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$10.49
21
2903182 T-Handle Hex Key for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$32.28
