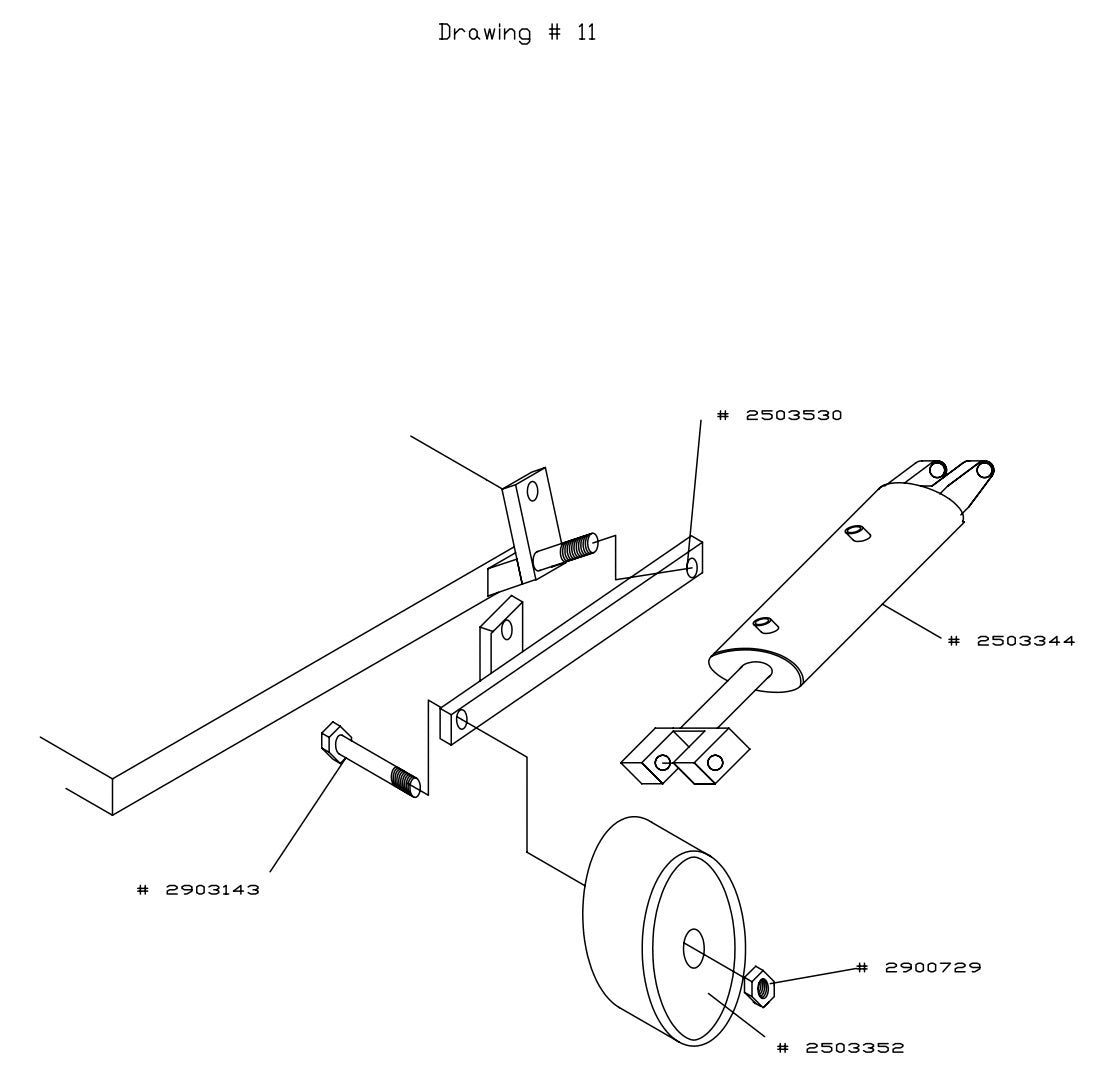

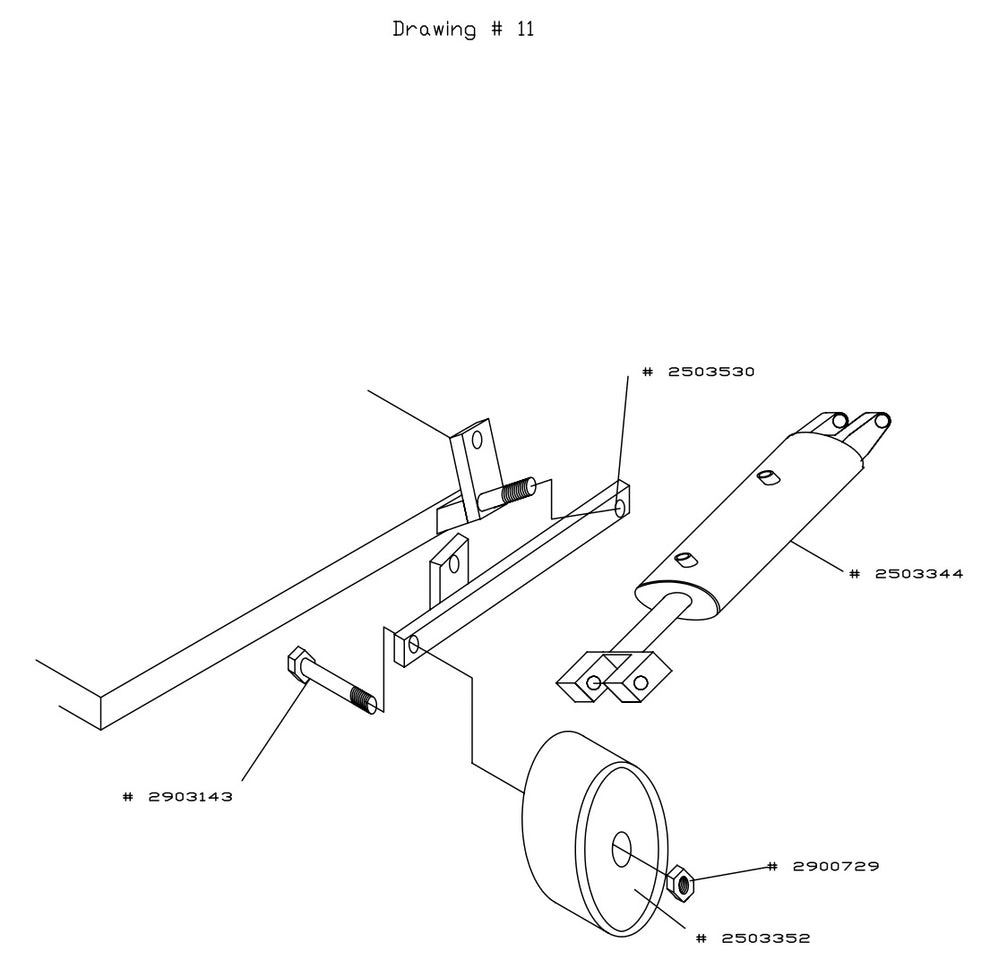

CC-DC-SS Parts List Drawing - 11

CC-DC-SS Parts List Drawing - 11

  • CC-DC-SS Parts List Drawing - 11
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
2503344 Cylinder for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$1,247.40
2
2503352 Boggie Wheel for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
Call for Price call for price call for price
3
2503530 Boggie Wheel Weldment for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$219.78
4
2900729 3/4-10 Nut for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$4.99
5
2903143 3/4-10 x 4 1/2 Bolt for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$21.52
