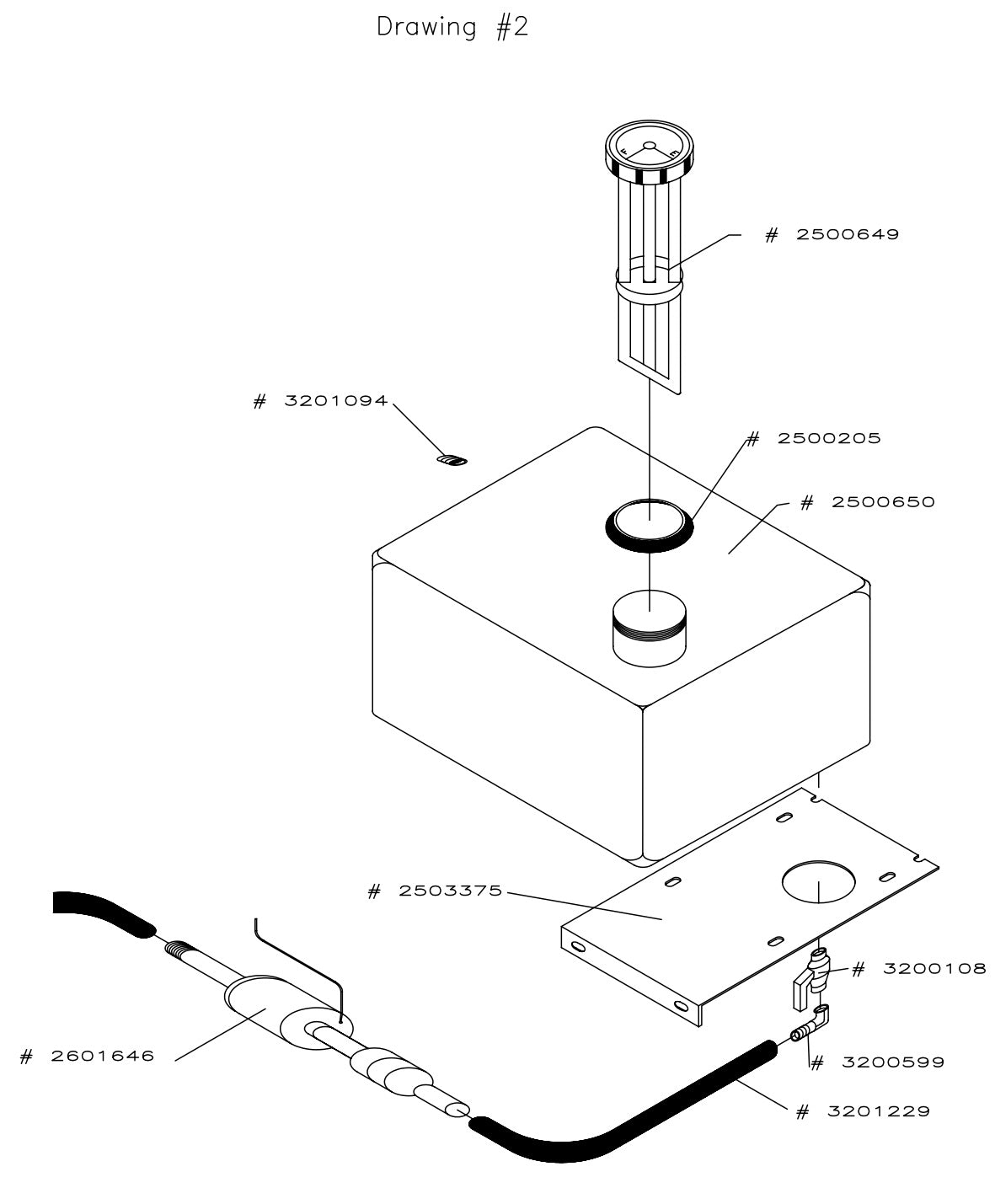

CC-DC-SS Parts List Drawing - 2

CC-DC-SS Parts List Drawing - 2

  • CC-DC-SS Parts List Drawing - 2
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
2500205 Fuel Tank Grommet for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$6.91
2
2500649 Fuel Cap for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$37.66
3
2500650 Fuel Tank for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$193.20
4
2503375 Fuel Tank Mount Plate for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$216.00
5
2601646 Fuel Pump Electric for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$262.35
6
3200108 1/4" Fuel Shut Off for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$38.47
7
3200599 Fitting for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$23.56
8
3201094 1/8" Pipe Plug for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$3.99
9
3201229 5/16" Fuel Line for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
Call for Price call for price call for price
View full details
