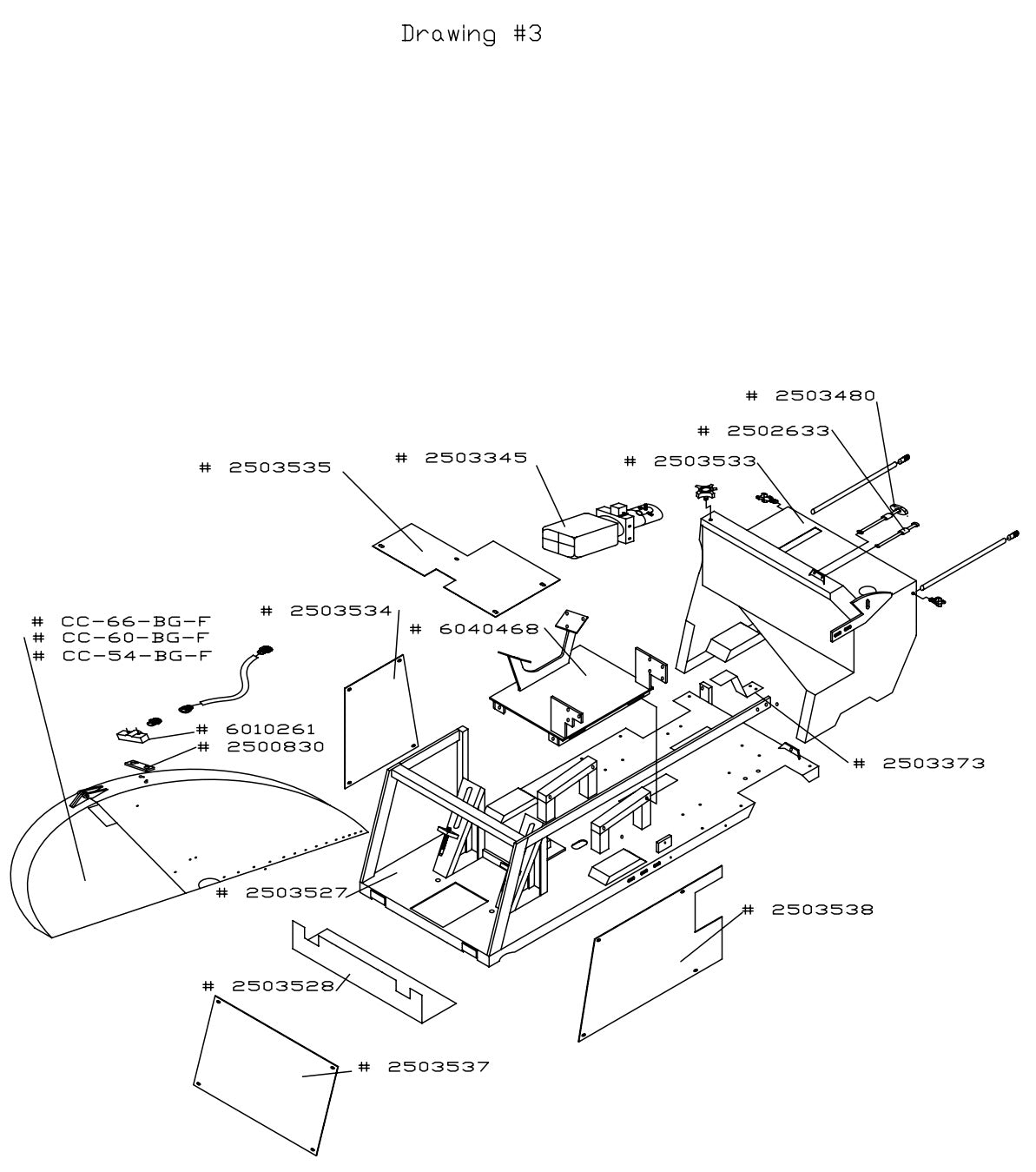

CC-DC-SS Parts List Drawing - 3

CC-DC-SS Parts List Drawing - 3

  • CC-DC-SS Parts List Drawing - 3
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
2500830 Gasket for Manifold for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$6.38
2
2502633 Choke Cable for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$240.57
3
2503345 Lift Pump for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$3,576.87
4
2503373 Chain Guard for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$86.09
5
2503480 Throatle Cable for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$357.39
6
2503527 Base Frame 30" for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$8,140.77
7
2503528 Skid Plate 30" for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$318.00
8
2503533 Upright Frame 30" for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$3,526.38
9
2503534 RH Shield for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$248.40
10
2503535 Top Shield for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$181.17
11
2503537 Front Shield for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$326.40
12
2503538 LH Shield for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$402.93
13
6010261 Manifold for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$32.81
14
6040468 Engine Base for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$1,216.71
15
CC-54-BG-F 54" Blade Guard for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
Call for Price call for price call for price
16
CC-60-BG-F 60" Blade Guard for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
Call for Price call for price call for price
17
CC-66-BG-F 66" Blade Guard for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
Call for Price call for price call for price
