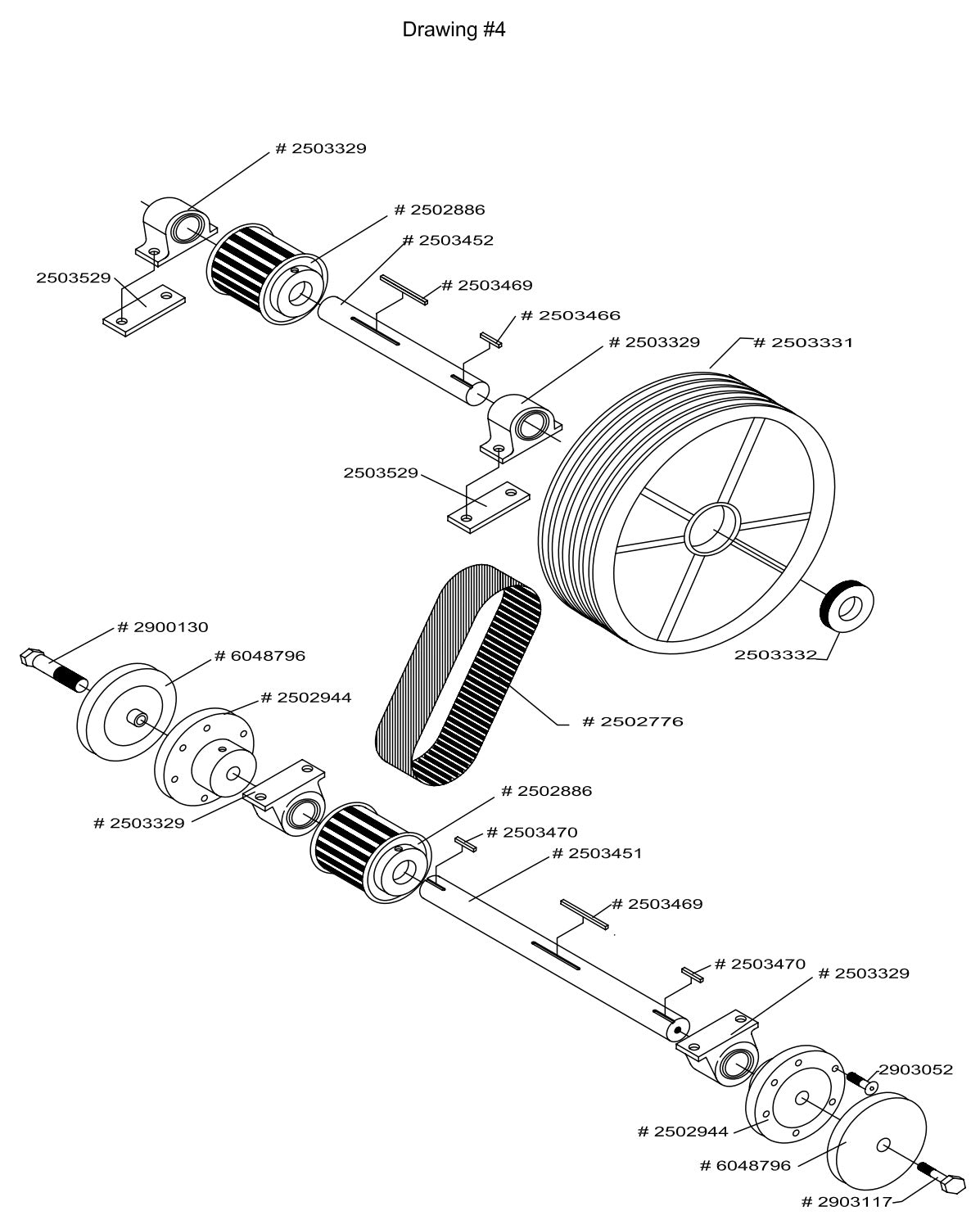

CC-DC-SS Parts List Drawing - 4

CC-DC-SS Parts List Drawing - 4

  • CC-DC-SS Parts List Drawing - 4
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
2502776 Belt for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$2,239.38
2
2502886 2 1/2" Sheave for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$1,980.00
3
2502944 Inner Collar for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
Call for Price call for price call for price
4
2503329 Blade Shaft Bearings for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$1,450.35
5
2503331 Sheave Jack Shaft 21" for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$1,935.45
6
2503332 Bushing for 21" Sheave for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$495.00
7
2503451 Blade Shaft for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$757.35
8
2503452 Jack Shaft 22 1/2" Long for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$577.17
9
2503466 Key for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$26.90
10
2503469 Key for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$19.37
11
2503470 Key for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$15.07
12
2503529 Bearing Spacer for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$111.00
13
2900130 5/8" - 11 x 4" Left Hand for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$30.88
14
2903052 Blade Mount Bolts for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$7.64
15
2903117 5/8" -11 x 4" Right Hand for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$19.37
16
6048796 Outer Collar for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
Call for Price call for price call for price
