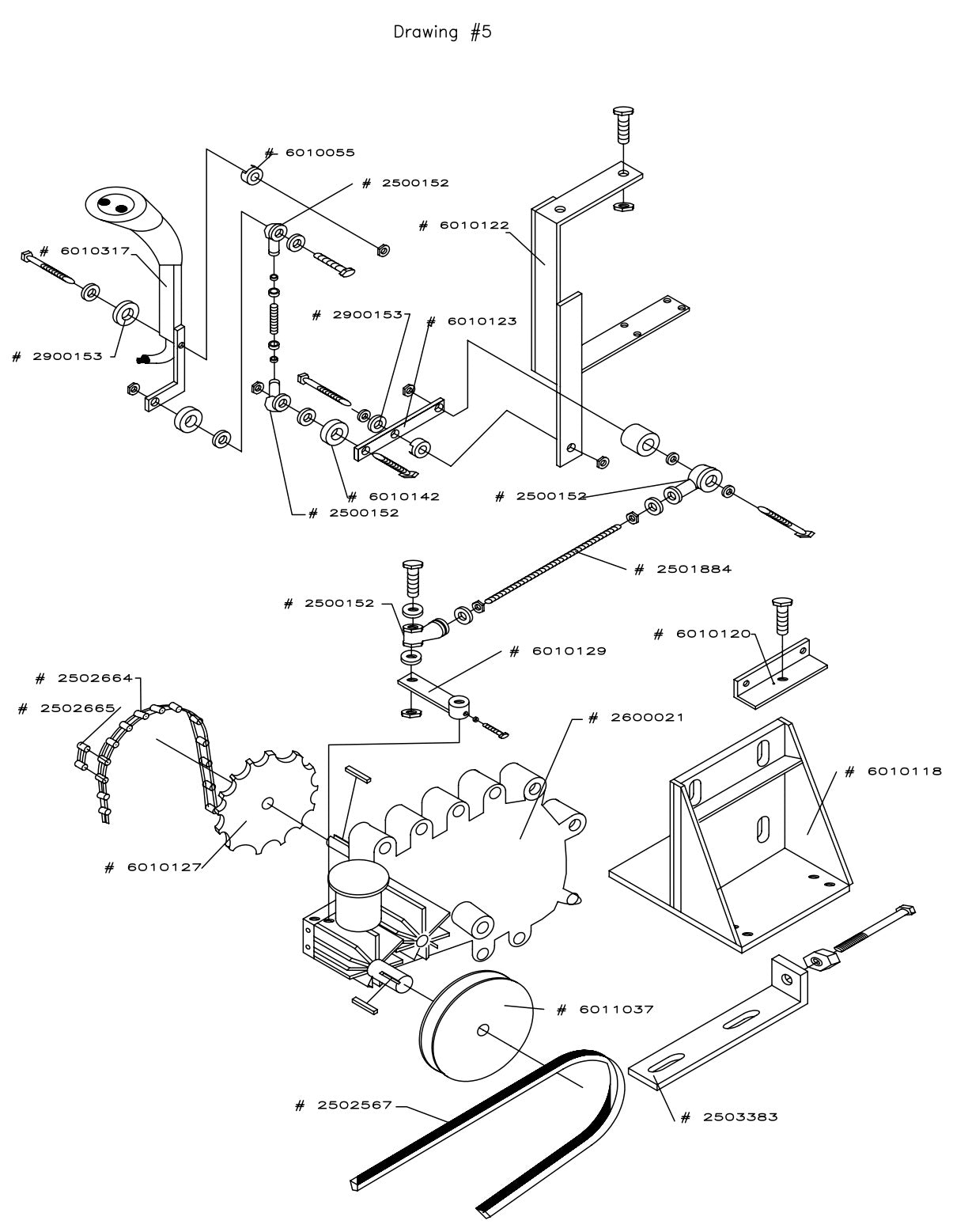

CC-DC-SS Parts List Drawing - 5

CC-DC-SS Parts List Drawing - 5

  • CC-DC-SS Parts List Drawing - 5
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
2500152 3/8" x 24 Rod Ends for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$30.55
2
2501884 3/8" Threaded Rod for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$15.07
3
2502567 Belt Transmission for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$77.11
4
2502664 Chain #50 for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
Call for Price call for price call for price
5
2502665 #50 Master Link for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$13.09
6
2503383 Axle Adjuster for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$95.94
7
2600021 Transmission for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$4,170.87
8
2900153 3/8" Friction Washer for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$2.99
9
6010055 Friction Spacer for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$16.20
10
6010118 Transmission Mount Bracket for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$312.00
11
6010120 Chain Tightening Bracket for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$40.99
12
6010122 Lever Support / Weldment for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$173.25
13
6010123 Linkage Lever for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$28.58
14
6010127 Transmission Sprocket 19 Tooth for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$113.18
15
6010129 Shift Lever for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$70.52
16
6010142 1/2" Set Collars for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
Call for Price call for price call for price
17
6010317 F/R Lever for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$478.17
18
6011037 Transmission Pulley for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$177.21
View full details
