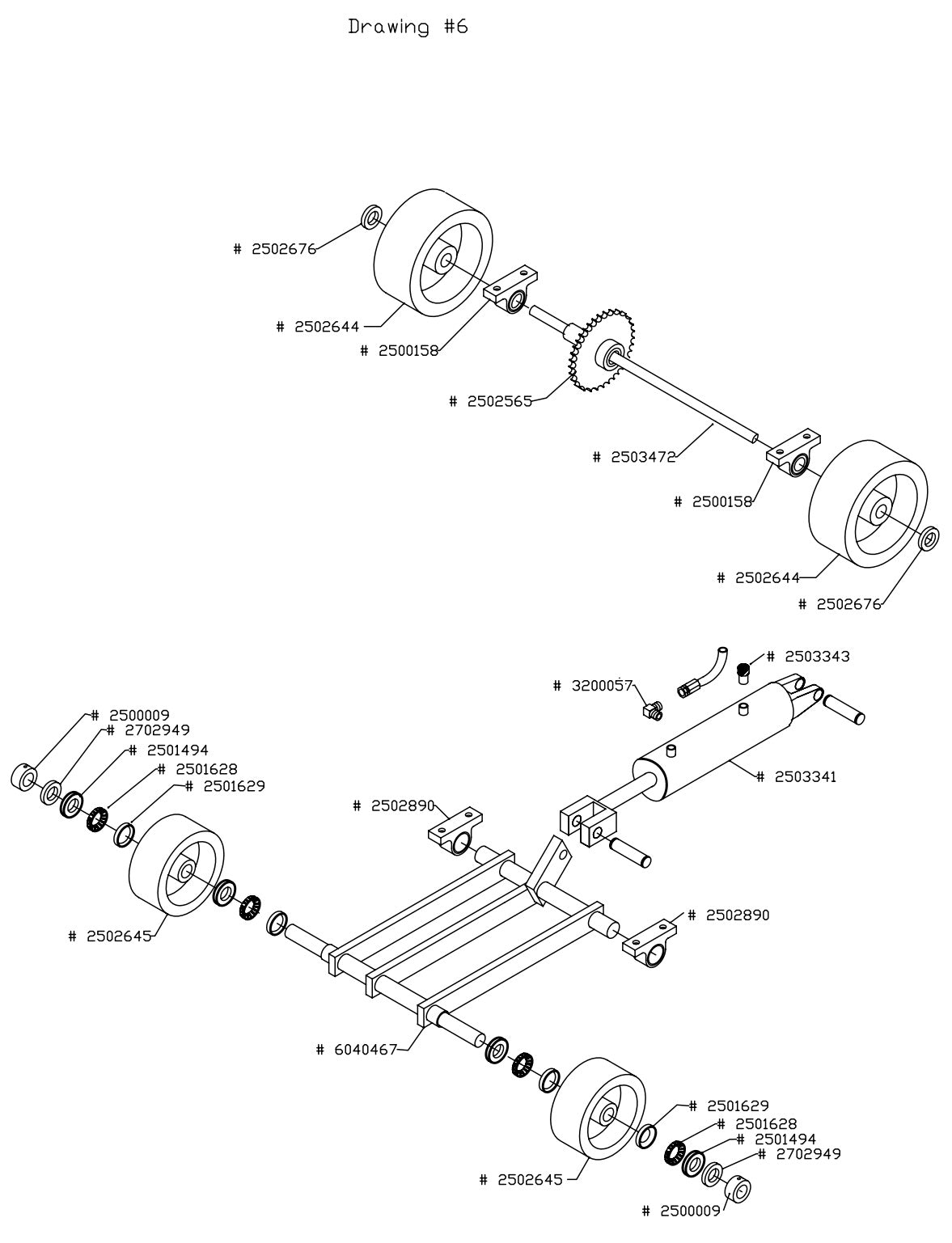

CC-DC-SS Parts List Drawing - 6

CC-DC-SS Parts List Drawing - 6

  • CC-DC-SS Parts List Drawing - 6
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
2500009 1" Set Collars for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$15.00
2
2500158 Bearing 1 1/4" Rear Axle for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$47.11
3
2501494 CR Seal for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$25.67
4
2501628 Bearing for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$57.03
5
2501629 Race for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$27.98
6
2502565 Rear Axle Sprocket 1 1/4" Bore for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$178.20
7
2502644 12" Rear Wheels for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$810.81
8
2502645 10" Front Wheel Seals & Bearings for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$538.56
9
2502676 1 1/4" Torx Locks for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
Call for Price call for price call for price
10
2502890 Undercarriage Bearings for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$1,261.26
11
2503341 Cylinder (lift) for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$1,271.16
12
2503343 Vent for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$39.82
13
2503472 Rear Axle for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
Call for Price call for price call for price
14
2702949 Front Wheel Spacers for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$2.99
15
3200057 Elbow for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$9.37
16
6040467 DC Undercarriage for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$1,374.12
