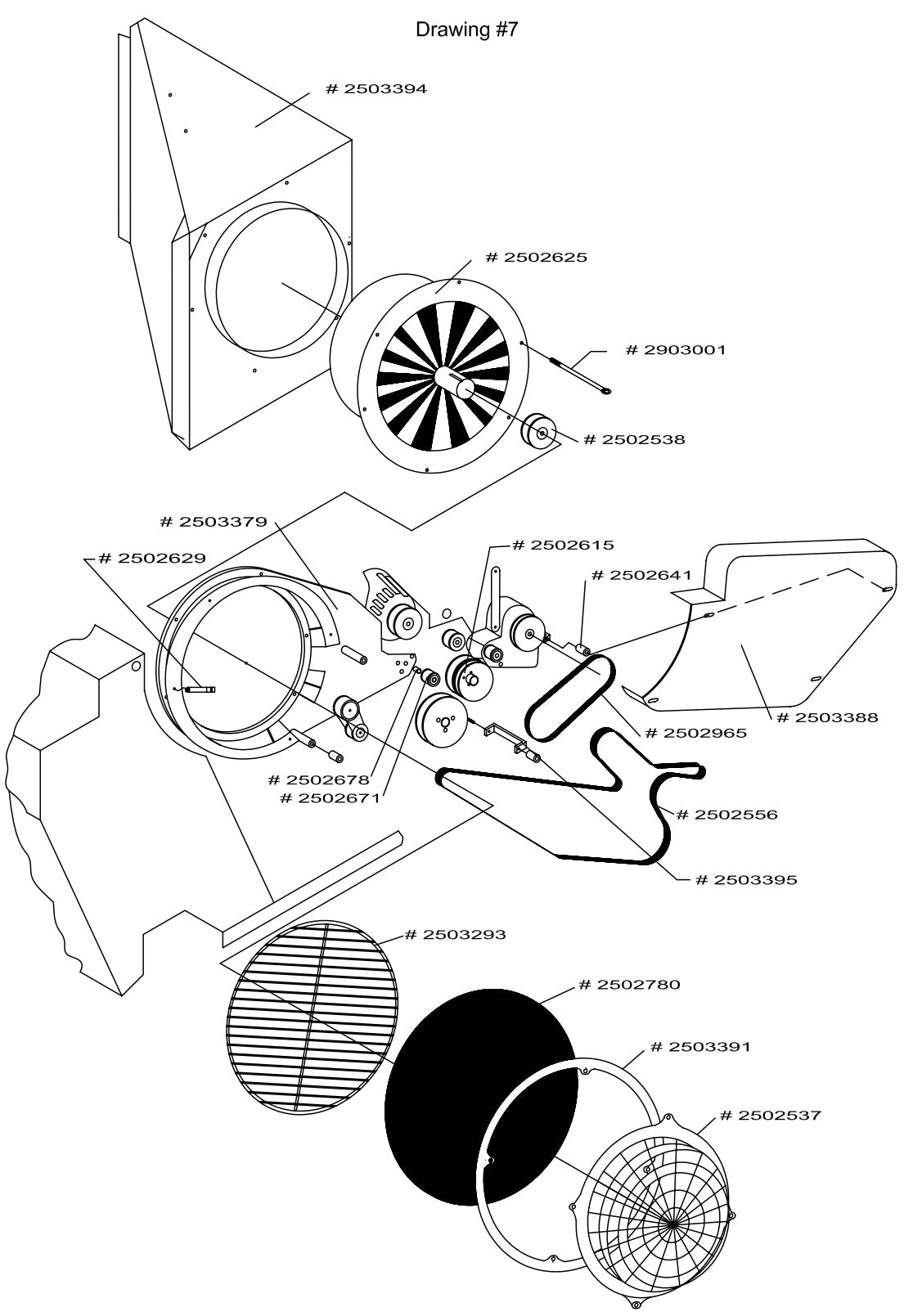

CC-DC-SS Parts List Drawing - 7

CC-DC-SS Parts List Drawing - 7

  • CC-DC-SS Parts List Drawing - 7
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
2502537 Fan Guard Plastic for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$405.90
2
2502538 Fan Pulley for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$321.75
3
2502556 Fan Belt for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$119.79
4
2502615 Pulley for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
Call for Price call for price call for price
5
2502625 Fan Assembly for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$2,813.75
6
2502629 Spring Clips for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
Call for Price call for price call for price
7
2502641 Isolators for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$21.52
8
2502671 Backside Idler Pulley Plastic for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
Call for Price call for price call for price
9
2502678 Bushing for Plastic Idler for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$7.78
10
2502780 Filter for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$23.19
11
2502965 Govenor Belt for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$100.08
12
2503293 Grill for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$82.86
13
2503379 Fan Mount for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$1,025.64
14
2503388 Engine Belt Guard for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$502.80
15
2503391 Air Filter Retaining Ring for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
Call for Price call for price call for price
16
2503394 Radiator Shroud for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$851.40
17
2503395 Engine Belt Guard Support for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$60.77
18
2903001 5/16" x 18 x 7" Bolts for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
Call for Price call for price call for price
View full details
