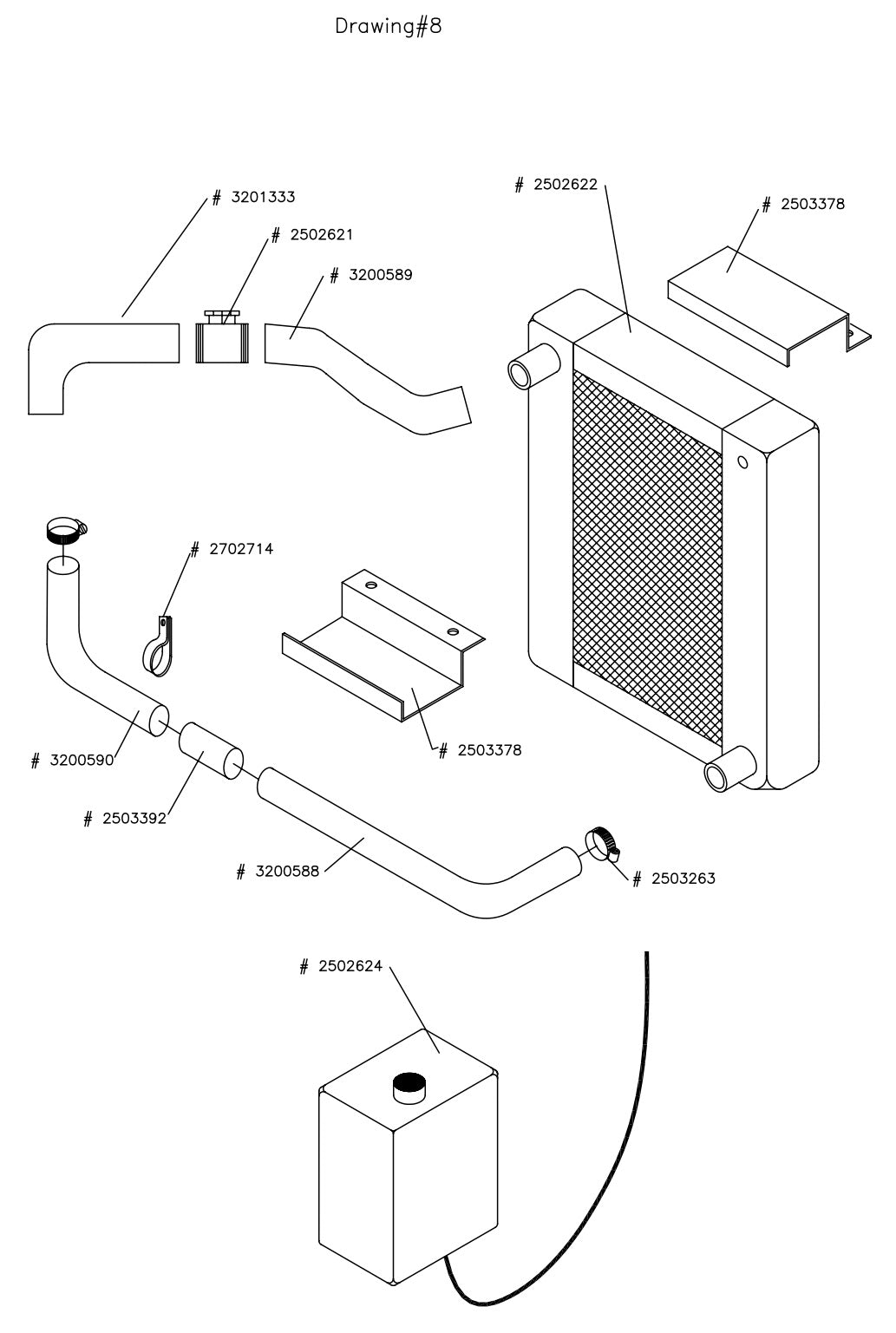

CC-DC-SS Parts List Drawing - 8

CC-DC-SS Parts List Drawing - 8

  • CC-DC-SS Parts List Drawing - 8
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
2502621 Radiator Fill for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$153.45
2
2502622 Radiator for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$1,000.89
3
2502624 Coolant Tank for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$112.00
4
2503263 2" Hose Clamps for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
Call for Price call for price call for price
5
2503378 Radiator Clamps for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
Call for Price call for price call for price
6
2503392 Hose Splice for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
Call for Price call for price call for price
7
2702714 Cushion Clamp for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
Call for Price call for price call for price
8
3200588 Lower Rad Hose for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
Call for Price call for price call for price
9
3200589 Upper Rad Hose for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$72.10
10
3200590 Lower Rad Hose for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
Call for Price call for price call for price
11
3201333 Upper Rad Hose for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$86.09
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.
