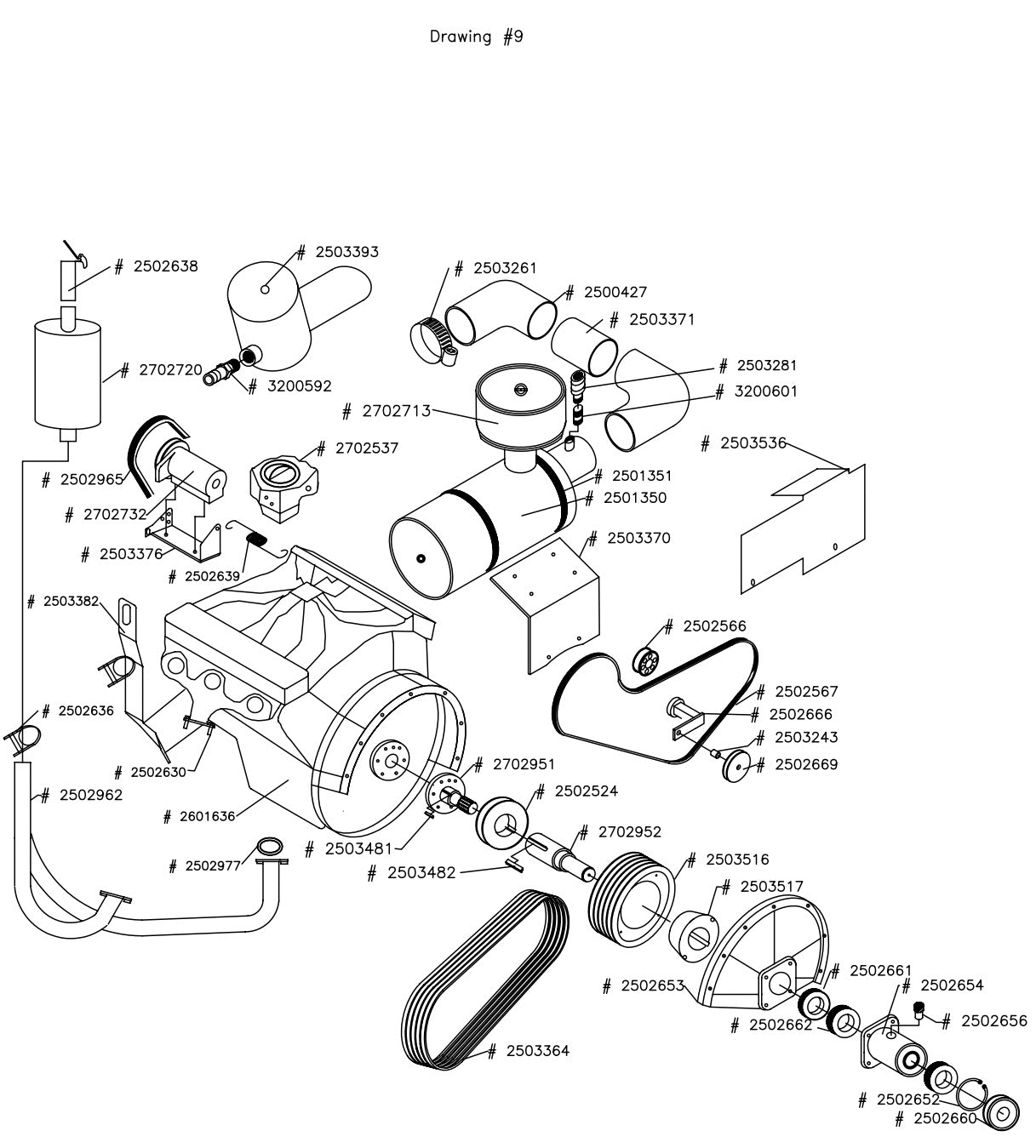

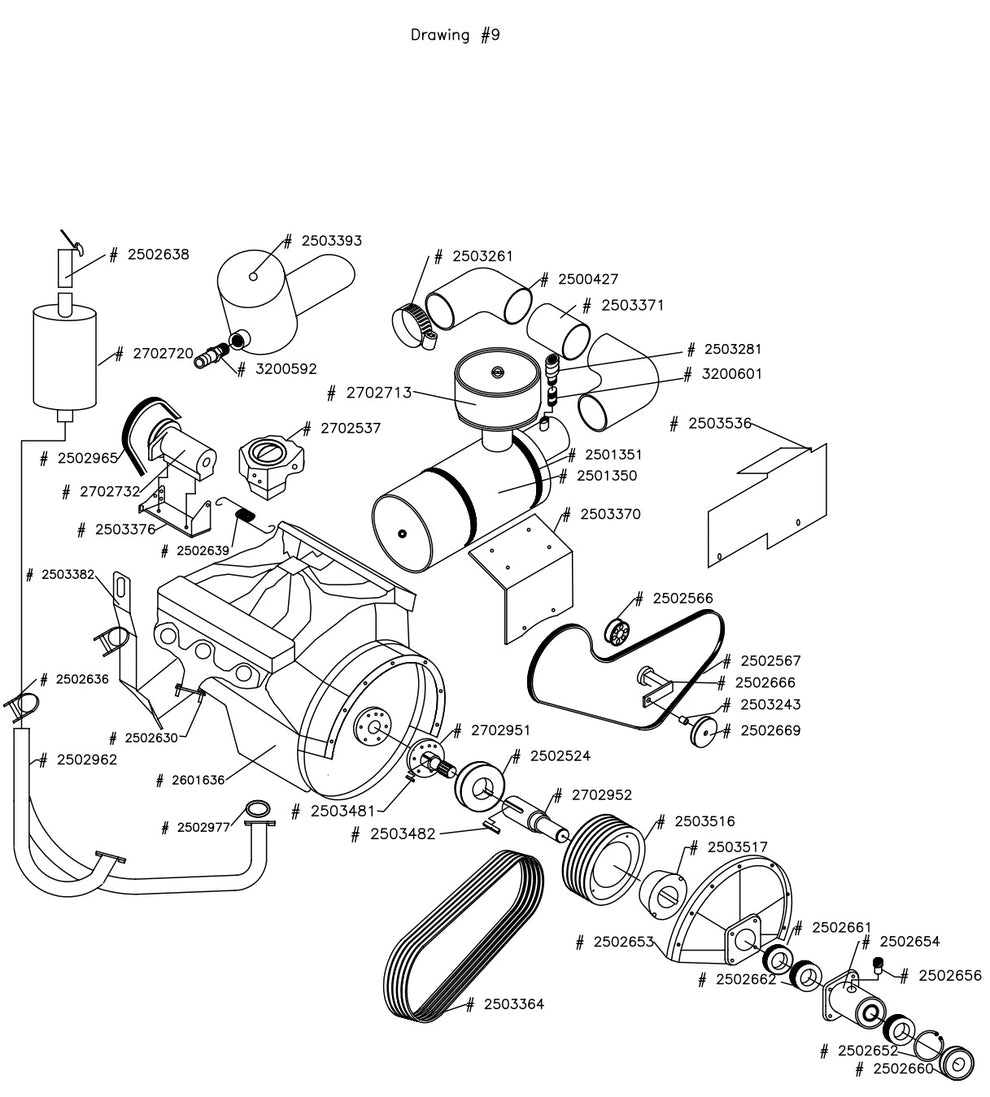

CC-DC-SS Parts List Drawing - 9

CC-DC-SS Parts List Drawing - 9

  • CC-DC-SS Parts List Drawing - 9
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
2500427 Rubber Intake Elbow for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$65.14
2
2501350 Air Cleaner for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$286.11
3
2501351 Plastic Mounting Band for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$63.35
4
2502524 Acc Drive Pulley for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
Call for Price call for price call for price
5
2502566 Backside Idler Pulley for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$89.32
6
2502567 Belt Transmission for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$77.11
7
2502630 Exhaust Studs for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
Call for Price call for price call for price
8
2502636 2 1/2" Muffler Clamps for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
Call for Price call for price call for price
9
2502638 Rain Cap for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$60.26
10
2502639 Choke Return Spring for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
Call for Price call for price call for price
11
2502652 Snap Ring for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$21.52
12
2502653 #3 Housing for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$1,419.60
13
2502654 Housing Load Center for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$1,296.25
14
2502656 3/8" Vent for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
Call for Price call for price call for price
15
2502660 Seal (Outer) for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$31.21
16
2502661 Seal (Inner) for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$57.03
17
2502662 Bearing Load Adapter for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$50.58
18
2502666 Tensioner SE-18 for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$304.92
19
2502669 Idler Pulley for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$62.61
20
2502962 Y-Pipe for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$1,204.83
21
2502965 Govenor Belt for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$100.08
22
2502977 Exhaust Donuts for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
Call for Price call for price call for price
23
2503243 Bushing for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$6.31
24
2503261 4" Clamps for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
Call for Price call for price call for price
25
2503281 Restriction Indicator for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
Call for Price call for price call for price
26
2503364 Belts for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$143.55
27
2503370 Air Cleaner Mount Bracket for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$120.00
28
2503371 Air Intake Pipe for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
Call for Price call for price call for price
29
2503376 Govenor Mount Bracket for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$137.61
30
2503382 Engine Lift Hook for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
Call for Price call for price call for price
31
2503393 Carb Horn with Extension for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$114.00
32
2503481 Key for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$13.99
33
2503482 Key for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$13.08
34
2503516 Engine Sheave for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$561.33
35
2503517 Bushing for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$293.04
36
2503536 Transmission Belt Guard for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$153.45
37
2601636 4.3L GM Engine for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$12,253.20
38
2702537 Carburator for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
Call for Price call for price call for price
39
2702713 Pre Cleaner for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$153.45
40
2702720 Muffler for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
Call for Price call for price call for price
41
2702732 Mechanical Govenor for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
Call for Price call for price call for price
42
2702951 Male Spline Shaft for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$1,175.13
43
2702952 Female Spline Shaft for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$1,186.02
44
3200117 Close Nipple for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$3.99
45
3200592 Hose Barb for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$12.91
