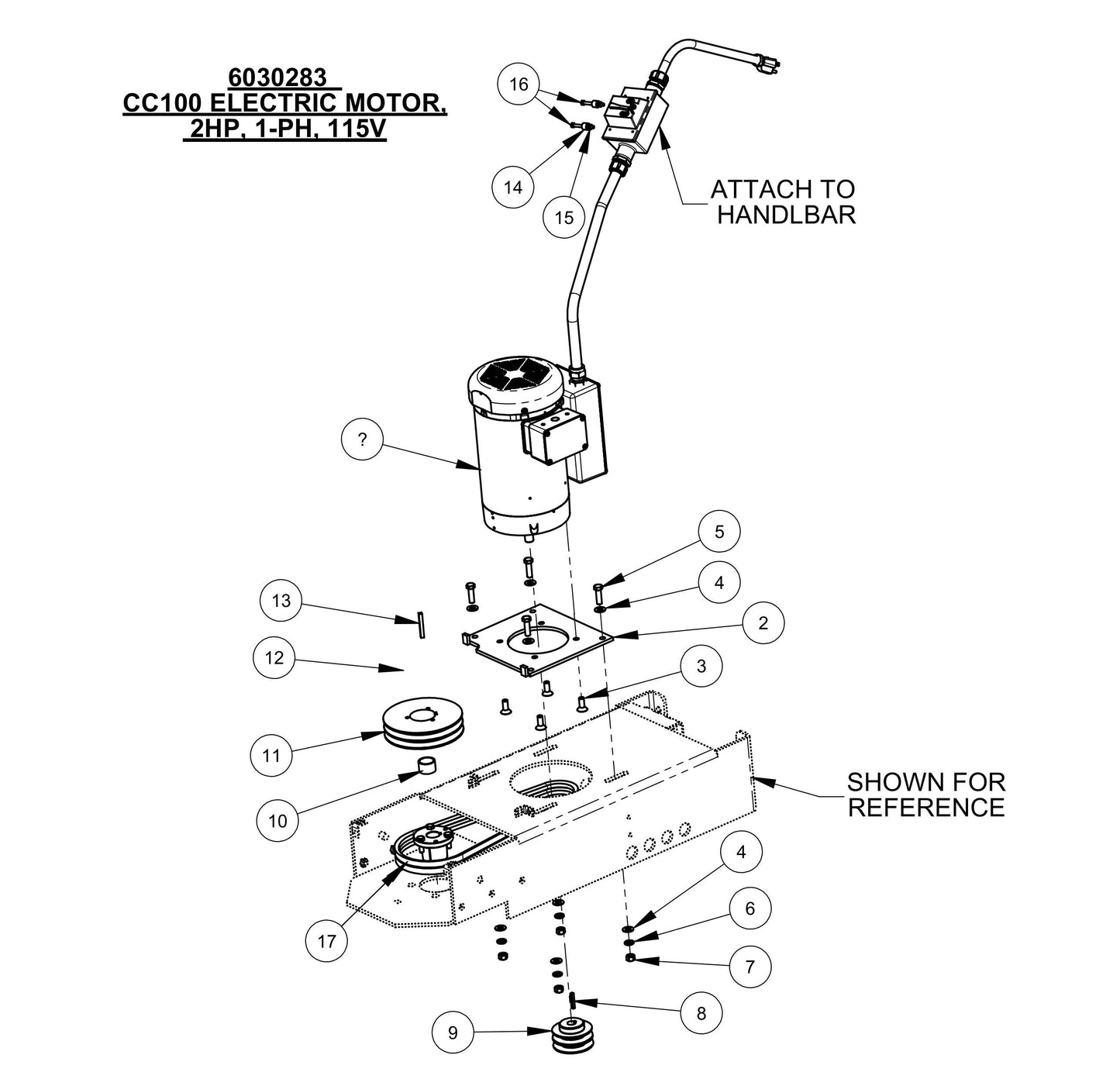

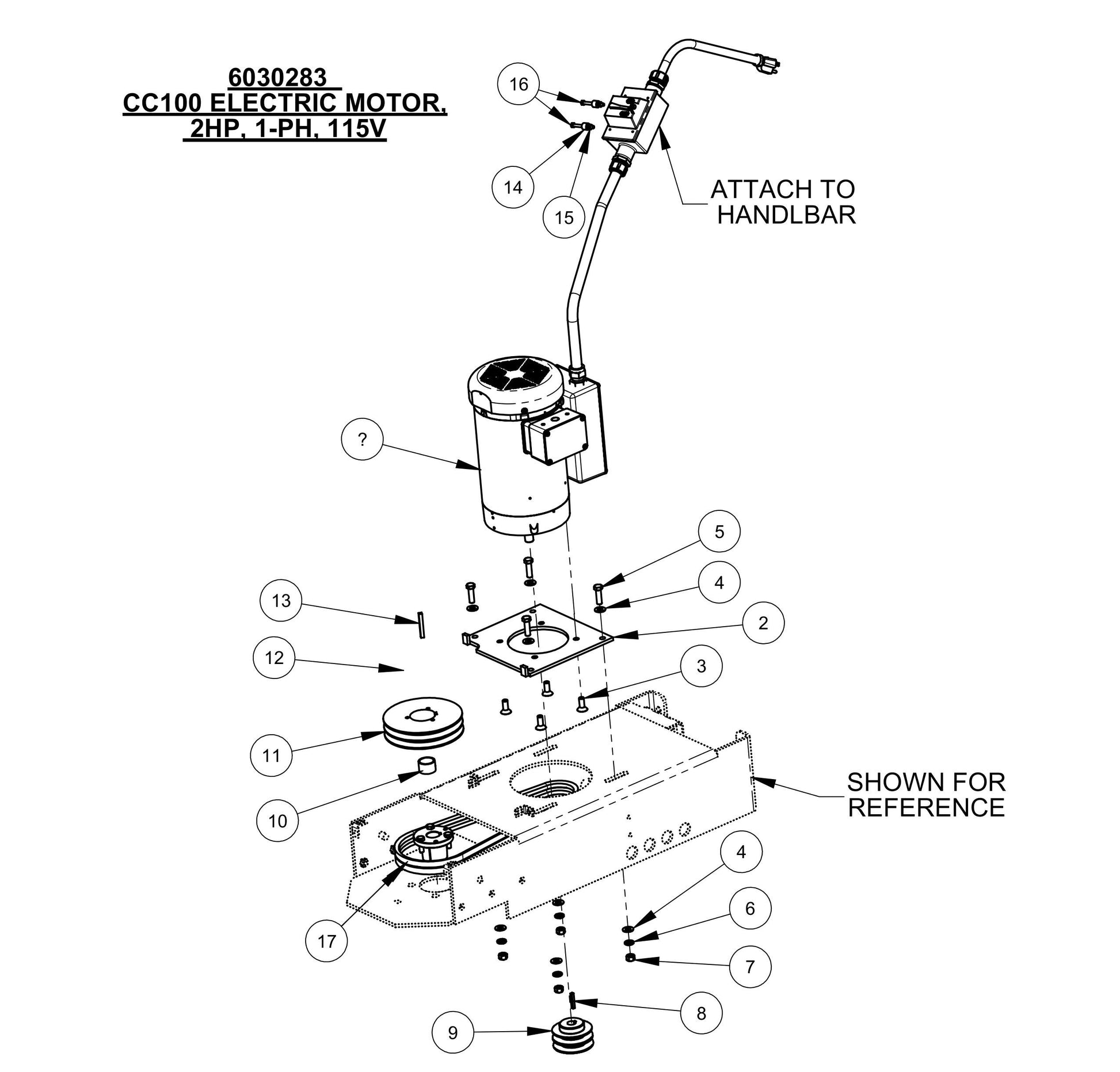

CC100,CPG100 Electric Motor 2HP,1-PH,115V Assembly Parts

CC100,CPG100 Electric Motor 2HP,1-PH,115V Assembly Parts

  • CC100,CPG100 Electric Motor 2HP,1-PH,115V Assembly Parts
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
2600271 2HP-1Ph Electric Motor w/ Drilled on/off switch for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$1,719.63
2
6041064 Engine Plate for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$157.20
3
2900235 Cap Screw, Flat Hd., 3/8-16 x 1" for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$4.99
4
2900014 Flat Washer, 3/8" SAE for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$2.99
5
2900013 Cap Screw, Hex Hd., 3/8-16 x 1- 1/4" for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$2.99
6
2900006 Lock Washer, 3/8" Split for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$2.99
7
2900033 Hex Nut, 3/8-16 for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$2.99
8
6048229 Key, 3/16" Sq. x 1-1/4" for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$2.99
9
2501177 Sheave, 3.00 - 2 Groove for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$72.42
10
6041001 Spacer, Blade Shaft for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$11.53
11
2501178 Sheave, 6.00-2 Groove for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$122.76
12
2501044 Bushing, Taper Lock, 1" Bore, w/Fasteners for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$54.06
13
2501357 Key, 1/4" Sq., x 2.0" for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$3.99
14
6041062 Throttle Spacer for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$3.99
15
2900301 Lock Nut, M5-0.8 Nylon Insert for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$2.99
16
2900597 Cap Screw, Hex Hd., M5-0.8 x 50mm for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$3.99
17
2500032 V-Belt 4L-390 for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$22.60
