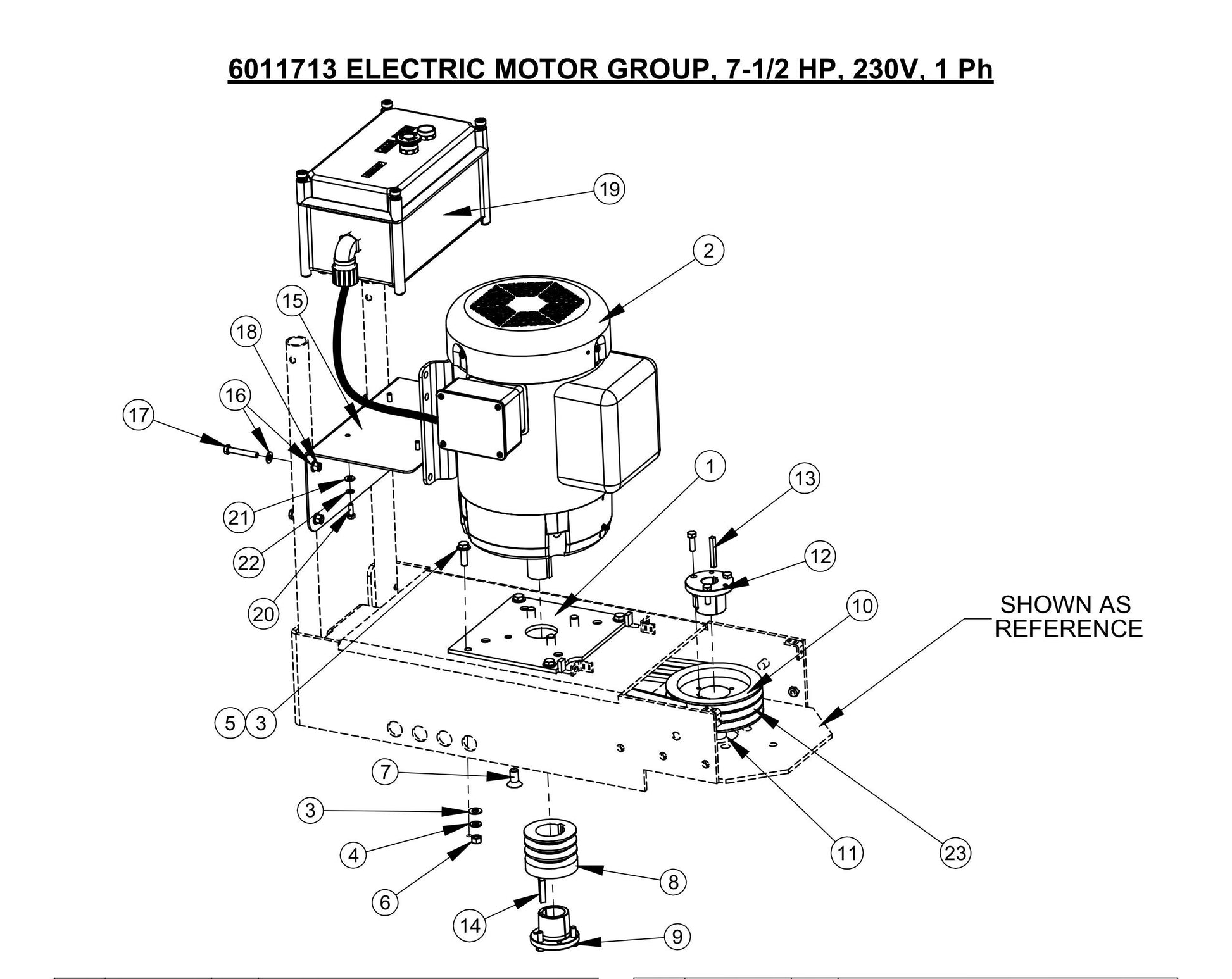

CC100,CPG100 Electric Motor Group, 7-1/2 HP, 230V, 1 Ph Assembly Parts

CC100,CPG100 Electric Motor Group, 7-1/2 HP, 230V, 1 Ph Assembly Parts

  • CC100,CPG100 Electric Motor Group, 7-1/2 HP, 230V, 1 Ph Assembly Parts
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
6048335 Motor Adapter Plate for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$108.49
2
2600119 Electric Motor, 7-1/2 HP, 230V, 1 Ph, C-Face for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$3,254.13
3
2900014 Flat Washer, 3/8" SAE for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$2.99
4
2900006 Lock Washer, 3/8" Split for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$2.99
5
2900013 Cap Screw, Hex Hd., 3/8-16 x 1- 1/4" for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$2.99
6
2900033 Hex Nut, 3/8-16 for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$2.99
7
2900530 Cap Screw, Flat Hd., 1/2-13 x 1" for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$6.99
8
2501045 Sheave, 3.00 - 3 Groove for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$164.40
9
2500370 Bushing, Taper Lock, 1-3/8" Bore for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$100.08
9
2500370B Key, 3/8 x 5/16 x 3/4" for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
Call for Price call for price call for price
9
2900138 Cap Screw, Hex Hd., 5/16-18 x 1" for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$2.99
12
2900138 Cap Screw, Hex Hd., 5/16-18 x 1" for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$2.99
10
2501043 Sheave, 6.00-3 Groove for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$150.48
11
6041042 Spacer, Blade Shaft for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$11.26
12
2501044 Bushing, Taper Lock, 1" Bore, w/Fasteners for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$54.06
12
2501044B Key, 3/8 x 5/16 x 3/4" for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
Call for Price call for price call for price
13
2501357 Key, 1/4" Sq., x 2.0" for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$3.99
14
6048046 Key, 5/16" Sq. x 1-1/2" for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$4.99
15
6041154 Bracket, Electric Box for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$71.40
16
2900022 Flat Washer, 5/16" SAE for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$2.99
17
2900494 Cap Screw, Hex Hd., 5/16-18 x 2" for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$3.99
18
2900039 Lock Nut, 5/16-18 Nylon for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$2.99
19
6048506 Starter Box Assy., 220-240V, 1PH. for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$1,678.05
20
2900144 Cap Screw, Hex Hd., 1/4-20 x 3/4" for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$2.99
21
2900009 Flat Washer, 1/4" SAE for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$2.99
22
2900024 Lock Washer, 1/4" Split for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$2.99
23
2500032 V-Belt 4L-390 for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$22.60
