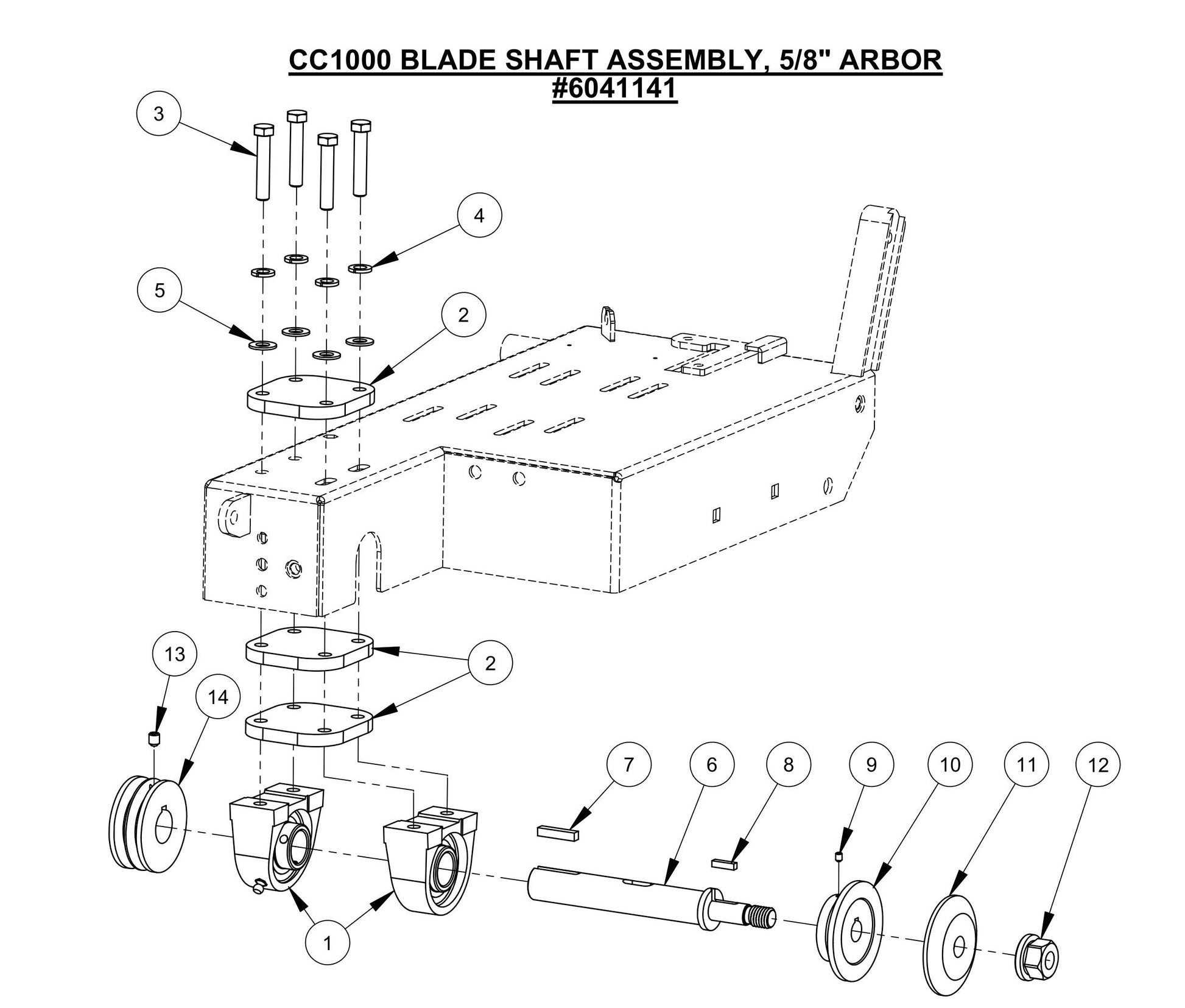

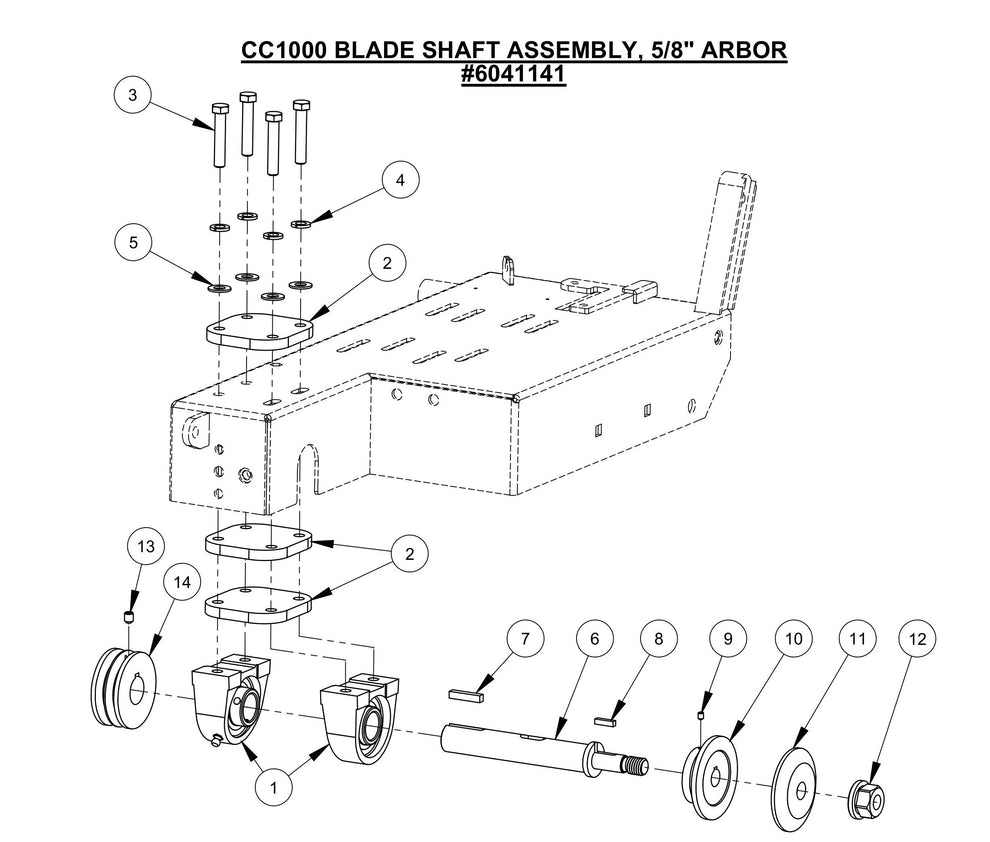

CC1000 Blade Shaft Assembly, 5/8" Arbor Assembly Parts

CC1000 Blade Shaft Assembly, 5/8" Arbor Assembly Parts

  • CC1000 Blade Shaft Assembly, 5/8" Arbor Assembly Parts
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
2500732 Pillow Block Bearing 1" for CC1000 Concrete Saw Core Cut by Diamond Products
$45.44
2
6040211 Bearing Spacer Plate for CC1000 Concrete Saw Core Cut by Diamond Products
$33.46
3
2900060 Cap Screw, Hex Hd., 3/8-16 x 2" for CC1000 Concrete Saw Core Cut by Diamond Products
$3.99
4
2900006 Lock Washer, 3/8" Split for CC1000 Concrete Saw Core Cut by Diamond Products
$2.99
5
2900014 Flat Washer, 3/8" SAE for CC1000 Concrete Saw Core Cut by Diamond Products
$2.99
6
6041140 Blade Shaft (5/8" Arbor) for Concrete Saw Core Cut by Diamond Products
$82.27
7
6010169 Key, 1/4" Sq. x 1-1/4" for CC1000 Concrete Saw Core Cut by Diamond Products
$2.99
8
6048018 Key, 3/16" Sq. x 3/4" for CC1000 Concrete Saw Core Cut by Diamond Products
$2.99
9
2900059 Set Screw, Soc. Hd., #10-32 x 1/4" for CC1000 Concrete Saw Core Cut by Diamond Products
$2.99
10
2501679 Inner Flange 3" (5/8" Arbor) for CC1000 Concrete Saw Core Cut by Diamond Products
$136.80
11
2501680 Outer Flange 3" (5/8" Arbor) for CC1000 Concrete Saw Core Cut by Diamond Products
$36.75
12
2900066 Flange Nut, 5/8-11, L. Hand for CC1000 Concrete Saw Core Cut by Diamond Products
$47.30
13
2900142 Set Screw, Soc. Hd., 5/16-18 x 3/8" for CC1000 Concrete Saw Core Cut by Diamond Products
$2.99
14
6041067 Sheave, 3V-2GR, 3" for CC1000 Concrete Saw Core Cut by Diamond Products
$67.30
