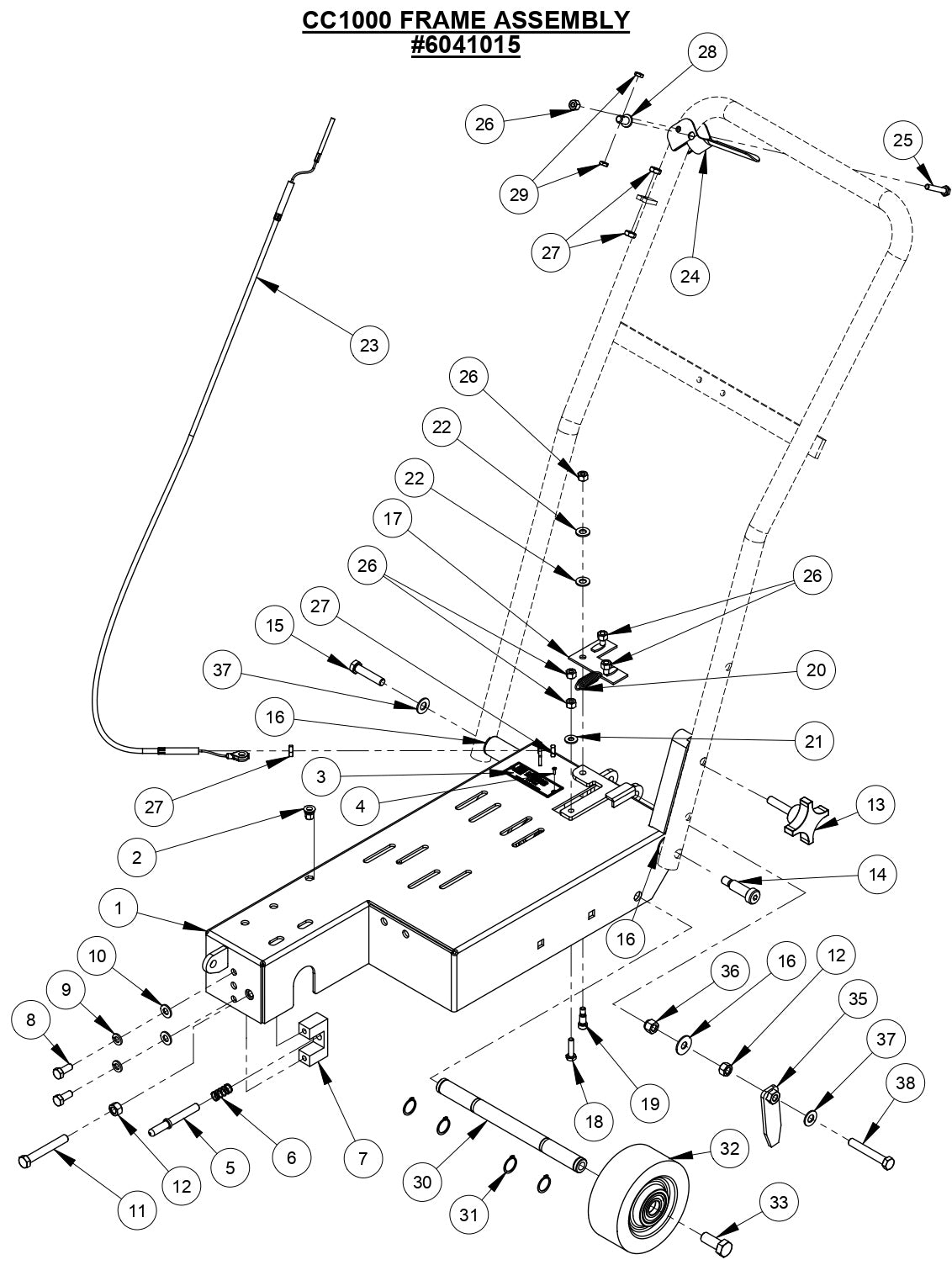

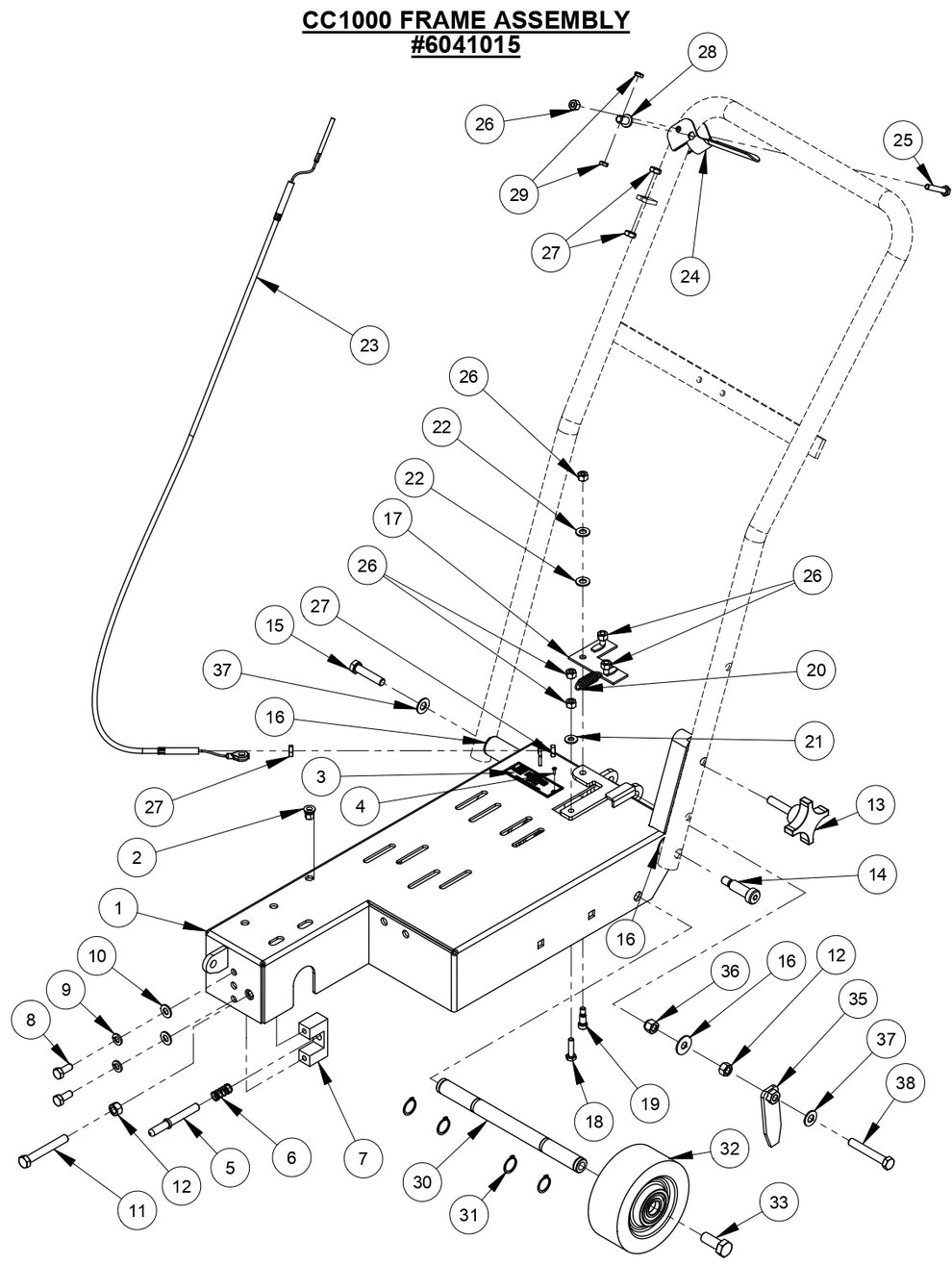

CC1000 Frame Assembly

CC1000 Frame Assembly

  • CC1000 Frame Assembly
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
Diamond Products FRAME BASE (CC1000) 6041079
$473.22
2
2900420 Rivet Nut, Hex Hd., 1/4"-20 CC1000 Concrete Saw Core Cut by Diamond Products
$3.99
4
2900096 Rivet 3/32" Dia. CC1002 Concrete Saw Core Cut by Diamond Products
$2.99
5
Diamond Products BLADE STOP (CC1000) 6041076
$17.03
6
2501192 Spring, Comp. .48 x .042 x 1.00 Long CC1004 Concrete Saw Core Cut by Diamond Products
$7.54
7
6041075 Blade Stop Block CC1005 Concrete Saw Core Cut by Diamond Products
$51.90
8
2900019 Cap Screw, Hex Hd., 5/16-18 x 3/4" CC1006 Concrete Saw Core Cut by Diamond Products
$2.99
9
2900031 Lock Washer, 5/16" Split CC1007 Concrete Saw Core Cut by Diamond Products
$2.99
11
2900028 Cap Screw, Hex Hd., 3/8-16 x 2-3/4" CC1009 Concrete Saw Core Cut by Diamond Products
$3.99
12
2900033 Hex Nut, 3/8-16 for CC1000 Concrete Saw Core Cut by Diamond Products
$2.99
13
2900234 Hand Lock Knob, 3/8"-16 for CC1000 Concrete Saw Core Cut by Diamond Products
$10.49
14
2900012 Shoulder Screw, 1/2" x 1-1/4" (3/8-16) for CC1000 Concrete Saw Core Cut by Diamond Products
$8.05
15
2900047 Cap Screw, Hex Hd., 3/8-16 x 1-3/4" for CC1000 Concrete Saw Core Cut by Diamond Products
$3.99
16
2900153 Friction Washer, 3/8" for CC1000 Concrete Saw Core Cut by Diamond Products
$2.99
17
6048290 Lock Plate for CC1000 Concrete Saw Core Cut by Diamond Products
$99.82
18
2900008 Cap Screw, Hex Hd., 1/4-20 x 1" for CC1000 Concrete Saw Core Cut by Diamond Products
$2.99
19
2900051 Shoulder Screw, 5/16" x 1/2" (1/4-20) for CC1000 Concrete Saw Core Cut by Diamond Products
$6.12
20
2500068 Spring, .063 x .50 x 1.75 for CC1000 Concrete Saw Core Cut by Diamond Products
$22.60
21
2900009 Flat Washer, 1/4" SAE for CC1000 Concrete Saw Core Cut by Diamond Products
$2.99
23
2500077 Cable Assembly for CC1000 Concrete Saw Core Cut by Diamond Products
$55.96
24
2500079 Depth Control Lever for CC1000 Concrete Saw Core Cut by Diamond Products
$10.76
25
2900048 Cap Screw, Hex Hd., 1/4-20 x 1-1/2" for CC1000 Concrete Saw Core Cut by Diamond Products
$2.99
26
2900010 Lock Nut, 1/4-20 Nylon for CC1000 Concrete Saw Core Cut by Diamond Products
$2.99
27
2900049 Jam Nut, 5/16-24 for CC1000 Concrete Saw Core Cut by Diamond Products
$2.99
28
6048286 Swivel Pin for CC1000 Concrete Saw Core Cut by Diamond Products
$29.46
29
2900050 Hex Nut, #10-24 for CC1000 Concrete Saw Core Cut by Diamond Products
$2.99
30
6041071 Axle Shaft for CC1000 Concrete Saw Core Cut by Diamond Products
$54.83
31
2501186 Retaining Ring, External 3/4" for CC1000 Concrete Saw Core Cut by Diamond Products
$4.99
32
2501187 Wheel, 5" X 2" for CC1000 Concrete Saw Core Cut by Diamond Products
$217.80
33
2900025 Cap Screw, Hex Hd., 1/2-13 x 1-1/4" for CC1000 Concrete Saw Core Cut by Diamond Products
$3.99
35
6041080 Rear Pointer for CC1000 Concrete Saw Core Cut by Diamond Products
$48.29
36
3/8-16 Lock Nut Nylon 2900018 Fits Core Cut CC6571 Walk Behind Saw By Diamond Products
$2.99
37
3/8" Flat Washer Sae Zinc (13/16"OD) 2900014 Fits Core Cut CC6571 Walk Behind Saw By Diamond Products
$2.99
38
2900521 Tap Bolt, Hex Hd., 3/8-16 x 2-1/2" for CC1000 Concrete Saw Core Cut by Diamond Products
$3.99
10
2900022 Flat Washer, 5/16" SAE for CC1000 Concrete Saw Core Cut by Diamond Products
$2.99
22
2900022 Flat Washer, 5/16" SAE for CC1000 Concrete Saw Core Cut by Diamond Products
$2.99
3
Call for Price call for price call for price
34
Call for Price call for price call for price
