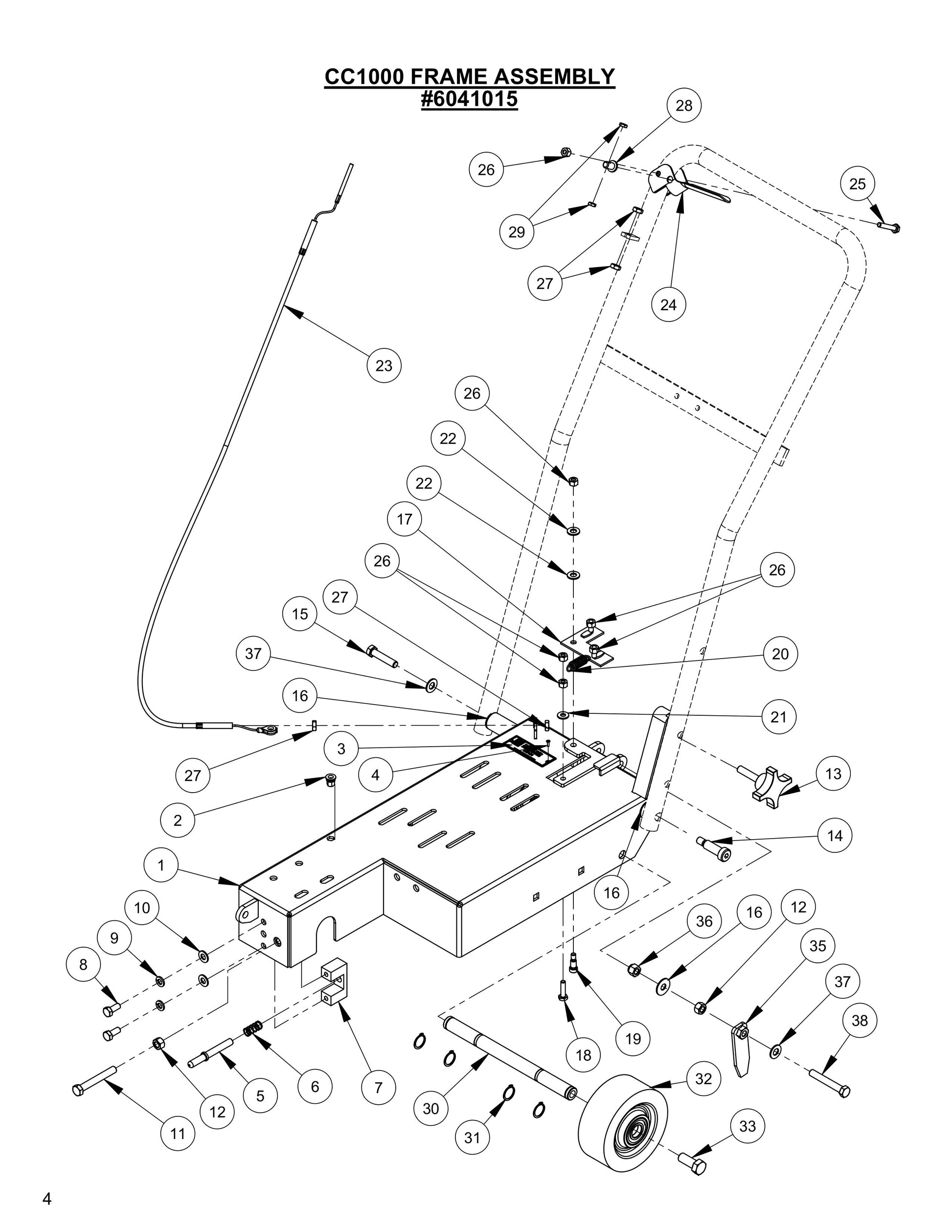

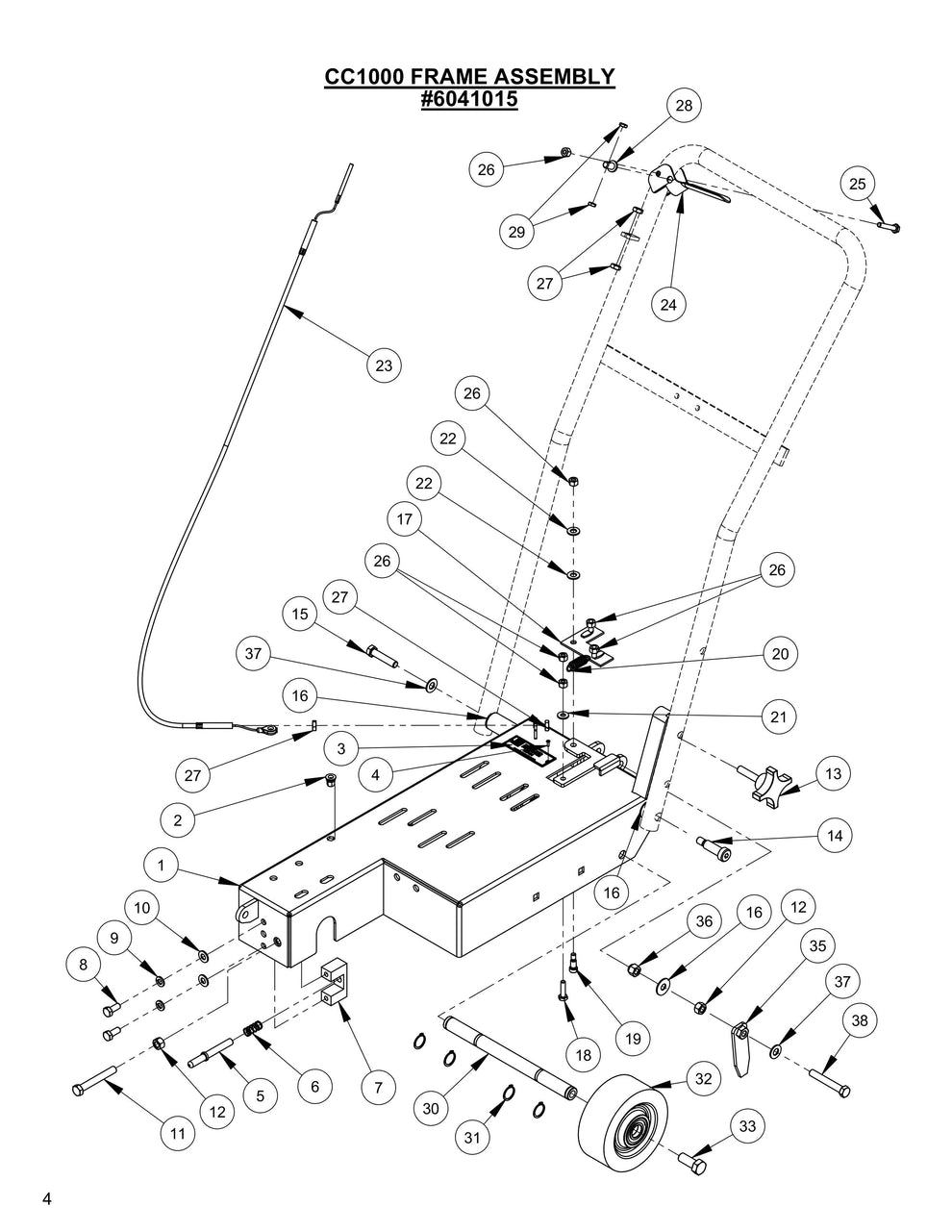

CC1000 Frame Assembly Parts

CC1000 Frame Assembly Parts

  • CC1000 Frame Assembly Parts
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
6041079 Frame Base Weldment for CC1000 CONCRETE SAW
$473.22
2
2900420 Rivet Nut, Hex Hd., 1/4"-20 CC1000 Concrete Saw Core Cut by Diamond Products
$3.99
3
1800169 DP S/N Nameplate for HS-20-15 HyDRAULic HAND SAW Core Cut by Diamond Products
$21.24
4
2900096 Rivet 3/32" Dia. 3/32" Dia. for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
5
6041076 Blade Stop CC1003 Concrete Saw Core Cut by Diamond Products
$17.03
6
2501192 Spring, Comp. .48 x .042 x 1.00 Long CC1004 Concrete Saw Core Cut by Diamond Products
$7.54
7
6041075 Blade Stop Block CC1005 Concrete Saw Core Cut by Diamond Products
$51.90
8
2900019 Cap Screw, Hex Hd., 5/16-18 x 3/4" for CC150XL-EE Concrete Saw Core Cut by Diamond Products
$2.99
9
2900031 Lock Washer 5/16" Split for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
10
2900022 Flat Washer 5/16" SAE for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
11
2900028 Cap Screw, Hex Hd., 3/8-16 x 2-3/4" CC1009 Concrete Saw Core Cut by Diamond Products
$3.99
12
2900033 Hex Nut 3/8-16 for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
13
2900234 Hand Lock Knob, 3/8"-16 for CC1000 Concrete Saw Core Cut by Diamond Products
$10.49
14
2900012 Shoulder Screw, 1/2" x 1-1/4" (3/8-16) for CC1000 Concrete Saw Core Cut by Diamond Products
$8.05
15
2900047 Cap Screw, Hex Hd., 3/8-16 x 1-3/4" for CC1000 Concrete Saw Core Cut by Diamond Products
$3.99
16
2900153 Friction Washer, 3/8" for CC1000 Concrete Saw Core Cut by Diamond Products
$2.99
17
6048290 Lock Plate for CC1000 Concrete Saw Core Cut by Diamond Products
$99.82
18
2900008 Cap Screw, Hex Hd., 1/4-20 x 1" for CC1000 Concrete Saw Core Cut by Diamond Products
$2.99
19
2900051 Shoulder Screw, 5/16" x 1/2" (1/4-20) for CC1000 Concrete Saw Core Cut by Diamond Products
$6.12
20
2500068 Spring, .063 x .50 x 1.75 for CC1000 Concrete Saw Core Cut by Diamond Products
$22.60
21
2900009 Flat Washer, 1/4" SAE for CC1000 Concrete Saw Core Cut by Diamond Products
$2.99
22
2900022 Flat Washer, 5/16" SAE for CC1000 Concrete Saw Core Cut by Diamond Products
$2.99
23
2500077 Cable Assembly for CC1000 Concrete Saw Core Cut by Diamond Products
$55.96
24
2500079 Depth Control Lever for CC1000 Concrete Saw Core Cut by Diamond Products
$10.76
25
2900048 Cap Screw, Hex Hd., 1/4-20 x 1-1/2" for CC1000 Concrete Saw Core Cut by Diamond Products
$2.99
26
2900010 Lock Nut, 1/4"-20 Nylon for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$2.99
27
2900049 Jam Nut, 5/16-24 for CC1000 Concrete Saw Core Cut by Diamond Products
$2.99
28
6048286 Swivel Pin for CC1000 Concrete Saw Core Cut by Diamond Products
$29.46
29
2900050 Hex Nut, #10-24 for CC1000 Concrete Saw Core Cut by Diamond Products
$2.99
30
6041071 Axle Shaft for CC1000 Concrete Saw Core Cut by Diamond Products
$54.83
31
2501186 Retaining Ring, External 3/4" for CC1000 Concrete Saw Core Cut by Diamond Products
$4.99
32
2501187 Wheel, 5" X 2" for CC1000 Concrete Saw Core Cut by Diamond Products
$217.80
33
2900025 Cap Screw, Hex Hd., 1/2-13 x 1-1/4" for CC1000 Concrete Saw Core Cut by Diamond Products
$3.99
35
6041080 Rear Pointer for CC1000 Concrete Saw Core Cut by Diamond Products
$48.29
36
2900018 Lock Nut, 3/8-16 Nylon for CC1000 Concrete Saw Core Cut by Diamond Products
$2.99
37
2900014 Flat Washer, 3/8" SAE for CC1000 Concrete Saw Core Cut by Diamond Products
$2.99
38
2900521 Tap Bolt, Hex Hd., 3/8-16 x 2-1/2" for CC1000 Concrete Saw Core Cut by Diamond Products
$3.99
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.

Do you accept returns?

Yes, most new, uninstalled items can be returned under our standard policy. Please see our Returns & Refunds Policy for eligibility, timeframes, and any exceptions.
