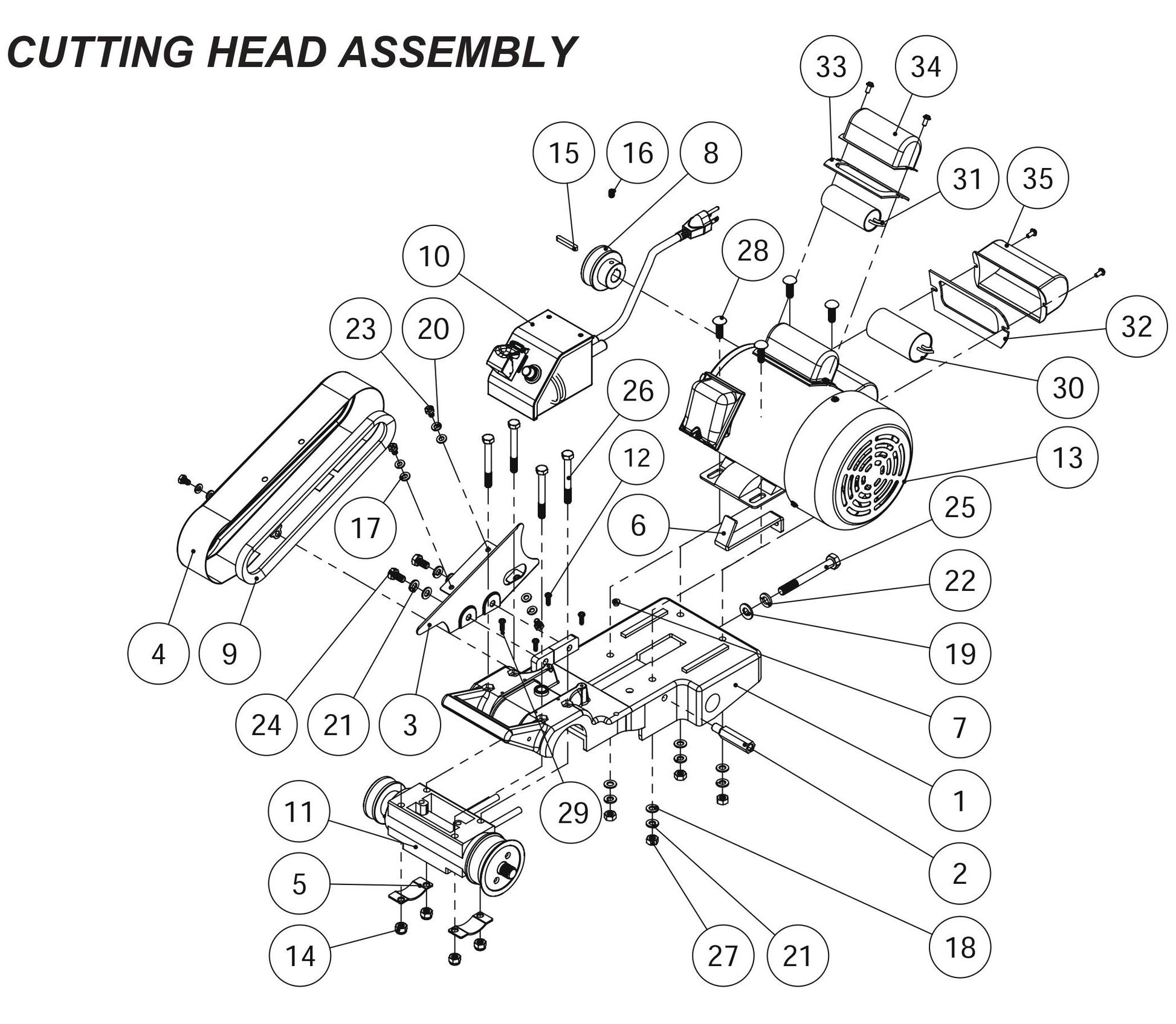

CC1000T Cutting Head Assembly Parts

CC1000T Cutting Head Assembly Parts

  • CC1000T Cutting Head Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
18
2901583 M8 Washer (18mm OD) for CC500MXL2 Masonry Saw Core Cut by Diamond Products
$2.99
19
2901356 Flat Washer, M10 for CC190PRO Concrete Saw Core Cut by Diamond Products
$2.99
21
2900763 Lock Washer M8 Split for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
22
2900321 Lock Washer, M10 Split fits Core Cut CC1300XL Concrete Floor Saw by Diamond Products
$2.99
24
2900868 Cap Screw, Hex Hd., M8-1.25 x 16mm for CC500MXL2 Masonry Saw Core Cut by Diamond Products
$2.99
2
Diamond Products MOUNT, PIVOT BLADE GUARD CC900TE 6045281
$13.99
3
Diamond Products BELT GUARD BRACKET 6043131
$27.98
4
Diamond Products BELT GUARD 6043178
$51.65
8
Diamond Products PULLEY, BLADE SHAFT 6043015
$49.50
9
Diamond Products #25 BELT DUPLICATE P/N - USE #6043128 6043194
$37.00
10
Diamond Products POWER SWITCH ASSY (PLASTIC) 6043728
$153.45
11
Diamond Products COMPLETE LIQUID COOLED BEARING HOUSING 6043331
$260.37
15
Diamond Products PULLEY LOCK PIN 6043016
$8.26
30
Diamond Products STARTER CAPACITOR 6043124
$85.01
31
Diamond Products RUNNING CAPACITOR 6043176
$47.35
34
Diamond Products CAPACITOR COVER,START CC900T 6045091
$32.28
35
Diamond Products CAPACITOR COVER,RUN CC900T 6045092
$40.89
