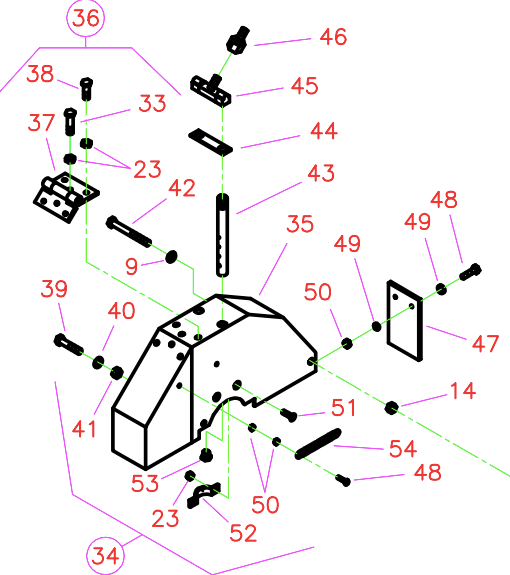

CC1100 Blade Guard Assembly Parts

CC1100 Blade Guard Assembly Parts

  • CC1100 Blade Guard Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
9
2900014 Flat Washer, 3/8" SAE for CC1100 Concrete Saw Core Cut by Diamond Products
$2.99
14
2900018 Lock Nut, 3/8"-16 Nylon for CC1100 Concrete Saw Core Cut by Diamond Products
$2.99
23
2900010 Lock Nut, 1/4"-20 Nylon for CC1100 Concrete Saw Core Cut by Diamond Products
$2.99
33
2900052 Capscrew, Hex Hd., 1/4"-20 x 1-1/4" for CC1100 Concrete Saw Core Cut by Diamond Products
$2.99
34
6048281 Blade Guard Assembly for CC1100 Concrete Saw Core Cut by Diamond Products
$484.80
35
6048282 Blade Guard Only for CC1100 Concrete Saw Core Cut by Diamond Products
$202.80
36
6048150 Hinge Assembly (includes #23, #33, #37, #38) for CC1100 Concrete Saw Core Cut by Diamond Products
$44.67
37
2500270 Hinge Only for CC1100 Concrete Saw Core Cut by Diamond Products
$43.04
38
2900144 Capscrew, Hex Hd., 1/4"-20 x 3/4" for CC1100 Concrete Saw Core Cut by Diamond Products
$2.99
39
2900019 Capscrew, Hex Hd., 5/16"-18 x 3/4" for CC1100 Concrete Saw Core Cut by Diamond Products
$2.99
40
2900022 Flat Washer, 5/16" SAE for CC1100 Concrete Saw Core Cut by Diamond Products
$2.99
41
2900039 Lock Nut, 5/16"-18 Nylon for CC1100 Concrete Saw Core Cut by Diamond Products
$2.99
42
2900057 Capscrew, Hex Hd., 3/8"-16 x 3-3/4" for CC1100 Concrete Saw Core Cut by Diamond Products
$6.99
43
6048283 Water Tube for CC1100 Concrete Saw Core Cut by Diamond Products
$36.34
44
6048159 Manifold Gasket for CC1100 Concrete Saw Core Cut by Diamond Products
Call for Price call for price call for price
45
6048158 Manifold for CC1100 Concrete Saw Core Cut by Diamond Products
Call for Price call for price call for price
46
3200023 Fitting, 3/4" Male Garden Hose to 1/4" Female Pipe for CC1100 Concrete Saw Core Cut by Diamond Products
$30.13
47
6048039 Splash Flap for CC1100 Concrete Saw Core Cut by Diamond Products
$8.57
48
2900015 Machine Screw, #10-24 x 3/4" for CC1100 Concrete Saw Core Cut by Diamond Products
$2.99
49
2900016 Flat Washer, #10 U.S. for CC1100 Concrete Saw Core Cut by Diamond Products
$2.99
50
2900017 Lock Nut, #10-24 Nylon for CC1100 Concrete Saw Core Cut by Diamond Products
$2.99
51
2900020 Capscrew, Flat Hd., 1/4"-20 x 3/4" for CC1100 Concrete Saw Core Cut by Diamond Products
$3.99
52
6048155 Water Tube Clamp for CC1100 Concrete Saw Core Cut by Diamond Products
$3.99
53
3200001 Pipe Plug, 1/8" NPT for CC1100 Concrete Saw Core Cut by Diamond Products
$4.99
54
2500066 Spring, 3/8" Dia. for CC1100 Concrete Saw Core Cut by Diamond Products
$10.38
View full details
