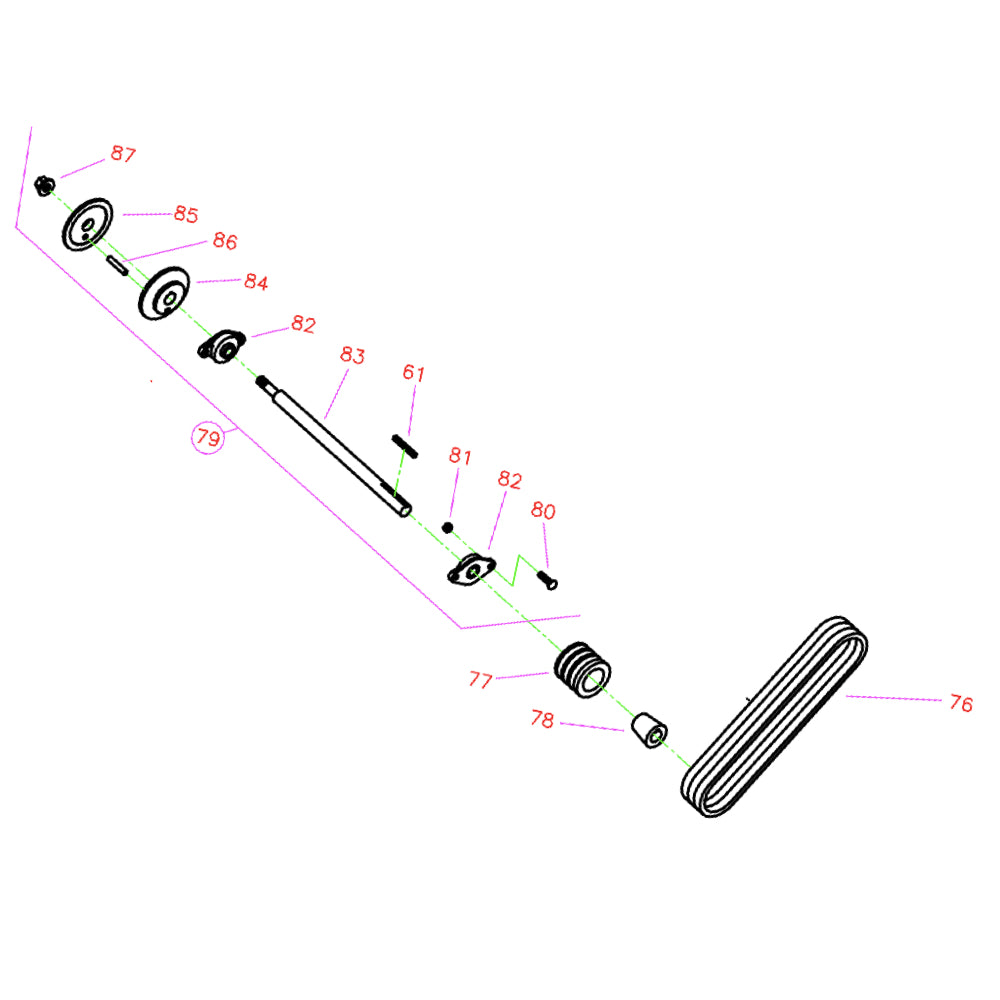

CC1100 Blade Shaft Assembly Parts

CC1100 Blade Shaft Assembly Parts

  • CC1100 Blade Shaft Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
61
6048134 Key, 1/4" Square x 2-1/4" for CC1100 Concrete Saw Core Cut by Diamond Products
$3.99
76
2500034 V-Belt, 3VX315 for 5 HP and 8 HP for CC1100 Concrete Saw Core Cut by Diamond Products
$35.51
76
2500035 V-Belt, 3VX335 for 9 HP, 11 HP, and 13 HP for CC1100 Concrete Saw Core Cut by Diamond Products
$40.89
77
2500024 Sheave, 3.15-3 Groove for CC1100 Concrete Saw Core Cut by Diamond Products
$134.64
78
2500028 Bushing, 1" for CC1100 Concrete Saw Core Cut by Diamond Products
$49.50
79
6048266 Blade Shaft Assembly (includes #61, #80 - #87) for CC1100 Concrete Saw Core Cut by Diamond Products
$399.60
80
2900044 Carriage Screw, 7/16"-14 x 1-1/4" for CC1100 Concrete Saw Core Cut by Diamond Products
$3.99
81
2900045 Lock Nut, 7/16"-14 Nylon for CC1100 Concrete Saw Core Cut by Diamond Products
$2.99
82
2500012 Flange Block Bearing, 1" for CC1100 Concrete Saw Core Cut by Diamond Products
$28.23
83
6048267 Blade Shaft for CC1100 Concrete Saw Core Cut by Diamond Products
$181.20
84
6048139 Inner Flange for CC1100 Concrete Saw Core Cut by Diamond Products
$137.61
85
6048141 Outer Flange with Pin for CC1100 Concrete Saw Core Cut by Diamond Products
$88.45
86
2900067 Dowel Pin, 3/8" Dia. x 1-1/4" for CC1600 WALL SAW Core Cut by Diamond Products
$4.99
87
2900066 Flange Nut, 5/8-11, L. Hand for CC1000 Concrete Saw Core Cut by Diamond Products
$47.30
