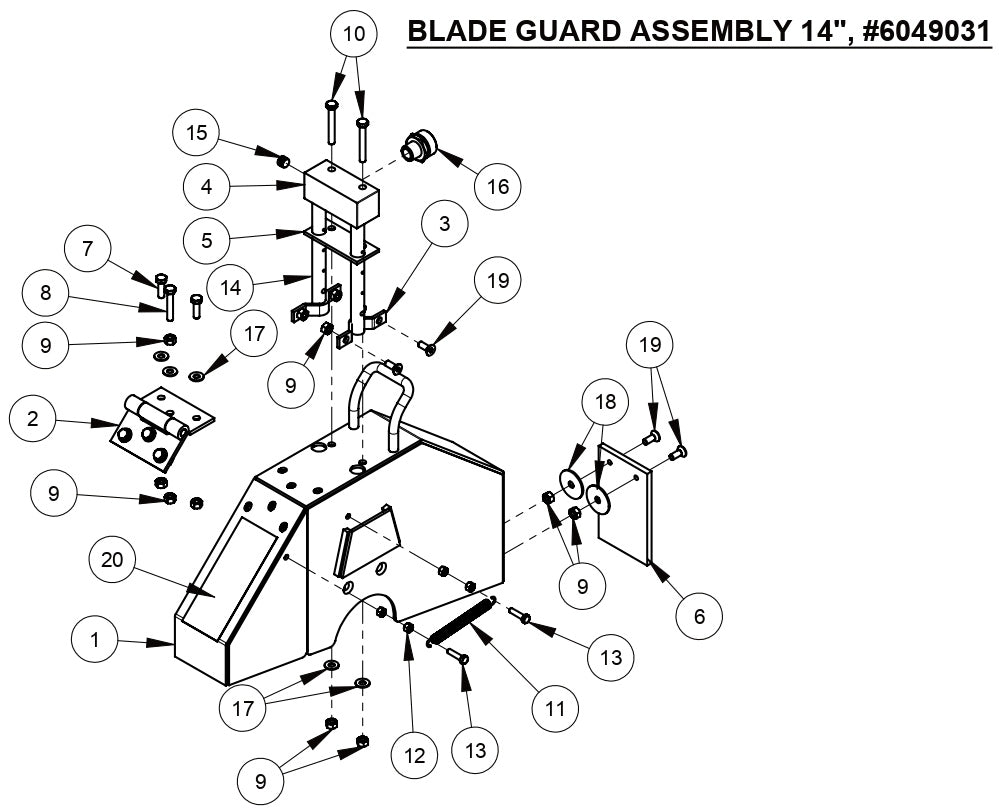

CC1113 Blade Guard Assembly Parts

CC1113 Blade Guard Assembly Parts

  • CC1113 Blade Guard Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
6049030 14" Blade Guard for CC1113-XL Concrete Saw Core Cut by Diamond Products
$529.20
2
2500270 Blade Guard Hinge for CC1113-XL Concrete Saw Core Cut by Diamond Products
$43.04
3
6048155 Water Tube Clamp for CC1113-XL Concrete Saw Core Cut by Diamond Products
$3.99
4
6048123 Water Manifold for CC1113-XL Concrete Saw Core Cut by Diamond Products
$27.11
5
2500829 Water Manifold Gasket for CC1113-XL Concrete Saw Core Cut by Diamond Products
$6.99
6
6048039 Splash Flap for CC1113-XL Concrete Saw Core Cut by Diamond Products
$8.57
7
2900310 Cap Screw, Hex Hd., M6 x 20mm for CC1113-XL Concrete Saw Core Cut by Diamond Products
$2.99
8
2900312 Cap Screw, Hex Hd., M6 x 35mm for CC1113-XL Concrete Saw Core Cut by Diamond Products
$3.99
9
2900302 Lock Nut, M6 Nylon for CC1113-XL Concrete Saw Core Cut by Diamond Products
$2.99
10
2900244 Cap Screw, Hex Hd., M6 x 45mm for CC1113-XL Concrete Saw Core Cut by Diamond Products
$3.99
11
2500066 Spring, 3/8 X .055 X 3" for CC1113-XL Concrete Saw Core Cut by Diamond Products
$10.38
12
2900301 Lock Nut, M5 Nylon for CC1113-XL Concrete Saw Core Cut by Diamond Products
$2.99
13
2900309 Cap Screw, Hex Hd., M5 x 20mm for CC1113-XL Concrete Saw Core Cut by Diamond Products
$2.99
14
6048283 Water Tube for 14" Guard for CC1113-XL Concrete Saw Core Cut by Diamond Products
$36.34
15
3200001 Plug, 1/8" NPT for CC1113-XL Concrete Saw Core Cut by Diamond Products
$4.99
16
3200002 Fitting, 3/4" M. Pipe to 3/4" M. Garden for CC1113-XL Concrete Saw Core Cut by Diamond Products
$22.32
17
2900016 Flat Washer, #10 USS for CC1113-XL Concrete Saw Core Cut by Diamond Products
$2.99
18
2900083 Fender Washer, 1/4" x 1-1/4" for CC1113-XL Concrete Saw Core Cut by Diamond Products
$2.99
19
2900308 Cap Screw, Flat Hd. Soc., M6 x 16mm for CC1113-XL Concrete Saw Core Cut by Diamond Products
$2.99
20
1800001 Warning Label for CC1113-XL Concrete Saw Core Cut by Diamond Products
$3.99
