CC1113 Front Axle Assembly Parts

CC1113 Front Axle Assembly Parts

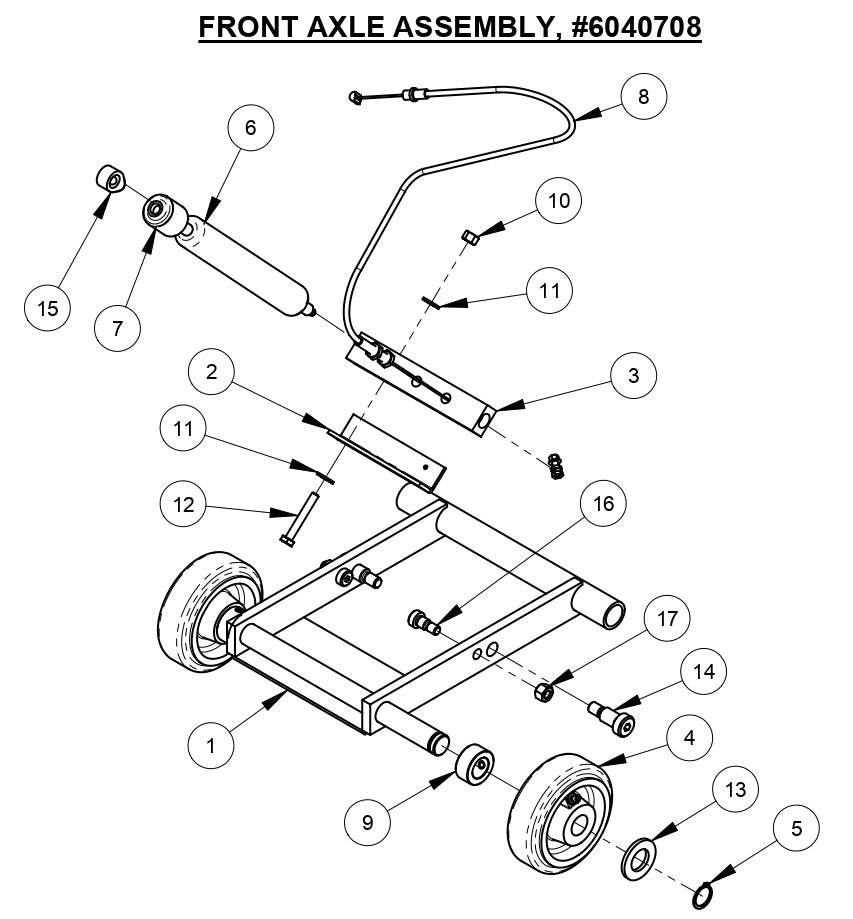

  • CC1113 Front Axle Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
6040703 Front Axle Weldment for CC1113-XL Concrete Saw Core Cut by Diamond Products
$267.30
2
6040710 Release Plate for CC1113-XL Concrete Saw Core Cut by Diamond Products
$29.34
3
6040725 Mounting Plate for CC1113-XL Concrete Saw Core Cut by Diamond Products
$141.57
4
2503752 Wheel 4" X 1-1/2" X 3/4" for CC1113-XL Concrete Saw Core Cut by Diamond Products
$97.93
5
2501186 Retaining Ring, External 3/4" for CC1113-XL Concrete Saw Core Cut by Diamond Products
$4.99
6
2505083 Spring, Gas for CC1113-XL Concrete Saw Core Cut by Diamond Products
$195.03
7
2505084 Gas Spring Seal Protector for CC1113-XL Concrete Saw Core Cut by Diamond Products
$20.97
8
2506324 Cable Assembly for CC1113-XL Concrete Saw Core Cut by Diamond Products
$40.00
9
2400615 Set Collar, 3/4" for CC1113-XL Concrete Saw Core Cut by Diamond Products
$8.56
10
2900010 Lock Nut, 1/4-20 Nylon for CC1113-XL Concrete Saw Core Cut by Diamond Products
$2.99
11
2900009 Flat Washer, 1/4" SAE for CC1113-XL Concrete Saw Core Cut by Diamond Products
$2.99
12
2900392 Cap Screw, Hex Hd., 1/4-20 x 1-3/4" for CC1113-XL Concrete Saw Core Cut by Diamond Products
$2.99
13
2900003 Flat Washer, 3/4" SAE for CC1113-XL Concrete Saw Core Cut by Diamond Products
$3.99
14
2900259 Shoulder Screw, 1/2" x 3/4" (3/8-16) for CC1113-XL Concrete Saw Core Cut by Diamond Products
$6.31
15
2505087 Clevis, M12 for CC1113-XL Concrete Saw Core Cut by Diamond Products
$6.01
16
2900253 Shoulder Screw, 3/8 x 3/8" (5/16-18) for CC1113-XL Concrete Saw Core Cut by Diamond Products
$3.99
17
2900039 Lock Nut, 5/16-18 Nylon for CC1113-XL Concrete Saw Core Cut by Diamond Products
$2.99
View full details
