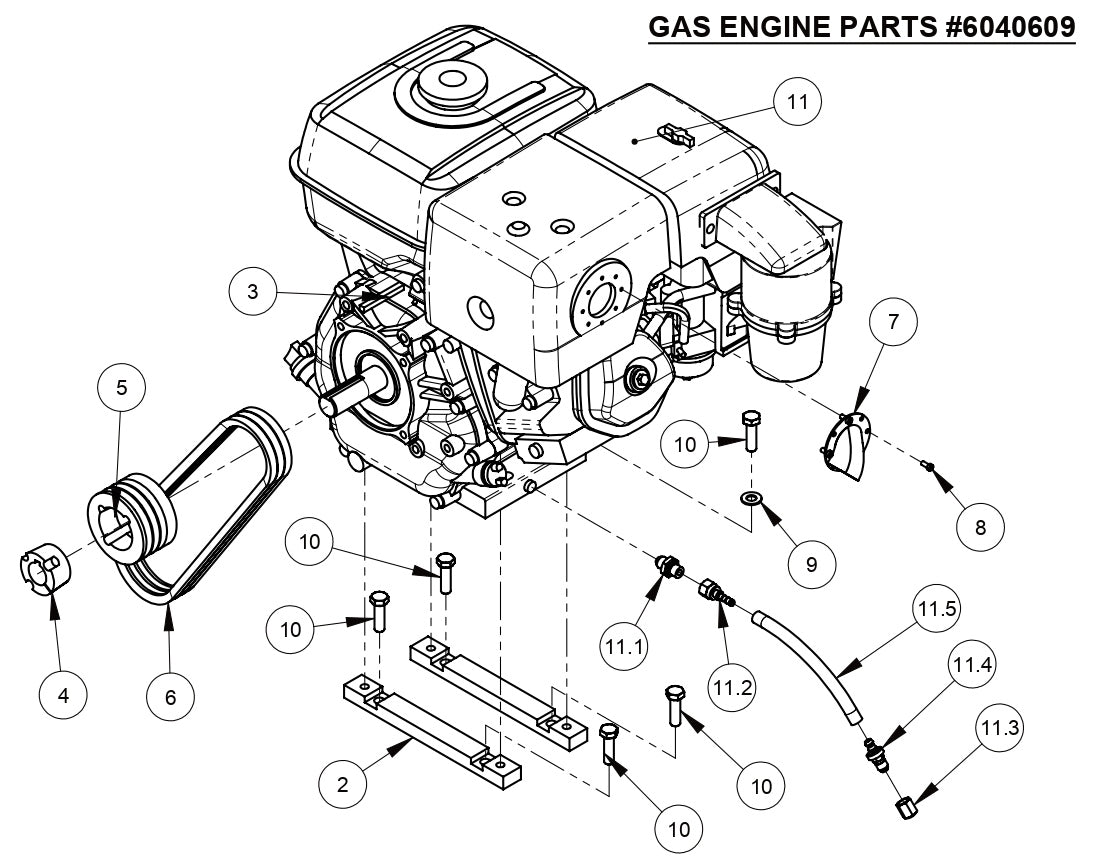

CC1113 Gas Engine Parts

CC1113 Gas Engine Parts

  • CC1113 Gas Engine Parts
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
2600116 Engine,11 HP Honda GX390 for CC1113-XL Concrete Saw Core Cut by Diamond Products
$1,708.80
2
6040707 Motor Mount Adapter for CC1113-XL Concrete Saw Core Cut by Diamond Products
$143.55
3
6048134 Key, 1/4" Sq. x 2-1/4" for CC1113-XL Concrete Saw Core Cut by Diamond Products
$3.99
4
2500028 Taper Bushing, 1" w/ Set Screws for CC1113-XL Concrete Saw Core Cut by Diamond Products
$49.50
5
2500024 Sheave, 3.15-3 Groove for CC1113-XL Concrete Saw Core Cut by Diamond Products
$134.64
7
2700554 Muffler Deflector, 11-13 HP Honda for CC1113-XL Concrete Saw Core Cut by Diamond Products
$32.28
8
2900206 Screw, Self Tapping, #8-32 x 3/8" for CC1113-XL Concrete Saw Core Cut by Diamond Products
$2.99
9
2900014 Flat Washer, 3/8" SAE for CC1113-XL Concrete Saw Core Cut by Diamond Products
$2.99
10
2900315 Cap Screw Hex Hd., M10-1.5 x 35 for CC1113-XL Concrete Saw Core Cut by Diamond Products
$3.99
11
6048029 Oil Drain Assembly for CC1113-XL Concrete Saw Core Cut by Diamond Products
$52.77
6
2500380 V-Belt, 3VX300 (Regular Cut) for CC1113-XL Concrete Saw Core Cut by Diamond Products
$49.76
11.1
3200539 Adapter, M12 x 1.5 M to 5/16" Male JIC for CC1113-XL Concrete Saw Core Cut by Diamond Products
$32.28
11.2
3200540 Fitting, 5/16" F. JIC to 1/4" Pushlock for CC1113-XL Concrete Saw Core Cut by Diamond Products
$12.91
11.3
3200006 Cap, 1/4" JIC for CC1113-XL Concrete Saw Core Cut by Diamond Products
$3.99
11.4
3200040 Fitting, 1/4" M. JIC to 1/4" Push Lock for CC1113-XL Concrete Saw Core Cut by Diamond Products
$11.95
11.5
6048289 1/4" x 6.00" Oil Drain Hose for CC1113-XL Concrete Saw Core Cut by Diamond Products
Call for Price call for price call for price
6
2500034 V-Belt, 3VX315 (Up-Cut) for CC1113-XL Concrete Saw Core Cut by Diamond Products
$35.51
