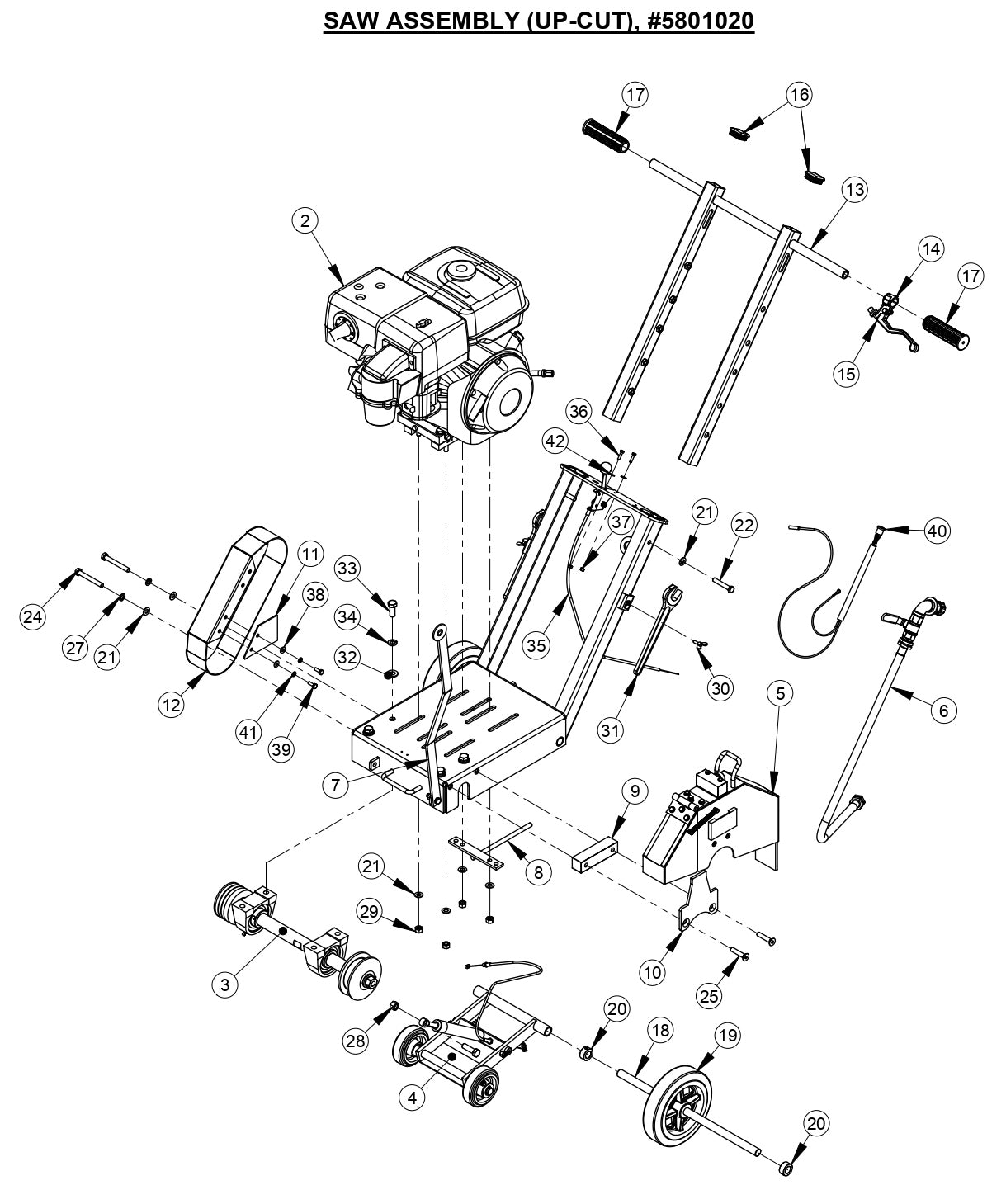

CC1113 Saw Assembly (up-cut) Parts

CC1113 Saw Assembly (up-cut) Parts

  • CC1113 Saw Assembly (up-cut)
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
6040702 Frame Weldment for CC1113-XL Concrete Saw Core Cut by Diamond Products
$768.24
2
6040618 Gas Engine Parts for CC1113-XL Concrete Saw Core Cut by Diamond Products
Call for Price call for price call for price
3
6040610 Blade Shaft Assembly for CC1113-XL Concrete Saw Core Cut by Diamond Products
$445.50
4
6040708 Front Axle Assembly for CC1113-XL Concrete Saw Core Cut by Diamond Products
$705.87
6
6040611 Hose Assembly with Water Valve for CC1113-XL Concrete Saw Core Cut by Diamond Products
Call for Price call for price call for price
7
6048279 Pointer Assembly for CC1113-XL Concrete Saw Core Cut by Diamond Products
$73.12
8
6040613 Shaft, Belt Adjustment for CC1113-XL Concrete Saw Core Cut by Diamond Products
$48.08
9
6040713 Blade Guard Spacer for CC1113-XL Concrete Saw Core Cut by Diamond Products
$91.54
11
6040704 Plate, Belt Guard for CC1113-XL Concrete Saw Core Cut by Diamond Products
$22.50
12
6040718 Belt Guard Weldment for CC1113-XL Concrete Saw Core Cut by Diamond Products
$241.56
13
6040706 Sliding Handle Weldment for CC1113-XL Concrete Saw Core Cut by Diamond Products
$223.74
14
6010618 Bracket, Handlebar Lever for CC1113-XL Concrete Saw Core Cut by Diamond Products
Call for Price call for price call for price
15
6010619 Lever, Handlebar for CC1113-XL Concrete Saw Core Cut by Diamond Products
$101.76
16
2503925 Cap, 1-1/4" Sq. Tube for CC1113-XL Concrete Saw Core Cut by Diamond Products
$6.99
17
2500001 7/8" Handle Grip for CC1113-XL Concrete Saw Core Cut by Diamond Products
$13.99
18
6040712 Rear Axle for CC1113-XL Concrete Saw Core Cut by Diamond Products
$53.05
19
2503754 Wheel 8" X 2" X 3/4" for CC1113-XL Concrete Saw Core Cut by Diamond Products
$55.96
20
2400615 Set Collar, 3/4" for CC1113-XL Concrete Saw Core Cut by Diamond Products
$8.56
21
2900014 Flat Washer, 3/8" SAE for CC1113-XL Concrete Saw Core Cut by Diamond Products
$2.99
22
2900079 Cap Screw, Hex Hd., 3/8-16 x 2-1/4" for CC1113-XL Concrete Saw Core Cut by Diamond Products
$3.99
23
2900056 Socket Head Set Screw 1/4-20 x 1/4" for CC1113-XL Concrete Saw Core Cut by Diamond Products
$2.99
24
2900319 Cap Screw, Hex Hd., M10 x 80mm for CC1113-XL Concrete Saw Core Cut by Diamond Products
$4.99
25
2901409 Cap Screw, Flat Hd. Soc., M10 x 50mm for CC1113-XL Concrete Saw Core Cut by Diamond Products
$6.99
26
2900331 Cap Screw, Hex Hd., M12 x 40mm for CC1113-XL Concrete Saw Core Cut by Diamond Products
$4.99
27
2900321 Lock Washer, M10 Split for CC1113-XL Concrete Saw Core Cut by Diamond Products
$2.99
28
2900327 Lock Nut, M12 Nylon for CC1113-XL Concrete Saw Core Cut by Diamond Products
$2.99
29
2900304 Lock Nut, M10 Nylon for CC1113-XL Concrete Saw Core Cut by Diamond Products
$2.99
30
2900307 Wing Screw, M6 x 16mm for CC1113-XL Concrete Saw Core Cut by Diamond Products
$7.43
31
2500256 Wrench Head for CC1113-XL Concrete Saw Core Cut by Diamond Products
$47.35
32
2900058 Flat Washer, 1/2" SAE for CC1113-XL Concrete Saw Core Cut by Diamond Products
$3.99
33
2900025 Cap Screw, Hex Hd., 1/2-13 x 1-1/4" for CC1113-XL Concrete Saw Core Cut by Diamond Products
$3.99
34
2900084 Lock Washer, 1/2" Split for CC1113-XL Concrete Saw Core Cut by Diamond Products
$2.99
35
2500810 Throttle Control, 36" for CC1113-XL Concrete Saw Core Cut by Diamond Products
$29.82
36
2900309 Cap Screw, Hex Hd., M5 x 20mm for CC1113-XL Concrete Saw Core Cut by Diamond Products
$2.99
37
2900301 Lock Nut, M5 Nylon for CC1113-XL Concrete Saw Core Cut by Diamond Products
$2.99
38
2900009 Flat Washer, 1/4" SAE for CC1113-XL Concrete Saw Core Cut by Diamond Products
$2.99
39
2900144 Cap Screw, Hex Hd., 1/4-20 x 3/4" for CC1113-XL Concrete Saw Core Cut by Diamond Products
$2.99
40
6048789 Wire Harness, Stop Switch for CC1113-XL Concrete Saw Core Cut by Diamond Products
$103.15
41
2900024 Lock Washer, 1/4" Split for CC1113-XL Concrete Saw Core Cut by Diamond Products
$2.99
42
2900016 Flat Washer, #10 USS for CC1113-XL Concrete Saw Core Cut by Diamond Products
$2.99
5
6049031 14" Blade Guard Assembly for CC1113-XL Concrete Saw Core Cut by Diamond Products
$657.60
10
6030699 Tapered Guard Mount for CC1113-XL Concrete Saw Core Cut by Diamond Products
$52.38
