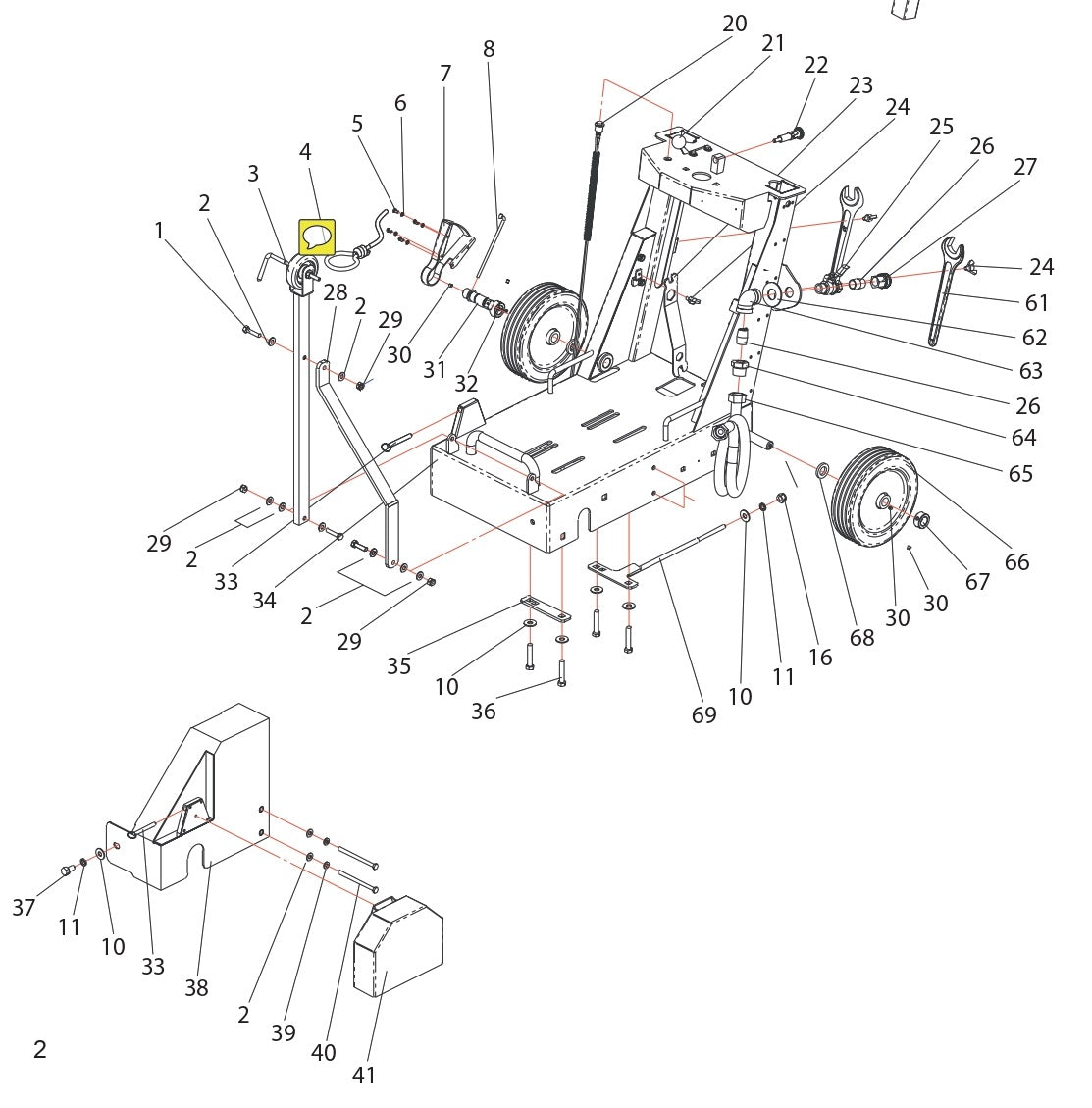

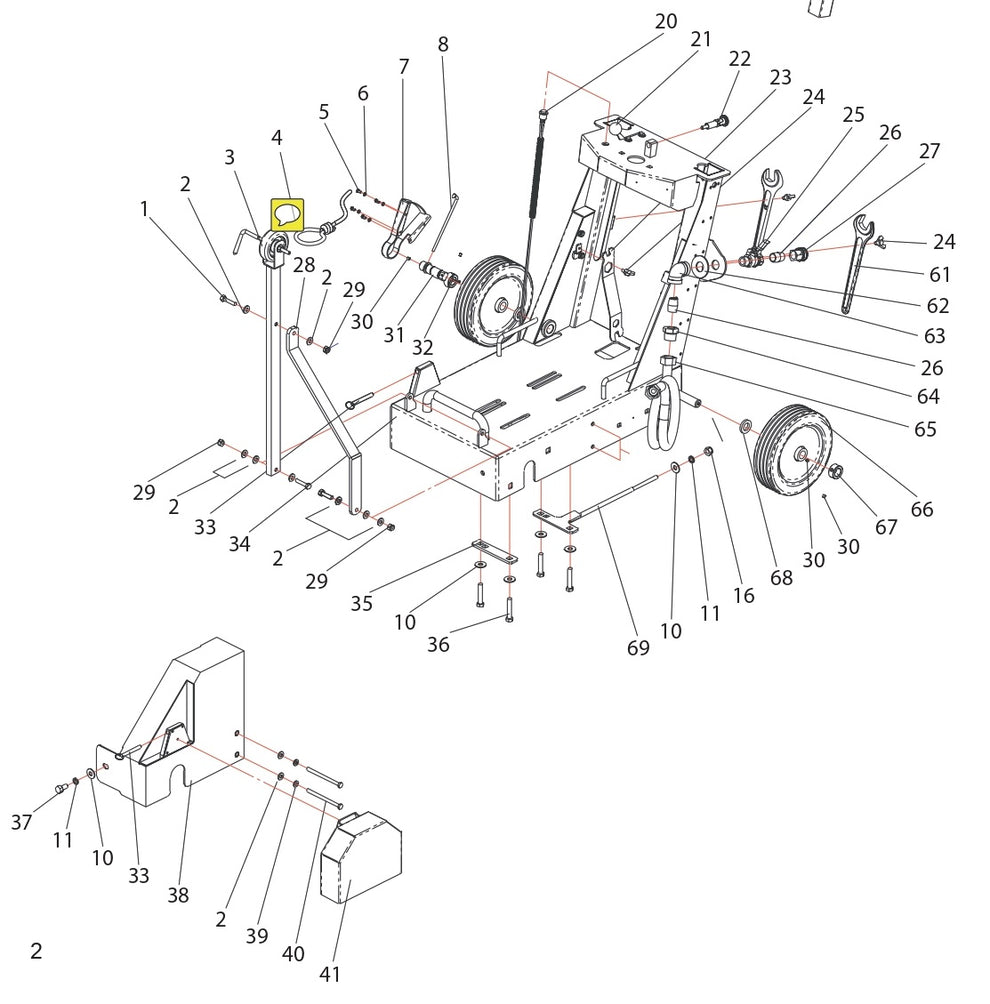

CC1200 Frame Weldment Assembly

CC1200 Frame Weldment Assembly

Skip to product information
1 of 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
2900760 Capscrew ,M8-35L for CC1200 Concrete Saw Core Cut by Diamond Products
$3.99
2
2900022 Washer ,5/16” Flat for CC1200 Concrete Saw Core Cut by Diamond Products
$2.99
3
6043403 Pointer Bar Straight for CC1200 Concrete Saw Core Cut by Diamond Products
$108.00
4
6043404 Point Rope for CC1200 Concrete Saw Core Cut by Diamond Products
$7.12
5
2900761 Screw ,M4-8L for CC1200 Concrete Saw Core Cut by Diamond Products
Call for Price call for price call for price
6
2900762 Spring Washer ,M4 for CC1200 Concrete Saw Core Cut by Diamond Products
$2.99
7
6043407 Scale of depth indicator for CC1200 Concrete Saw Core Cut by Diamond Products
$27.98
8
6043408 Depth indicator for CC1200 Concrete Saw Core Cut by Diamond Products
$10.76
20
2800001 Push Button Stop Switch for CC1200 Concrete Saw Core Cut by Diamond Products
$77.30
20
6048789 Harness Wire / w Button for CC1200 Concrete Saw Core Cut by Diamond Products
$103.15
21
2502505 Throttle control for CC1200 Concrete Saw Core Cut by Diamond Products
$27.98
22
6043422 Easy Lock for CC1200 Concrete Saw Core Cut by Diamond Products
$50.72
23
6043423 Wrench ,3rd for CC1200 Concrete Saw Core Cut by Diamond Products
$17.82
24
2900307 Wing Screw ,M6-16L for CC1200 Concrete Saw Core Cut by Diamond Products
$7.43
25
3200027 Water Valve for CC1200 Concrete Saw Core Cut by Diamond Products
$55.99
26
3200008 Close Nipple , 1/2" NPT for CC1200 Concrete Saw Core Cut by Diamond Products
$10.40
61
2500256 Wrench ,27w for CC1200 Concrete Saw Core Cut by Diamond Products
$47.35
62
2900295 Washer,1” US for CC1200 Concrete Saw Core Cut by Diamond Products
$3.99
63
3200209 1/2" F Pipe Elbow , 90 Degree for CC1200 Concrete Saw Core Cut by Diamond Products
$10.21
64
3200155 Fitting, 1/2"M. Pipe to 3/4"M. Garden for CC1200 Concrete Saw Core Cut by Diamond Products
$11.27
65
6011055 Hose Assembly for CC1200 Concrete Saw Core Cut by Diamond Products
$60.40
66
6043466 Rear Wheel for CC1200 Concrete Saw Core Cut by Diamond Products
$62.26
67
6043467 Set Collar for CC1200 Concrete Saw Core Cut by Diamond Products
$16.89
30
2900576 Setscrew, Soc .Hd., M6-8L for CC1200 Concrete Saw Core Cut by Diamond Products
$2.99
68
6043468 Rear Wheel Spacer Washer for CC1200 Concrete Saw Core Cut by Diamond Products
$9.60
16
2900304 Lock Nut ,M10/use 2900033 for 604346 for CC1200 Concrete Saw Core Cut by Diamond Products
$2.99
11
2900321 Spring Washer ,M10 for CC1200 Concrete Saw Core Cut by Diamond Products
$2.99
10
2900014 Washer ,3/8” Flat for CC1200 Concrete Saw Core Cut by Diamond Products
$2.99
69
6043469 Belt Adjustment Shaft 3/8"-16 Thread for CC1200 Concrete Saw Core Cut by Diamond Products
$52.73
29
2900303 Lock Nut Nylon ,M8 for CC1200 Concrete Saw Core Cut by Diamond Products
$2.99
33
6043433 Lock Pin ,Ø8*65L for CC1200 Concrete Saw Core Cut by Diamond Products
$12.36
34
6043434 Frame for CC1200 Concrete Saw Core Cut by Diamond Products
Call for Price call for price call for price
35
6043435 Bracket for CC1200 Concrete Saw Core Cut by Diamond Products
$26.90
36
2900318 Cap screw, Hex Hd. M 10-50L for CC1200 Concrete Saw Core Cut by Diamond Products
$3.99
37
2900314 Cap screw ,Hex Hd.,M10-20L for CC1200 Concrete Saw Core Cut by Diamond Products
$3.99
38
6043438 Belt Guard for CC1200 Concrete Saw Core Cut by Diamond Products
$248.49
39
2900763 Washer ,M8 Spring for CC1200 Concrete Saw Core Cut by Diamond Products
$2.99
40
2900635 Capscrew ,Hex Hd.,M8-120L for CC1200 Concrete Saw Core Cut by Diamond Products
$4.99
41
6043441 Shaft Guard for CC1200 Concrete Saw Core Cut by Diamond Products
$140.58
27
3200022 Fitting, 1/2" F. Pipe to 3/4" F. Garden fits Core Cut CC1300XL Concrete Floor Saw by Diamond Products
$11.99
