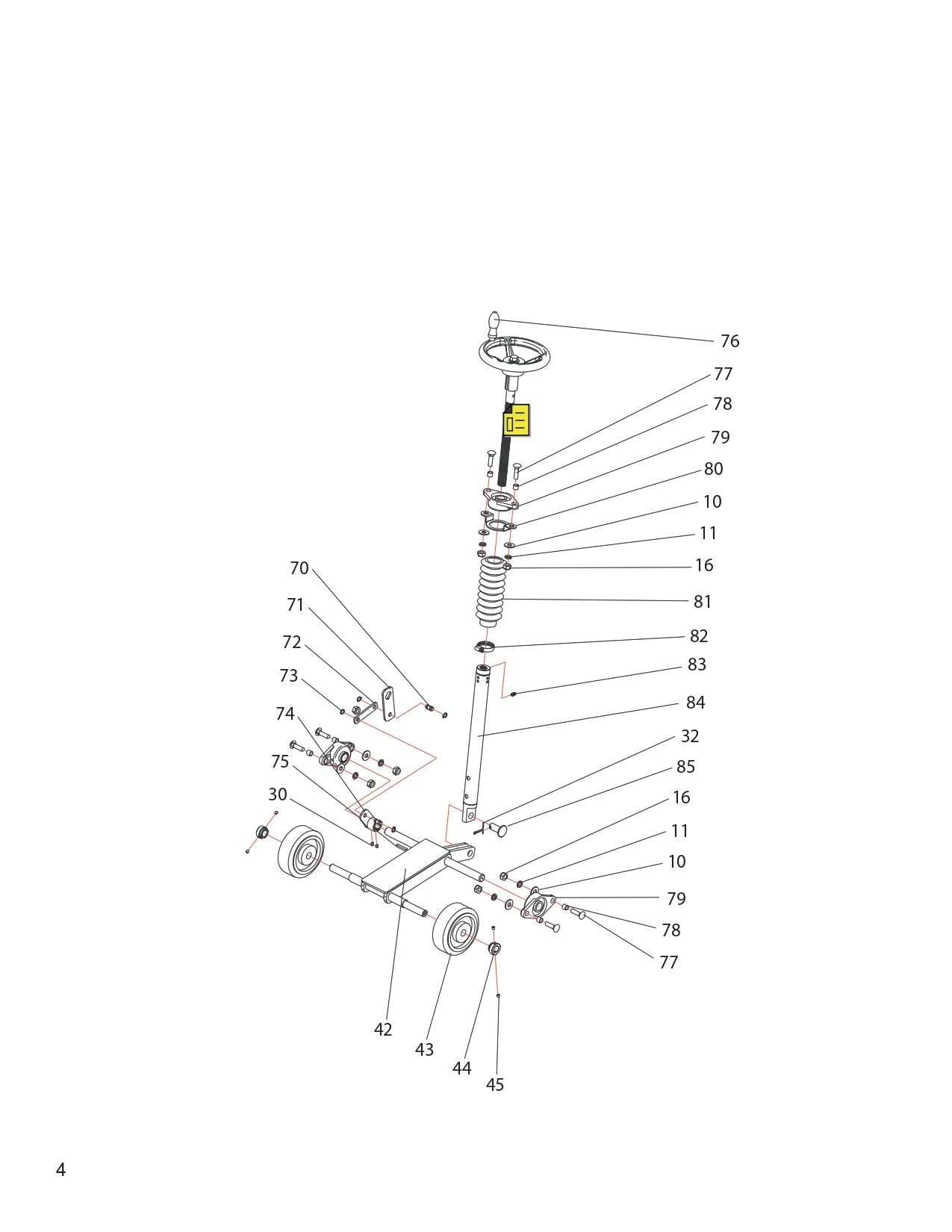

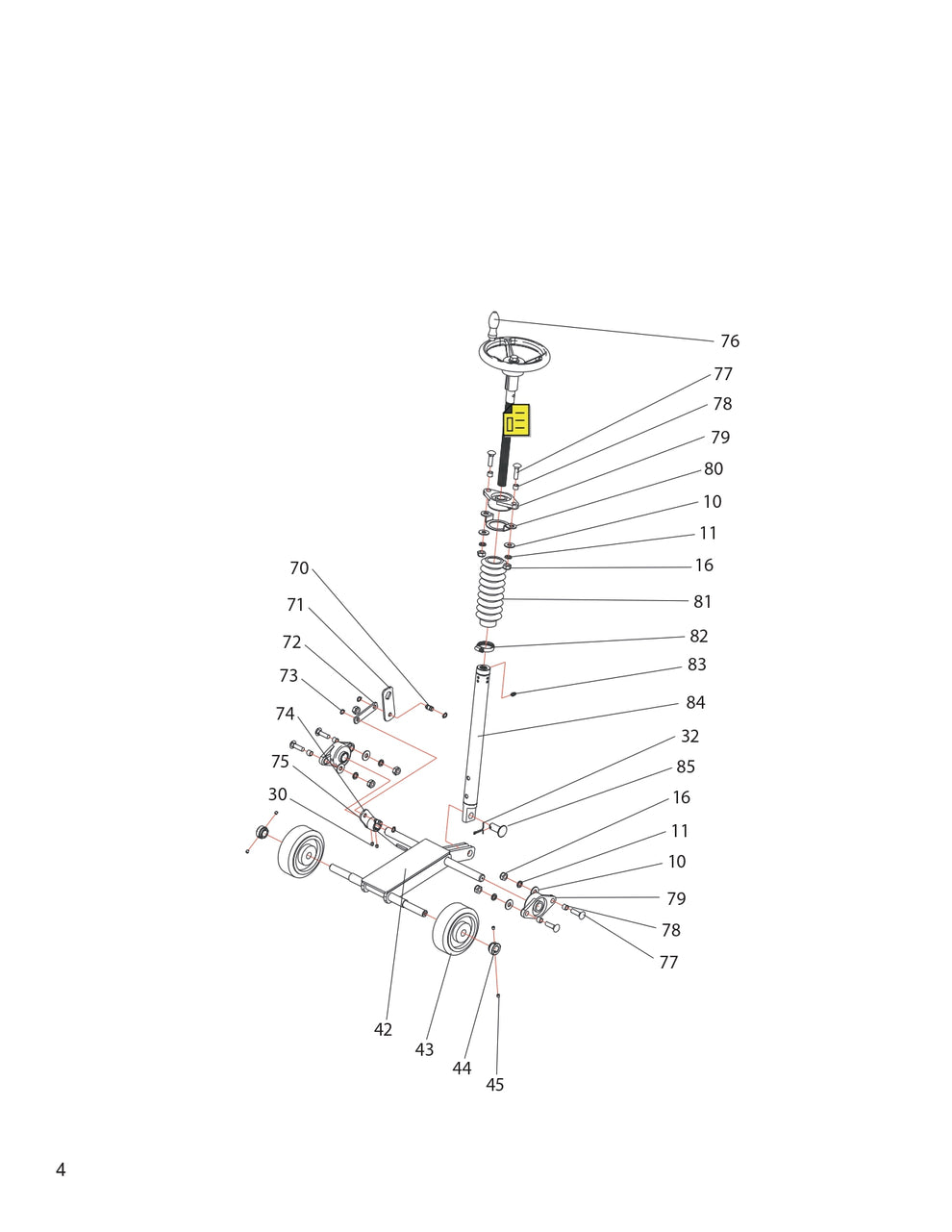

CC1200 Screw feed and Front axle assembly

CC1200 Screw feed and Front axle assembly

  • CC1200 Screw feed and Front axle assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
70
6043470 Pin for CC1200 Concrete Saw Core Cut by Diamond Products
$6.70
71
6043471 Upper linkage for depth indicator for CC1200 Concrete Saw Core Cut by Diamond Products
$15.07
72
6043472 Lower linkage for depth indicator for CC1200 Concrete Saw Core Cut by Diamond Products
$16.14
73
6043473 Snap Ring for CC1200 Concrete Saw Core Cut by Diamond Products
$3.99
74
6043474 Lever for depth indicator for CC1200 Concrete Saw Core Cut by Diamond Products
$38.74
75
6043475 Pin ,5-5-30L for CC1200 Concrete Saw Core Cut by Diamond Products
$8.00
76
6043476 Handwheel for CC1200 Concrete Saw Core Cut by Diamond Products
$385.11
42
6043442 Front Axle Weldment for CC1200 Concrete Saw Core Cut by Diamond Products
Call for Price call for price call for price
43
6043443 Wheel ,4" Diameter for CC1200 Concrete Saw Core Cut by Diamond Products
$179.60
44
6043444 Set collar for CC1200 Concrete Saw Core Cut by Diamond Products
$24.75
45
2900576 Setscrew, Soc .Hd., M6-8L for CC1200 Concrete Saw Core Cut by Diamond Products
$2.99
77
2903037 Carriage Screw ,3/8"x 1-1/4” for CC1200 Concrete Saw Core Cut by Diamond Products
$4.99
78
6043478 Screw Tube ,10t*Ø9.5*Ø12 for CC1200 Concrete Saw Core Cut by Diamond Products
$7.92
79
6043479 Flange Block Bearing ,UCFL204 for CC1200 Concrete Saw Core Cut by Diamond Products
$55.79
80
6043480 Below Mount Washer for CC1200 Concrete Saw Core Cut by Diamond Products
$24.75
10
2900014 Washer ,3/8” Flat for CC1200 Concrete Saw Core Cut by Diamond Products
$2.99
11
2900321 Spring Washer ,M10 for CC1200 Concrete Saw Core Cut by Diamond Products
$2.99
16
2900304 Lock Nut ,M10/use 2900033 for 604346 for CC1200 Concrete Saw Core Cut by Diamond Products
$2.99
81
6043481 Bellow ,25P;Ø40*Ø64*450L(MAX) for CC1200 Concrete Saw Core Cut by Diamond Products
$139.59
82
3200096 Clamp ,Ø40 for CC1200 Concrete Saw Core Cut by Diamond Products
$11.71
83
2900706 Grease Fitting ,1/4-28UNF for CC1200 Concrete Saw Core Cut by Diamond Products
$4.99
84
6043484 Adjustment Shaft without fitting for CC1200 Concrete Saw Core Cut by Diamond Products
$171.27
32
2900055 Cotter Pin ,1/8” x 1” for CC1200 Concrete Saw Core Cut by Diamond Products
$2.99
85
6043439 Clevis Pin ,Ø16*Ø30*39H for CC1200 Concrete Saw Core Cut by Diamond Products
$20.59
30
2900576 Set Screw, Soc. Hd., M6-1.0 x 8mm for CC1200XL Concrete Saw Core Cut by Diamond Products
$2.99
