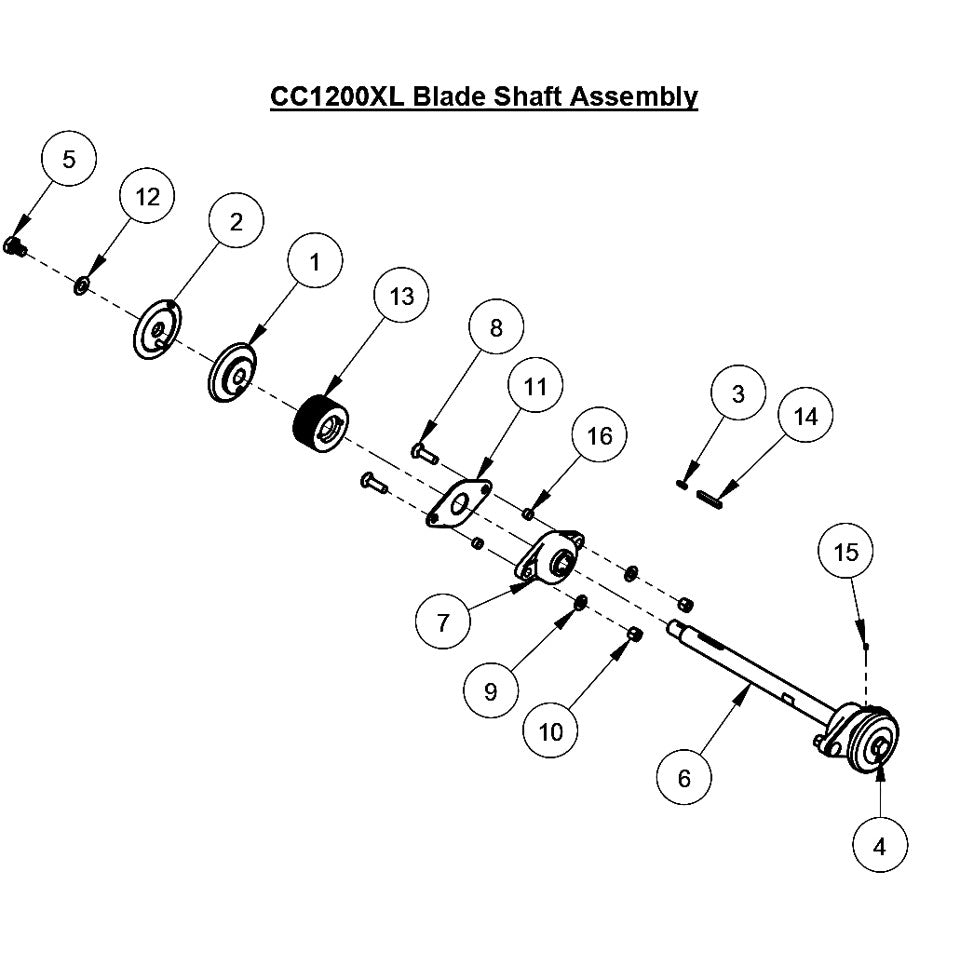

CC1200XL Blade Shaft Assembly

CC1200XL Blade Shaft Assembly

  • CC1200XL Blade Shaft Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
6043457 Inner flange for CC1200XL Concrete Saw Core Cut by Diamond Products
$110.00
2
6043458 Outer flange w/pin assembly for CC1200XL Concrete Saw Core Cut by Diamond Products
$79.63
3
6043448 Key, 5 Sq. x 20mm for CC1200XL Concrete Saw Core Cut by Diamond Products
$6.73
4
2903210 Cap Screw, Hex Hd., 5/8-11 x 1" LH for CC1200XL Concrete Saw Core Cut by Diamond Products
$52.22
5
2903209 Cap Screw, Hex Hd., 5/8-11 x 1" for CC1200XL Concrete Saw Core Cut by Diamond Products
$41.38
6
6043446 Blade shaft for CC1200XL Concrete Saw Core Cut by Diamond Products
$139.20
7
2504038 Flange Bl. Bearing UCFL207-20 for CC1200XL Concrete Saw Core Cut by Diamond Products
$90.16
8
2900764 Carriage Bolt, 1/2-13 x 1-3/4" for CC1200XL Concrete Saw Core Cut by Diamond Products
$4.99
9
2900058 Flat Washer, 1/2" SAE for CC1200XL Concrete Saw Core Cut by Diamond Products
$3.99
10
2900026 Lock Nut, 1/2-13 Nylon for CC1200XL Concrete Saw Core Cut by Diamond Products
$2.99
11
6043454 Bearing spacer for CC1200XL Concrete Saw Core Cut by Diamond Products
$24.24
12
2900002 Flat Washer, 5/8" SAE for CC1200XL Concrete Saw Core Cut by Diamond Products
$2.99
13
6043456 1-1/4" (31.75mm) Bore micro-V pulley (D90mm) for CC1200XL Concrete Saw Core Cut by Diamond Products
$343.53
14
6043447 Key, 8 x 7 x 56mm for CC1200XL Concrete Saw Core Cut by Diamond Products
$10.76
15
2900576 Set Screw, Soc. Hd., M6-1.0 x 8mm for CC1200XL Concrete Saw Core Cut by Diamond Products
$2.99
16
6043453 D16 d12.7 X 10L Bushing for CC1200XL Concrete Saw Core Cut by Diamond Products
$10.35
