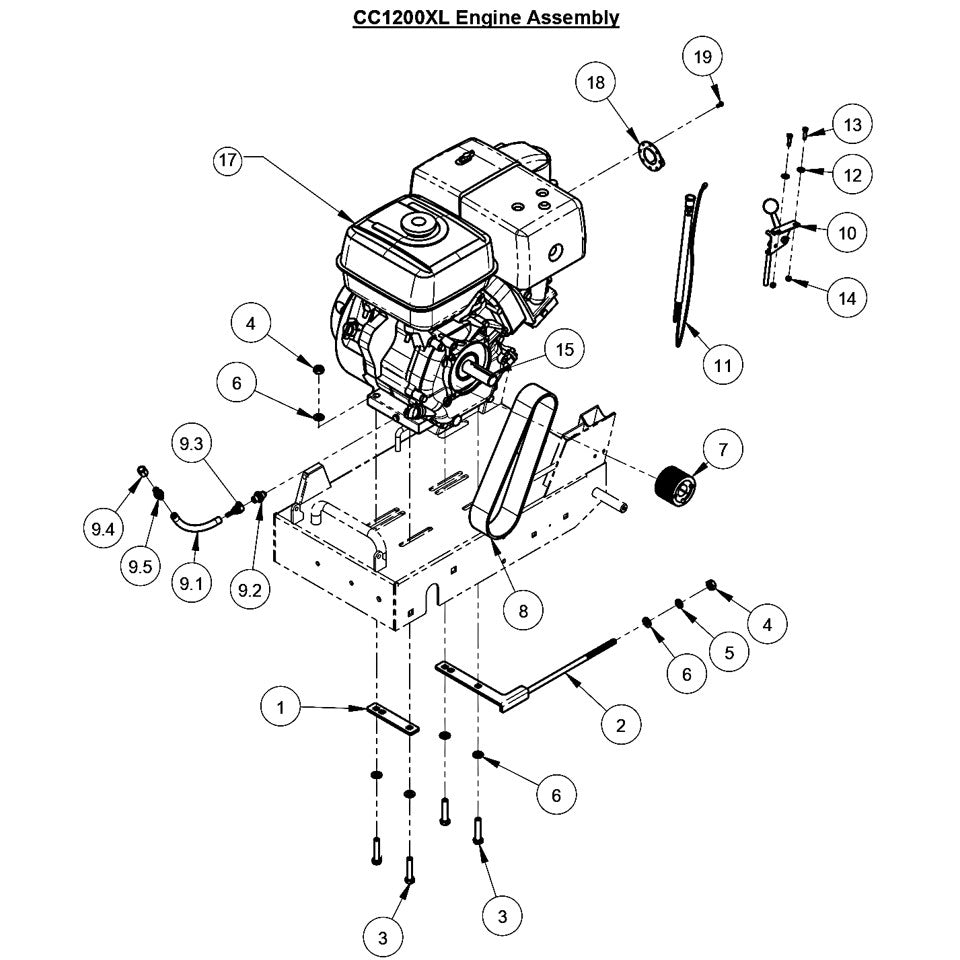

CC1200XL Engine Assembly

CC1200XL Engine Assembly

  • CC1200XL Engine Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
6043435 Belt adjustment bracket for CC1200XL Concrete Saw Core Cut by Diamond Products
$26.90
2
6043561 Motor tensioning plate for CC1200XL Concrete Saw Core Cut by Diamond Products
$63.49
3
2900318 Cap Screw, Hex Hd., M10-1.5 x 50mm for CC1200XL Concrete Saw Core Cut by Diamond Products
$3.99
4
2900325 Hex Nut, M10-1.5 for CC1200XL Concrete Saw Core Cut by Diamond Products
$2.99
5
2900321 Lock Washer, M10 Split for CC1200XL Concrete Saw Core Cut by Diamond Products
$2.99
6
2901356 Flat Washer, M10 for CC1200XL Concrete Saw Core Cut by Diamond Products
$2.99
7
6043417 1" (25.4mm) Bore micro-V pulley (D65mm) for CC1200XL Concrete Saw Core Cut by Diamond Products
$288.09
8
2502000 Micro-V Belt, 280J20 for CC1200XL Concrete Saw Core Cut by Diamond Products
$106.00
9
6048029 Oil Drain Assembly for CC1200XL Concrete Saw Core Cut by Diamond Products
$52.77
9.1
6048289 1/4" x 6.00" Oil Drain Hose for CC1200XL Concrete Saw Core Cut by Diamond Products
Call for Price call for price call for price
9.2
3200539 Adapter, M12x1.5 Male to 5/16" M. JIC for CC1200XL Concrete Saw Core Cut by Diamond Products
$32.28
9.3
3200540 Fitting, 5/16" F. JIC to 1/4" Pushlock for CC1200XL Concrete Saw Core Cut by Diamond Products
$12.91
9.4
3200006 Cap, 1/4" JIC for CC1200XL Concrete Saw Core Cut by Diamond Products
$3.99
9.5
3200040 Fitting, 1/4" M. JIC to 1/4" Push Lock for CC1200XL Concrete Saw Core Cut by Diamond Products
$11.95
10
2502505 Throttle Control, 20" for CC1200XL Concrete Saw Core Cut by Diamond Products
$27.98
11
6048789 Wire Harness, Stop Switch for CC1200XL Concrete Saw Core Cut by Diamond Products
$103.15
12
2900016 Flat Washer, #10 USS for CC1200XL Concrete Saw Core Cut by Diamond Products
$2.99
13
2900309 Cap Screw, Hex Hd., M5-0.8 x 20mm for CC1200XL Concrete Saw Core Cut by Diamond Products
$2.99
14
2900301 Lock Nut, M5-0.8 Nylon Insert for CC1200XL Concrete Saw Core Cut by Diamond Products
$2.99
15
6048134 Key, 1/4" Sq. x 2-1/4" for CC1200XL Concrete Saw Core Cut by Diamond Products
$3.99
17
2600160 Engine, 8HP Honda GX270 for CC1200XL Concrete Saw Core Cut by Diamond Products
$1,587.60
17
2600116 Engine, 11HP Honda GX390 for CC1200XL Concrete Saw Core Cut by Diamond Products
$1,708.80
17
2600689 Engine, 420cc Briggs for CC1200XL Concrete Saw Core Cut by Diamond Products
$840.00
17
2601711 Engine, 9HP Lifan for CC1200XL Concrete Saw Core Cut by Diamond Products
$748.44
17
2601707 Engine, 15HP Lifan for CC1200XL Concrete Saw Core Cut by Diamond Products
$811.80
18
2700554 Muffler Deflector, Honda & Lifan for CC1200XL Concrete Saw Core Cut by Diamond Products
$32.28
18
2703419 Muffler Deflector, Briggs for CC1200XL Concrete Saw Core Cut by Diamond Products
$24.95
19
2900206 Screw, Self Tapping, #8-32 x 3/8", Honda & Lifan for CC1200XL Concrete Saw Core Cut by Diamond Products
$2.99
19
2703420 Screw for Muffler Deflector, Briggs for CC1200XL Concrete Saw Core Cut by Diamond Products
$11.31
