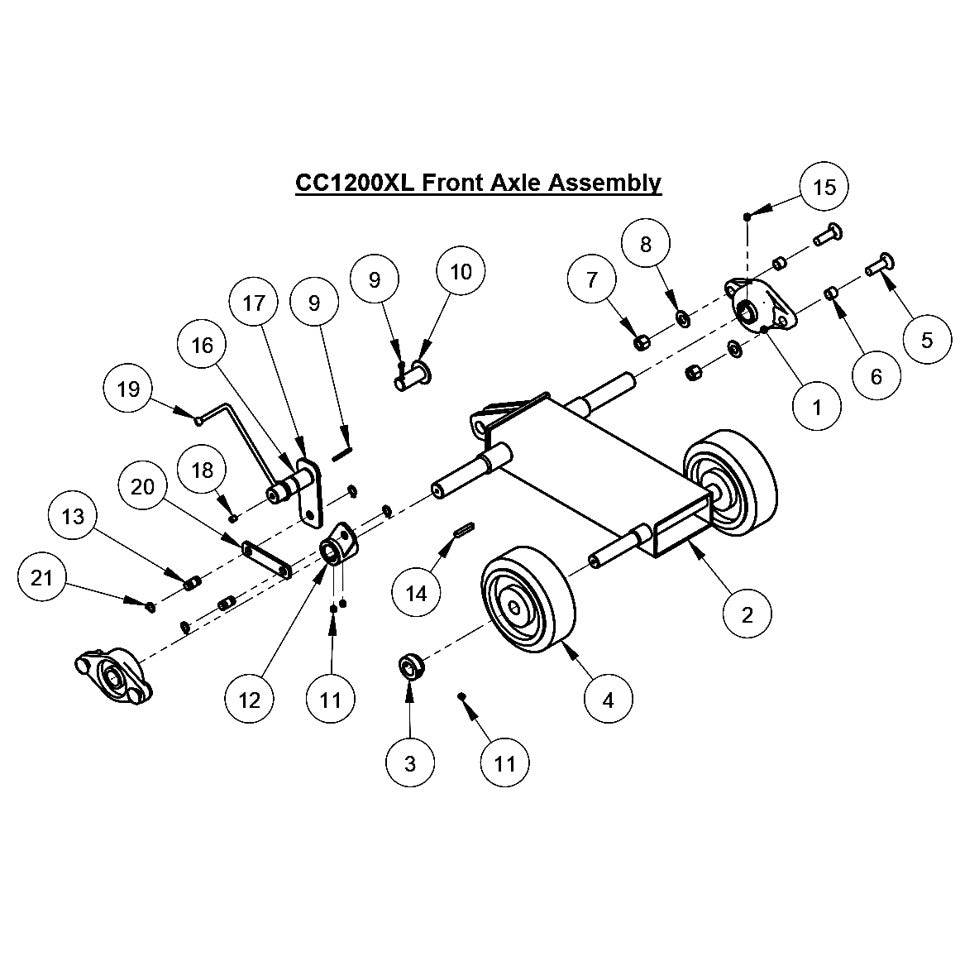

CC1200XL Front Axle Assembly

CC1200XL Front Axle Assembly

  • CC1200XL Front Axle Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
6043479 UCFL204-12 3/4" Flange caster bearing for CC1200XL Concrete Saw Core Cut by Diamond Products
$55.79
2
6043559 Front Axle Weldment for CC1200XL Concrete Saw Core Cut by Diamond Products
$300.96
3
6043444 d17 Set collar for CC1200XL Concrete Saw Core Cut by Diamond Products
$24.75
4
6043443 4" (D125) d17 X 55W Wheel for CC1200XL Concrete Saw Core Cut by Diamond Products
$179.60
5
2900046 Carriage Bolt, 3/8-16 x 1-1/4" for CC1200XL Concrete Saw Core Cut by Diamond Products
$3.99
6
6043478 D12 d9.5 X 10L Bushing for CC1200XL Concrete Saw Core Cut by Diamond Products
$7.92
7
2900018 Locknut, 3/8-16, Nylon for CC1200XL Concrete Saw Core Cut by Diamond Products
$2.99
8
2900014 Flat Washer, 3/8" SAE for CC1200XL Concrete Saw Core Cut by Diamond Products
$2.99
9
2900004 Cotter Pin, 1/8" x 1" for CC1200XL Concrete Saw Core Cut by Diamond Products
$2.99
10
6043439 Clevis Pin, 16 x 39mm for CC1200XL Concrete Saw Core Cut by Diamond Products
$20.59
11
2903245 Set Screw, Soc. Hd., M6-1.0 x 6mm for CC1200XL Concrete Saw Core Cut by Diamond Products
$3.99
12
6043474 Carriage reference fixture for CC1200XL Concrete Saw Core Cut by Diamond Products
$38.74
13
6043470 Pin for CC1200XL Concrete Saw Core Cut by Diamond Products
$6.70
14
6043475 Key, 5 Sq. x 35mm for CC1200XL Concrete Saw Core Cut by Diamond Products
$8.00
15
2900381 Set Screw, Soc. Hd., 1/4-28 x 1/4" for CC1200XL Concrete Saw Core Cut by Diamond Products
$2.99
16
6043431 Axle Depth Indicator for CC1200XL Concrete Saw Core Cut by Diamond Products
$33.36
17
6043471 Upper linkage for depth indicator for CC1200XL Concrete Saw Core Cut by Diamond Products
$15.07
18
2900576 Set Screw, Soc. Hd., M6-1.0 x 8mm for CC1200XL Concrete Saw Core Cut by Diamond Products
$2.99
19
6043563 Depth Pointer for CC1200XL Concrete Saw Core Cut by Diamond Products
$26.90
20
6043472 Lower linkage for depth indicator for CC1200XL Concrete Saw Core Cut by Diamond Products
$16.14
21
6043473 Retaining Ring, M10 for CC1200XL Concrete Saw Core Cut by Diamond Products
$3.99
