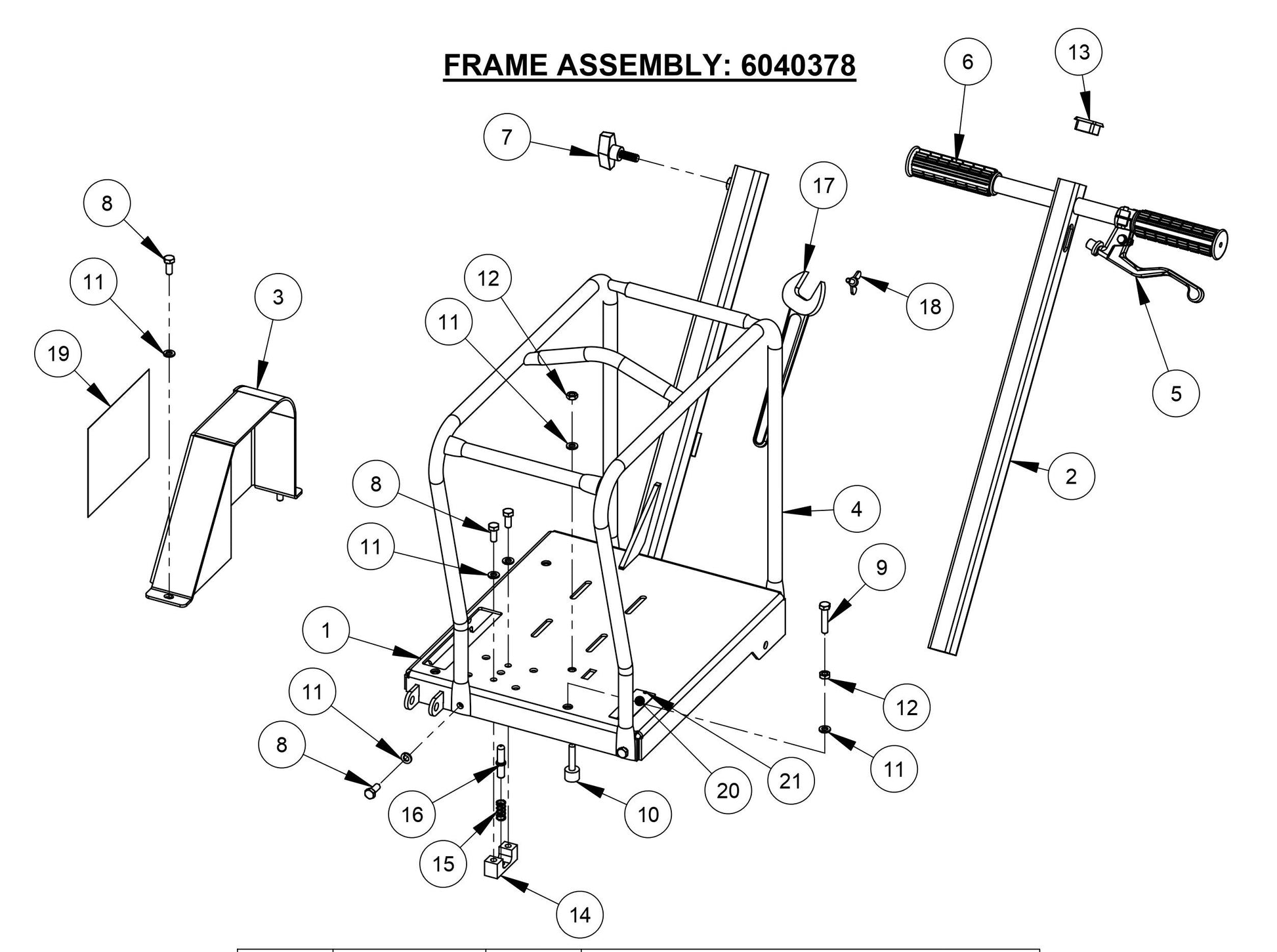

CC125BXL-EE6 Frame Assembly Parts

CC125BXL-EE6 Frame Assembly Parts

  • CC125XL-EE (Frame Assembly)
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
6040748 Frame Weldment For CC150XL-EE Concrete Saw Core Cut By Diamond Products
$506.40
2
6040749 Handle Weldment For CC150XL-EE Concrete Saw Core Cut By Diamond Products
$99.88
4
6040615 Lift Cage for CC150XL-EE Concrete Saw Core Cut by Diamond Products
$304.80
5
6010619 Bracket, Handlebar Lever for CC150XL-EE Concrete Saw Core Cut by Diamond Products
$101.76
6
2500001 7/8" Handle Grip for CC150XL-EE Concrete Saw Core Cut by Diamond Products
$13.99
7
2503942 T Handle Locking Knob /w 3/8-16 Stud for CC150XL-EE Concrete Saw Core Cut by Diamond Products
$19.74
8
2900019 Cap Screw Hex Hd. for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
9
2900508 Cap Screw, Hex Hd., 5/16-18 x 1-1/2" for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
10
2504808 Bumper w/ 5/16-18 threaded stud for CC150XL-EE Concrete Saw Core Cut by Diamond Products
$39.02
11
2900031 Lock Washer 5/16" Split for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
12
2900283 Jam Nut, 5/16-18 for CC150XL-EE Concrete Saw Core Cut by Diamond Products
$2.99
13
2503823 Plug, 1-1/4 Square Tube for CC150XL-EE Concrete Saw Core Cut by Diamond Products
$3.99
14
6040560 Blade Stop Block for CC150XL-EE Concrete Saw Core Cut by Diamond Products
$28.65
15
2501192 Spring, Comp. .48 x .042 x 1.00 Long for CC150XL-EE Concrete Saw Core Cut by Diamond Products
$7.54
16
6040561 Blade Stop for CC150XL-EE Concrete Saw Core Cut by Diamond Products
$16.56
17
2500256 Size 27 open-end wrench for CCE0900 Concrete Saw Core Cut by Diamond Products
$47.35
18
2900307 Wing Screw, M6 x 16mm for CC150XL-EE Concrete Saw Core Cut by Diamond Products
$7.43
20
1800169 Serial Number Plate US US for CC5555-3 Concrete Saw Core Cut by Diamond Products
$21.24
21
2900053 Rivet, 3/32" Dia. for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
3
6040755 Guard, Belt for CC150XL-EE Concrete Saw Core Cut by Diamond Products
$328.68
19
Diamond Products CC150XL CORE CUT DECAL 1802419
$24.96
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.

Do you accept returns?

Yes, most new, uninstalled items can be returned under our standard policy. Please see our Returns & Refunds Policy for eligibility, timeframes, and any exceptions.
